Sauder 423032 - Step 2: Securing Ends to Bottom Panel

Step 2
423032 www.sauder.com/servicesPage 6
å

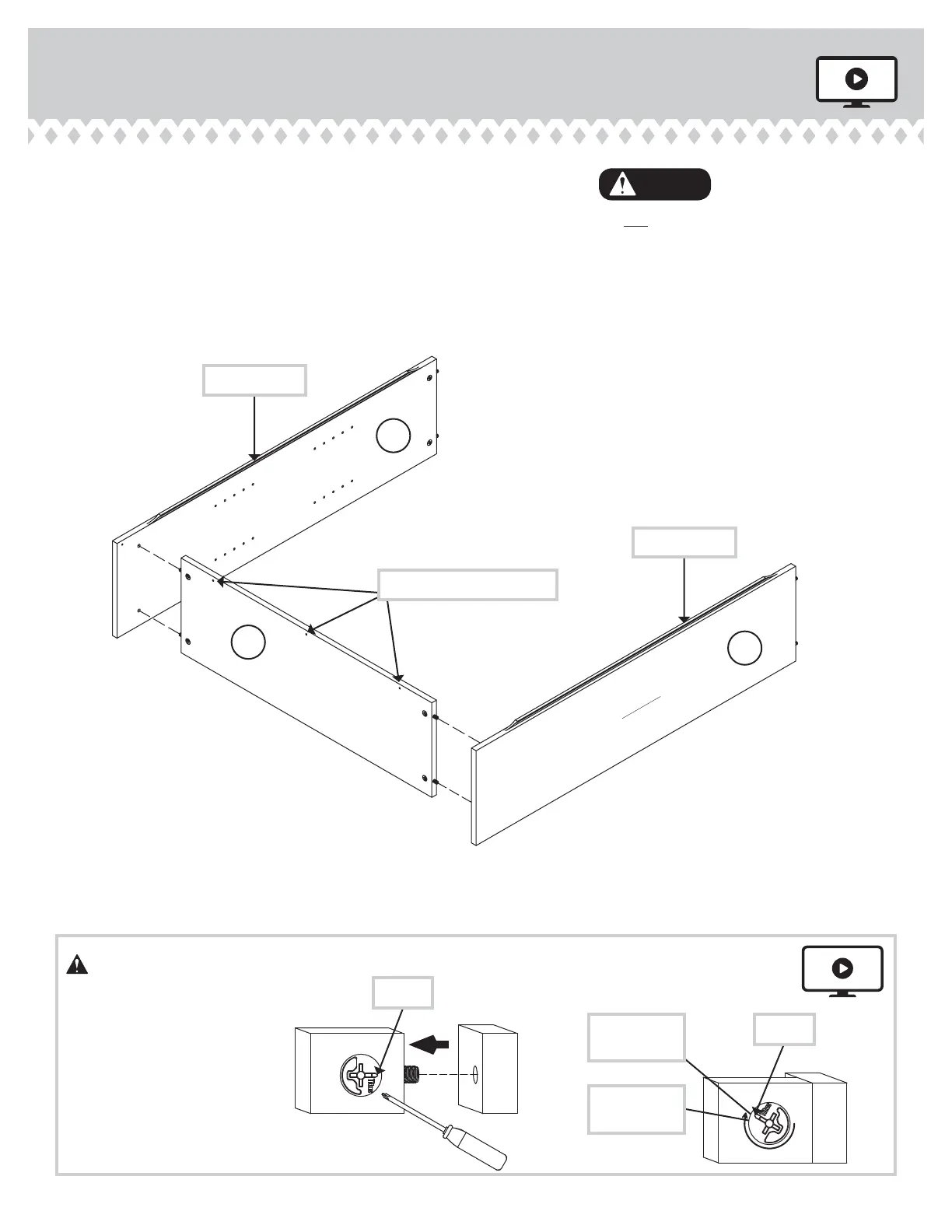

Fasten the ENDS (A and B) to the BOTTOM (F). Tighten four
HIDDEN CAMS.
A
B
F
Start Tighten
Arrow
Minimum
190 degrees
Caution
Risk of damage or
injury. HIDDEN CAMS
must be completely
tightened. HIDDEN
CAMS that are not
completely tightened
may loosen, and parts
may separate. To
completely tighten:
Arrow
Maximum
210 degrees
Notched edge
Notched edge
These holes must be here.
Surface with
HIDDEN CAMS
Surface without
HIDDEN CAMS
Surface with
HIDDEN CAMS
Do not stand the unit upright without the
BACK fastened. The unit may collapse.
Caution
