Sauder 423032 - Step 3: Attaching Top Panel and Safety Strap

Step 3
423032www.sauder.com/services
Page 7
å

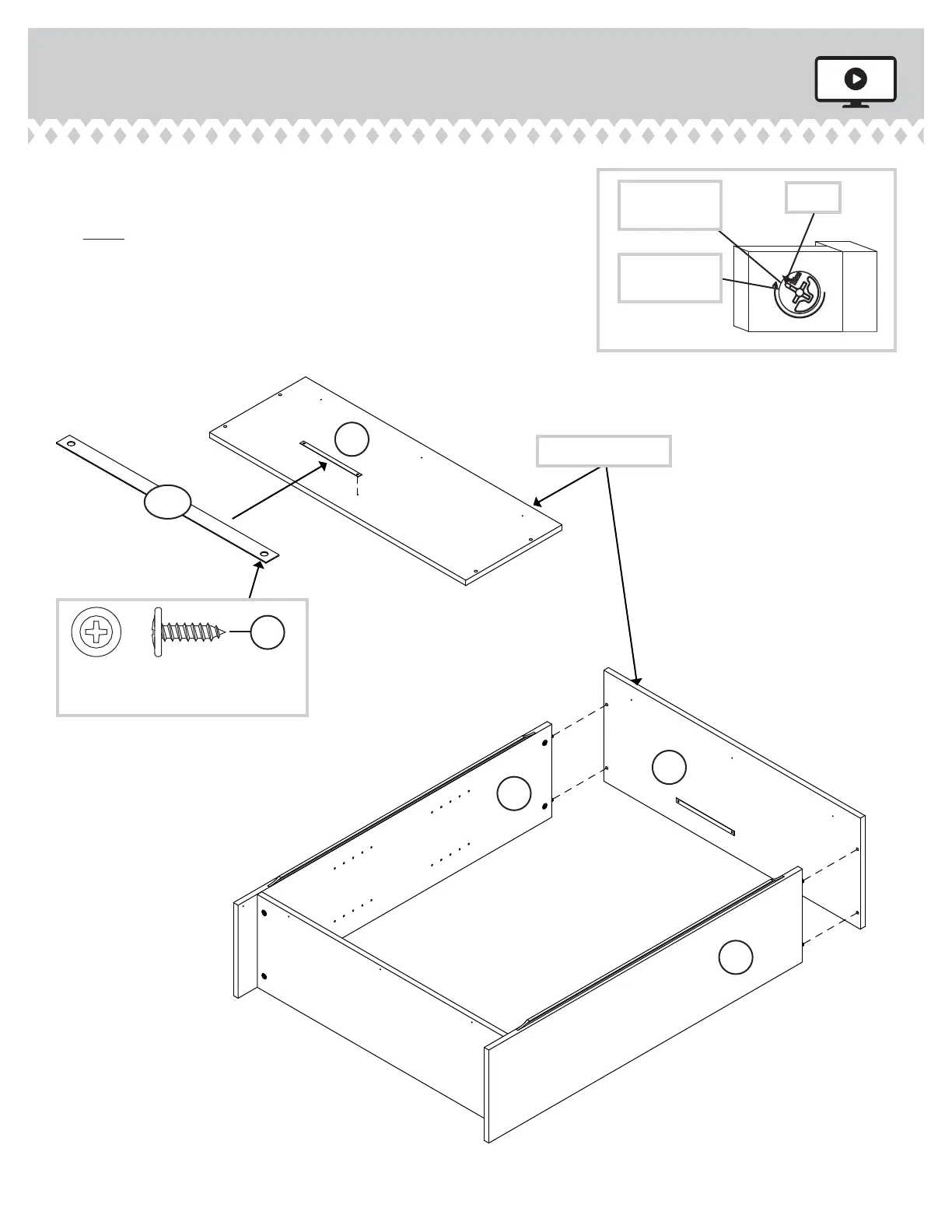

Fasten the SAFETY STRAP (60M) to the TOP (E2). Use a
BLACK 9/16" LARGE HEAD SCREW (1S).
å
NOTE: Position the SAFETY STRAP (60M) exactly as shown.
å
Fasten the TOP (E2) to the ENDS (A and B). Tighten four
HIDDEN CAMS.
A
B
Arrow
Minimum
190 degrees
Maximum
210 degrees
E2
Surface with holes
E2
60M
BLACK 9/16" LARGE HEAD SCREW
(1 used in this step)
1S
Surface with holes
Long fi nished edge
