Step 13
Page 17www.sauder.com/service426930
å

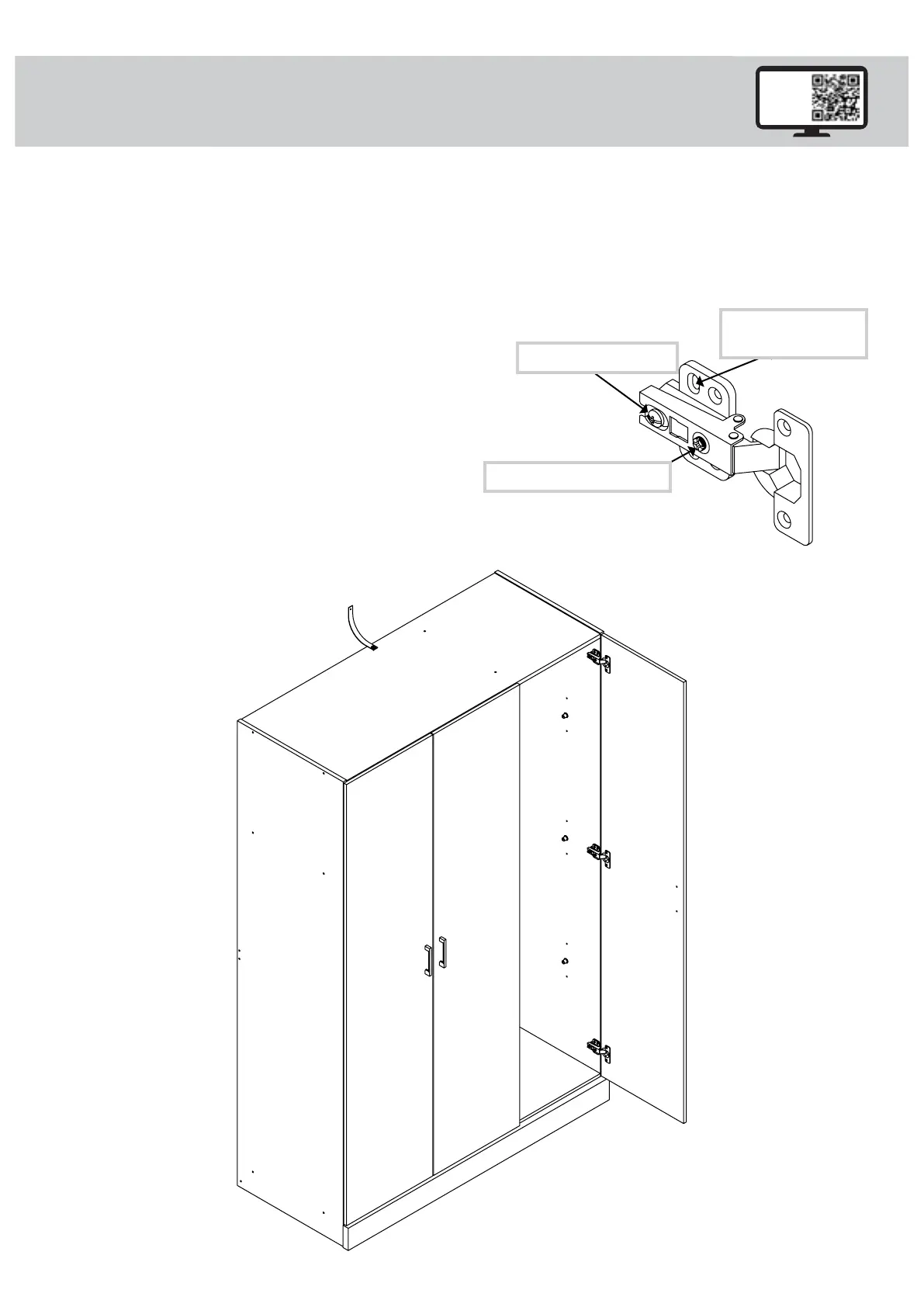

Refer to the enlarged diagram to identify the parts on
the HINGES.
å
The DOORS may need some adjustments. Follow the text
below to make needed adjustments.
å
DOOR ADJUSTMENTS:
To adjust the DOORS from side to side (horizontal), turn the
adjusting screw in or out.
å
To adjust the DOORS up and down (vertical), remove the
round hole screws and loosen the slotted hole screws.
Move the DOORS up or down to the desired location.
Tighten the slotted hole screws first. Then turn the round
holes screws into their holes.
å
To adjust the DOORS in or out (depth), loosen the
mounting screw one turn and move the DOORS in or out,
as needed. Tighten the mounting screw after
making adjustments.
(vertical adjustment)
2 screws
Adjusting screw (horizontal)
Mounting screw (depth)
17
