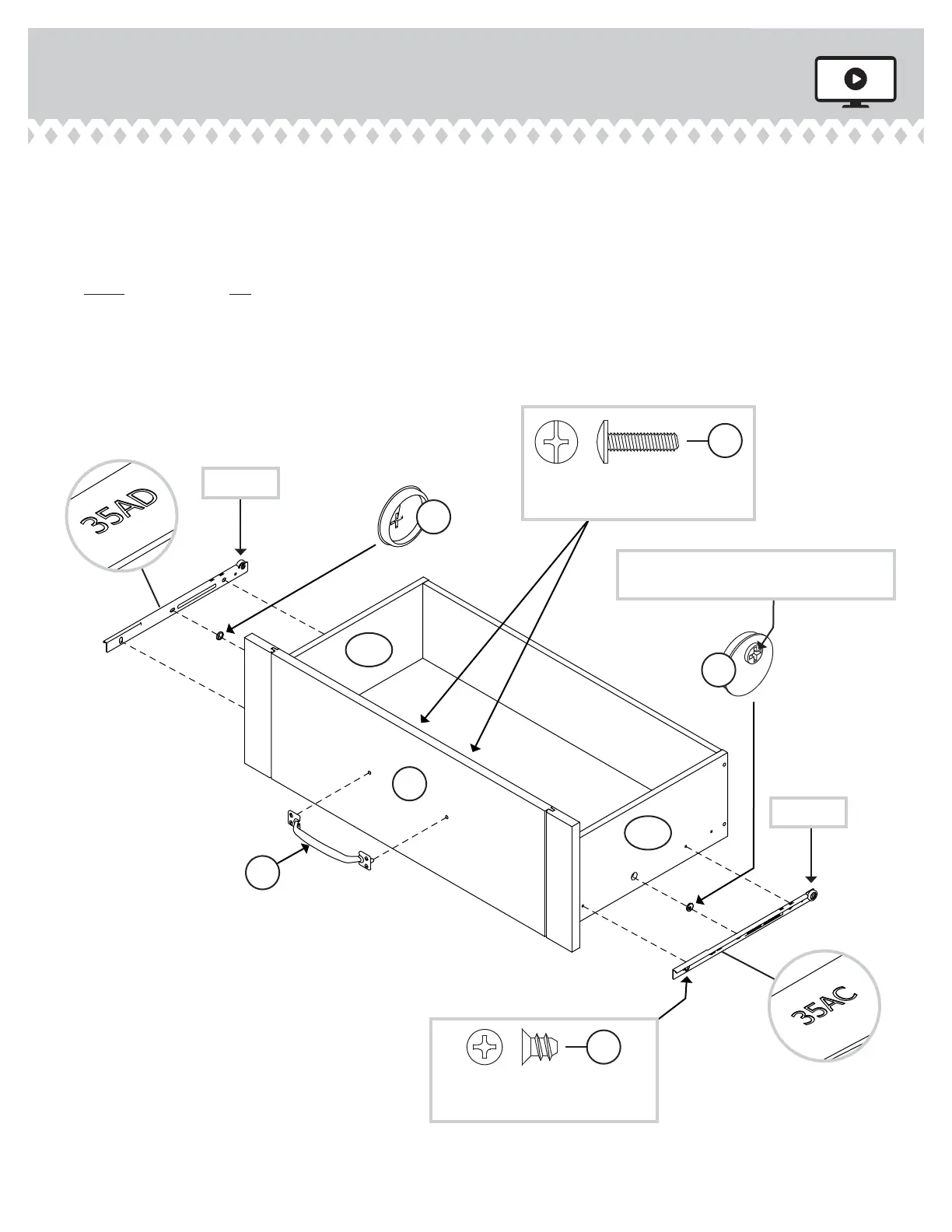

Step 17
å
Insert a SLIDE CAM (10A) into the DRAWER SIDES (D132 and D138).
å
Fasten the DRAWER RIGHT (35AC) to the DRAWER RIGHT SIDE (D132)
and the DRAWER LEFT (35AD) to the DRAWER LEFT SIDE (D138). Use
four GOLD 5/16" FLAT HEAD SCREWS (3S) throuh holes #1 and #2.
å
NOTE: The lides are not intended to rotate.
å
Fasten the PULL (53K) to the DRAWER FRONT (L). Use two SILVER 5/8"
MACHINE SCREWS (15S).
1
2
1
2
D138
D132
L
Screw head - turn CAM to line up holes in
the SLIDES with holes in DRAWER SIDES
10A
10A
53K
SILVER 5/8" MACHINE SCREW
(2 used for the PULL)
15S
415107 www.sauder.com/servicesPae 22
Glide end
Glide end
GOLD 5/16" FLAT HEAD SCREW
(4 used in this step)
3S
VIEW THE DRAWER GLIDE VIDEO
