Step 17
VIEW THE T-LOCK BOX VIDEO
å

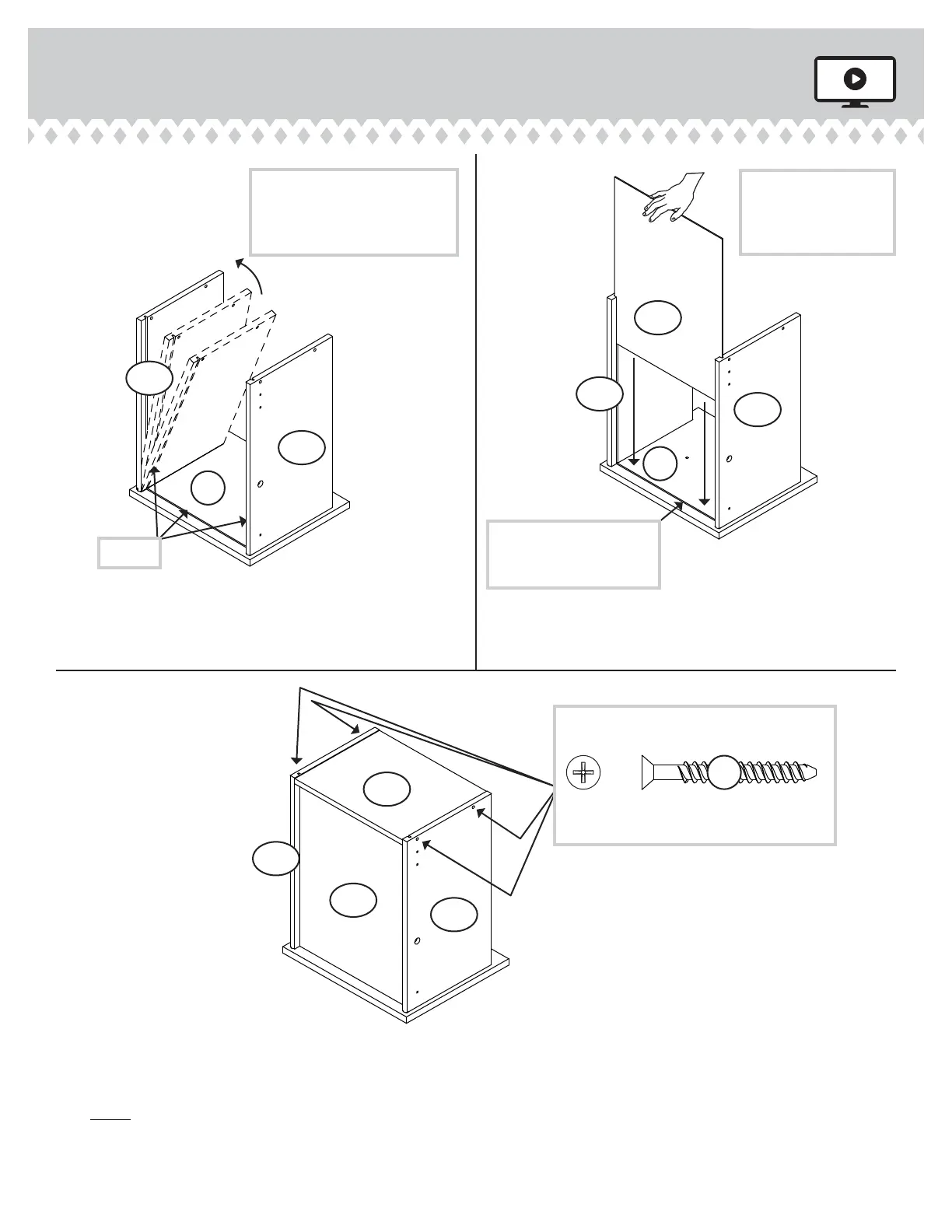

Fasten the LARGE DRAWER BACK (D78) to the LARGE DRAWER SIDES (D87 and D88). Use four BLACK 1-9/16" FLAT
HEAD SCREWS (30S).
å
NOTE: Be sure the LARGE DRAWER BOTTOM (D708) inserts into the groove of the LARGE DRAWER BACK (D78).
å
Repeat this step for the remaining drawers.
12
3
å
Insert the LARGE DRAWER SIDES (D87 and D88)
at an angle into the slot at each end of the LARGE
DRAWER FRONT (T).
å
Slide the LARGE DRAWER BOTTOM (D708) into the
grooves in the LARGE DRAWER SIDES (D87 and D88)
and LARGE DRAWER FRONT (T).
The tabs should insert freely
into the slots. Gently tilt the
DRAWER SIDES side to side
until the tabs slip into the slots.
Groove
Be sure the DRAWER
BOTTOM inserts into the
DRAWER FRONT groove.
D87
D88
D708
D708
D87
D88
D78
D88
T
T
Unfi nished
surface
With the palm of your
hand, tap the DRAWER
BOTTOM down into
the groove.
D87
408289 www.sauder.com/servicesPage 22
Start each screw a few turns before
completely tightening any of them.
BLACK 1-9/16" FLAT HEAD SCREW
(24 used in this step)
30S
