Sauder Executive Desk 408289 - Step 18: Attach Extension Slides to Drawer Sides

Step Step 18
å

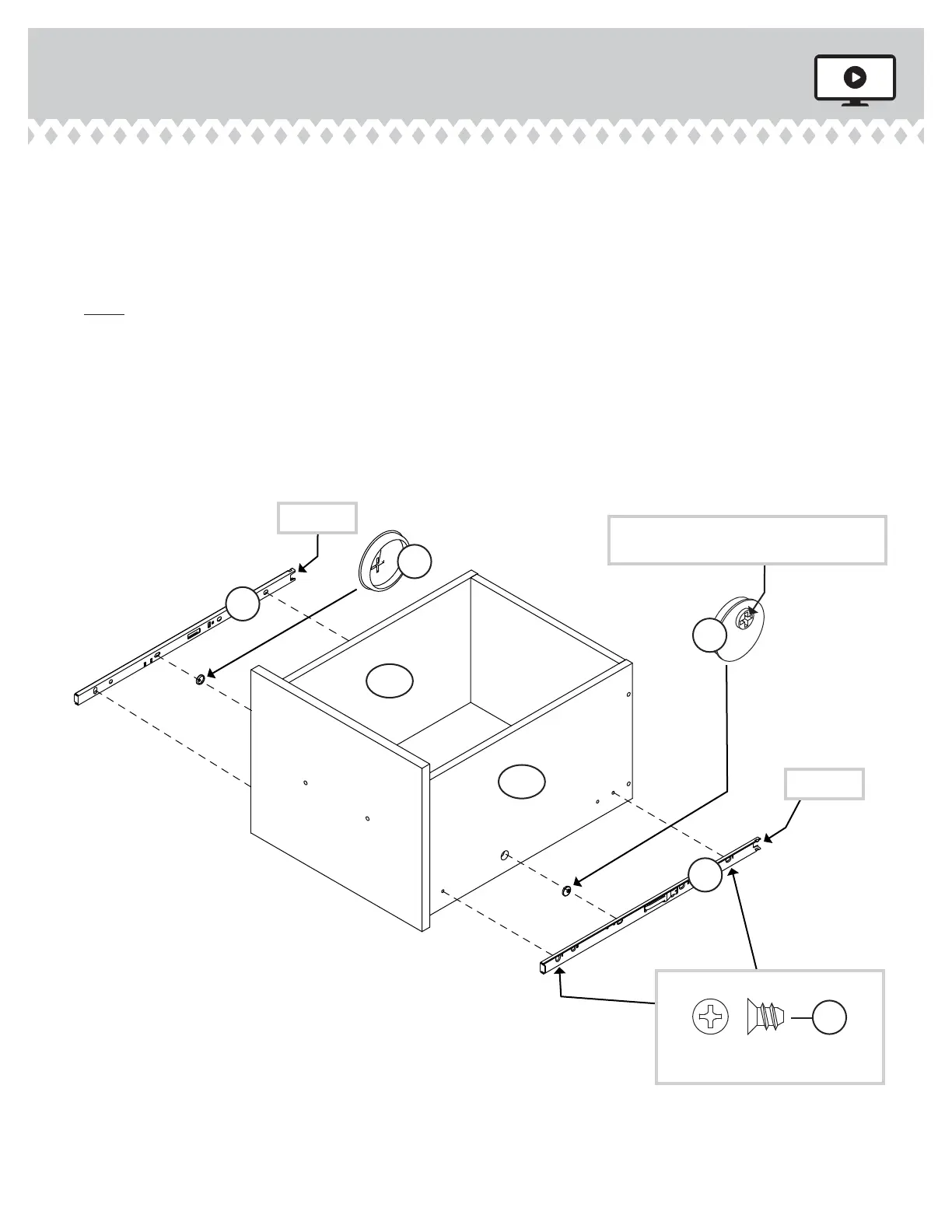

Insert a SLIDE CAM (10A) into the large holes in the
LARGE DRAWER SIDES (D87 and D88).
å
Fasten the EXTENSION SLIDES (BB) to the LARGE
DRAWER SIDES (D87 and D88). Use four GOLD 5/16"
FLAT HEAD SCREWS (3S) through holes #1 and #4.
å
NOTE: The screw head in the CAM must be visible
through the slotted hole in the SLIDE.
å
Repeat this step for the other large drawer.
Open end
Open end
Screw head - turn CAM to line up holes in
the SLIDES with holes in DRAWER SIDES
10A
10A
BB
BB
D87
D88
408289www.sauder.com/services
Page 23
1
2
3
4
1
2
3
4
GOLD 5/16" FLAT HEAD SCREW
(8 used in this step)
3S
(4 screws per drawer)
