Step
å

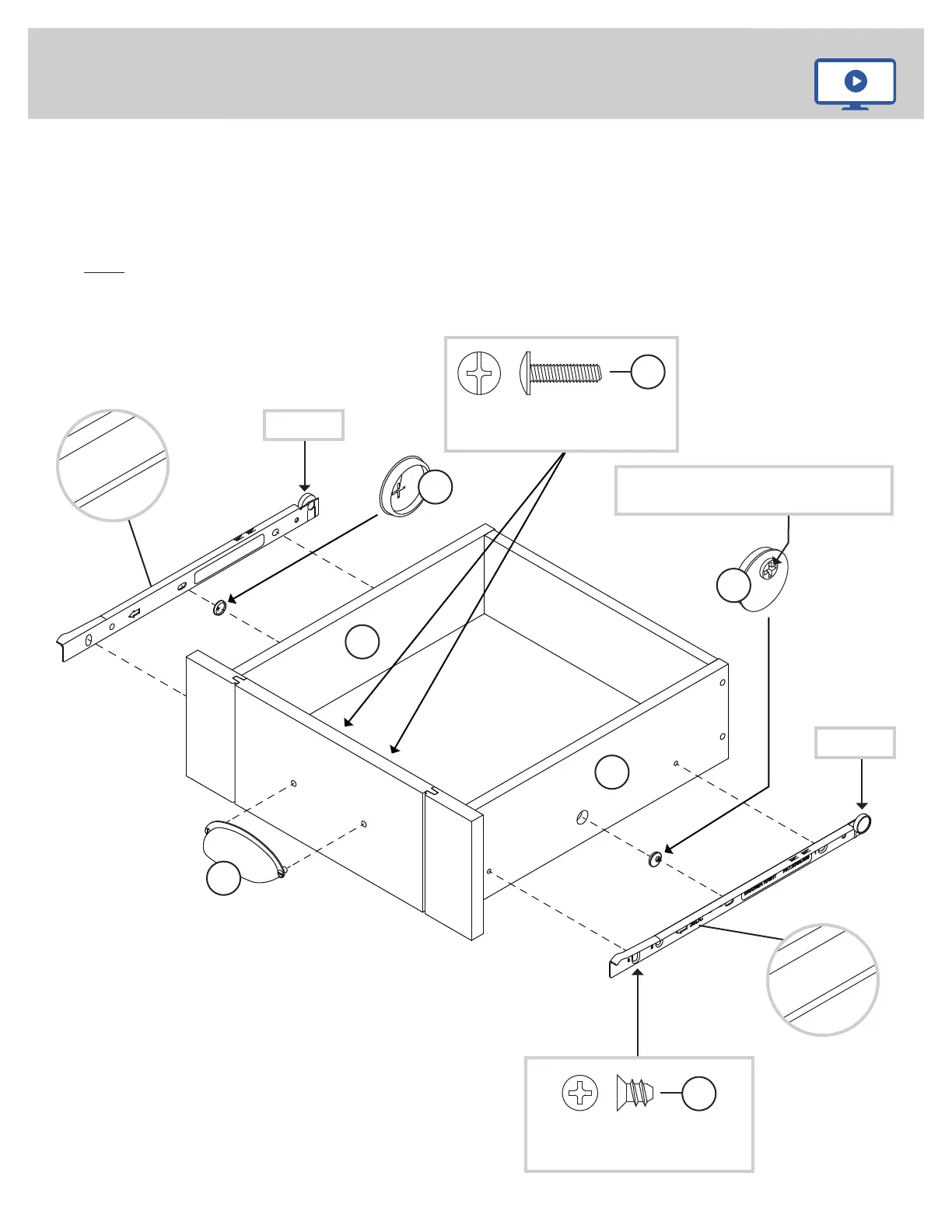

Insert a SLIDE CAM (10A) into each DRAWER SIDE (D24 and D25).
å
Fasten the DRAWER RIGHT (35DC) and DRAWER LEFT (35DD) to the DRAWER SIDES (D24 and D25). Use four GOLD
5/16" FLAT HEAD SCREWS (3S) through holes #1 and #3.
å
NOTE: The screw head in the CAM must be visible through the slotted hole in the SLIDE.
å
Fasten a PULL (98K) to the DRAWER FRONT (N). Use two SILVER 5/8" MACHINE SCREWS (15S).
å
Repeat this step for the other small drawer.
Step 3
3 5 D D
35DD
3 5 D C
35DC
1
3
2
1
3
2
Roller end
Roller end
GOLD 5/16" FLAT HEAD SCREW
(8 used in this step)
3S
D24
D25
98K
SILVER 5/8" MACHINE SCREW
(4 used for the PULLS)
15S
417586 www.sauder.com/servicePage 8
Screw head - turn CAM to line up holes in
the SLIDES with holes in DRAWER SIDES
10A
10A
