Step Step 4
35DA
35DA
35DB
35DB
å

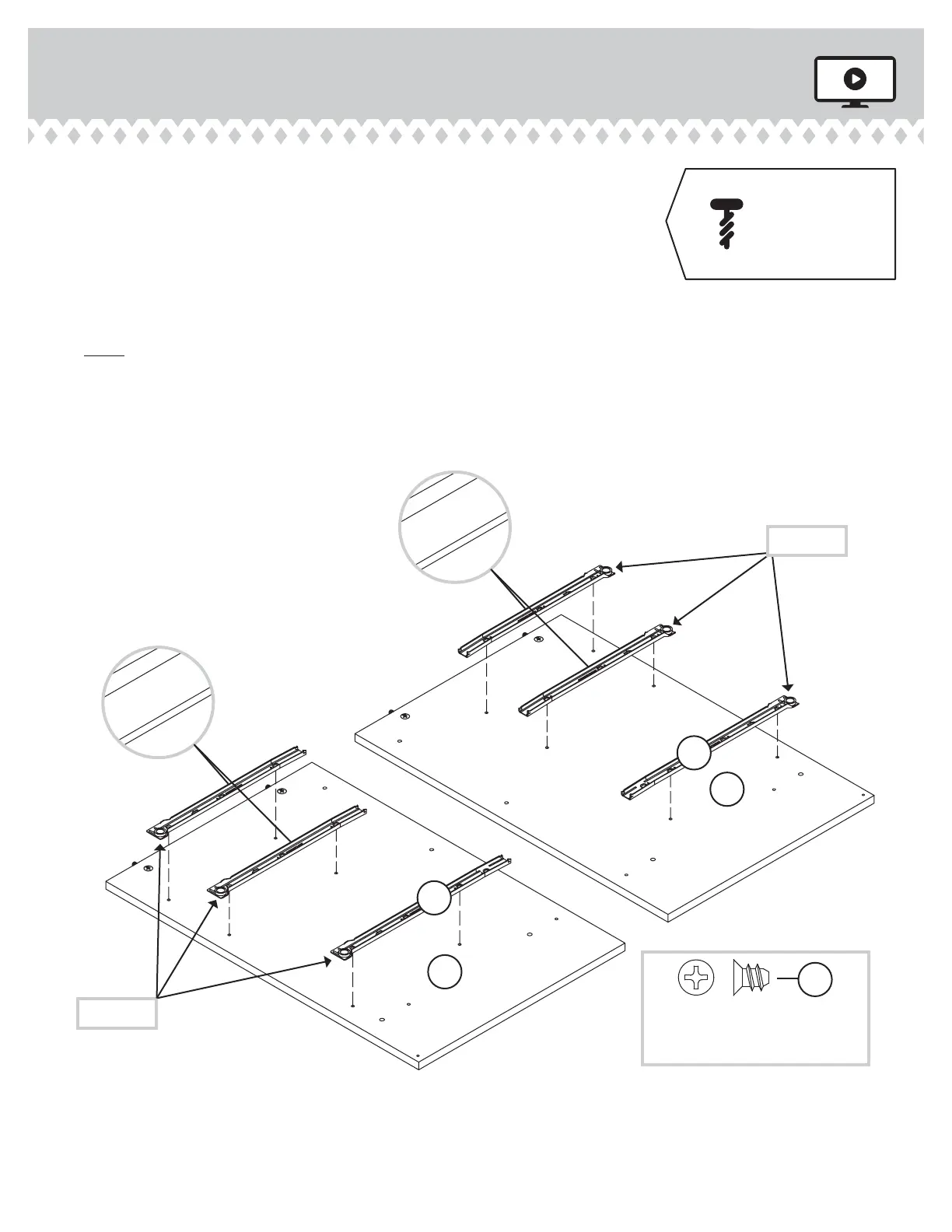

Fasten the CABINET RIGHTS (35DA) and CABINET
LEFTS (35DB) to the DRAWER ENDS (C and D). Use
eiht GOLD 5/16" FLAT HEAD SCREWS (3S) throuh
holes #1 and #3.
å
Fasten the NUMBERED CABINET RAILS (GG and HH) to
the DRAWER ENDS (C and D). Use four GOLD 5/16" FLAT
HEAD SCREWS (3S) throuh holes #1 and #3.
å
NOTE: The CABINET RAILS are marked "CABINET
RIGHT" and "CABINET LEFT" for easy identifi cation.
GOLD 5/16" FLAT HEAD SCREW
(12 used in this step)
3S
Roller end
1
3
2
1
3
2
C
D
Surface with
HIDDEN CAMS
Surface with
HIDDEN CAMS
1
3
2
1
3
2
4
Roller end
1
3
2
1
3
2
4
HH
GG
Remember:
Rihty tihty.
Lefty loosey.
