Step 24
425014www.sauder.com/service
Page 29
å

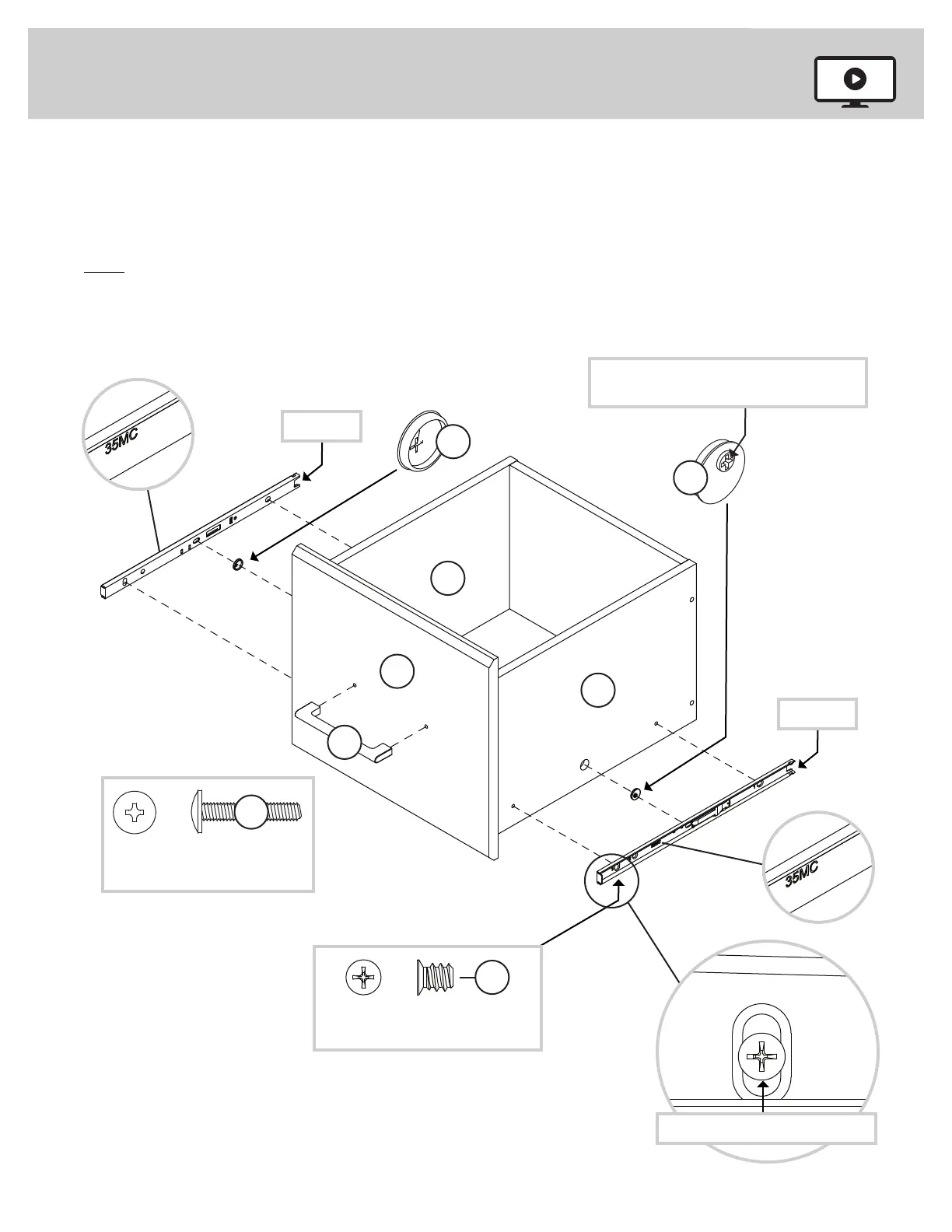

Insert a SLIDE CAM (10A) into the DRAWER SIDES (D14 and D15).
å
Fasten the EXTENSION SLIDES (35MC) to the DRAWER SIDES (D14 and D15). Use four GOLD 5/16"
FLAT HEAD SCREWS (3S) through holes #1 and #3.
å
NOTE: The screw head in the CAM must be visible through the slotted hole in the SLIDE.
å
Fasten the PULL (35K) to the DRAWER FRONT (F). Use two BLACK 7/8" MACHINE SCREWS (37S).
10A
Open end
Screw head - turn CAM to line up holes in
the SLIDES with holes in DRAWER SIDES
1
2
3
10A
1
2
3
GOLD 5/16" FLAT HEAD SCREW
(4 used for the SLIDES)
3S
Open end
D15
D14
BLACK 7/8" MACHINE SCREW
(2 used for the PULL)
37S
35K
F
Drawer Slide
Center the screw in the oval hole.
To Next Page
