Series 20 – Axial Piston Motors
Service Manual and Repair Instructions
P000 341
TROUBLE SHOOTING, GAUGE INSTALLATION AND INFORMATION

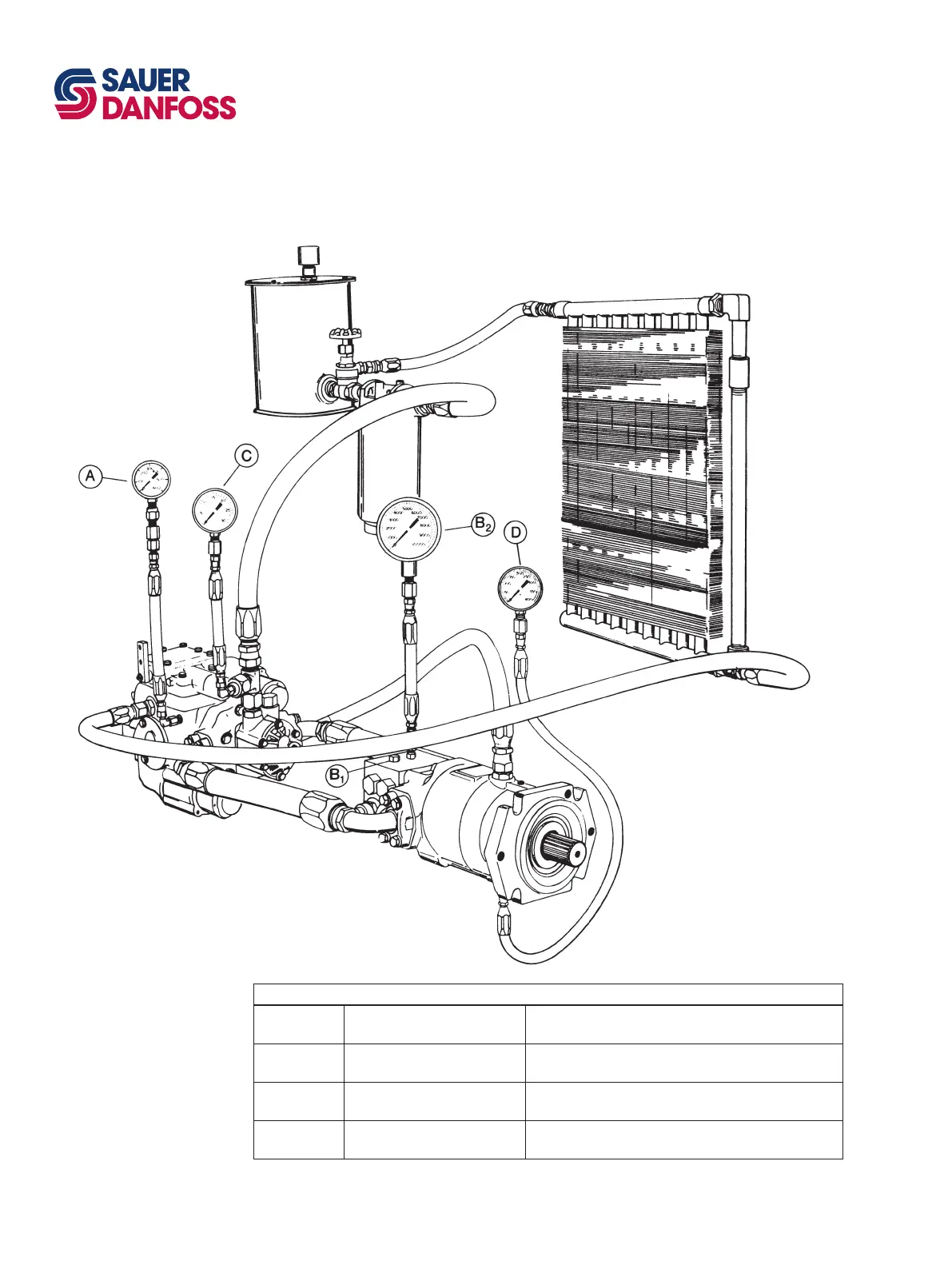

Gauge Information
A Charge Pressure
60 bar [870 psi] - Gauge
7/16 - 20 UNF O-ring Fitting
B System Pressure
600 [8700 psi] bar - Gauge
7/16 - 20 UNF O-ring Fitting
C Inlet Vacuum
Vacuum gauge
Tree Into Inlet Line
D Case Pressure
8 bar [116 psi] - Gauge
Adapt to Bottom Drain Port
Recommended Tools and Installation
