• ASSEMBLING THE HOOD
2 / INSTALLING YOUR APPLIANCE EN
Warning
The hood must be installed
in compliance with all applicable
regulations concerning the ventilation of
premises. In France these regulations are
described in DTU 61.1 from the CSTB. In
particular, the evacuated air should never
be conveyed to a duct used to evacuate
smoke from appliances that use gas or
other combustible fuels. Unused ducts
may only be used after approval from a
competent specialist.
The minimum distance between the cooking
surface and the lowest part of the hood
must be 70 cm at least. If the instructions
for the hob installed under the hood
specify a distance of more than 70 cm, this
requirement must be respected.

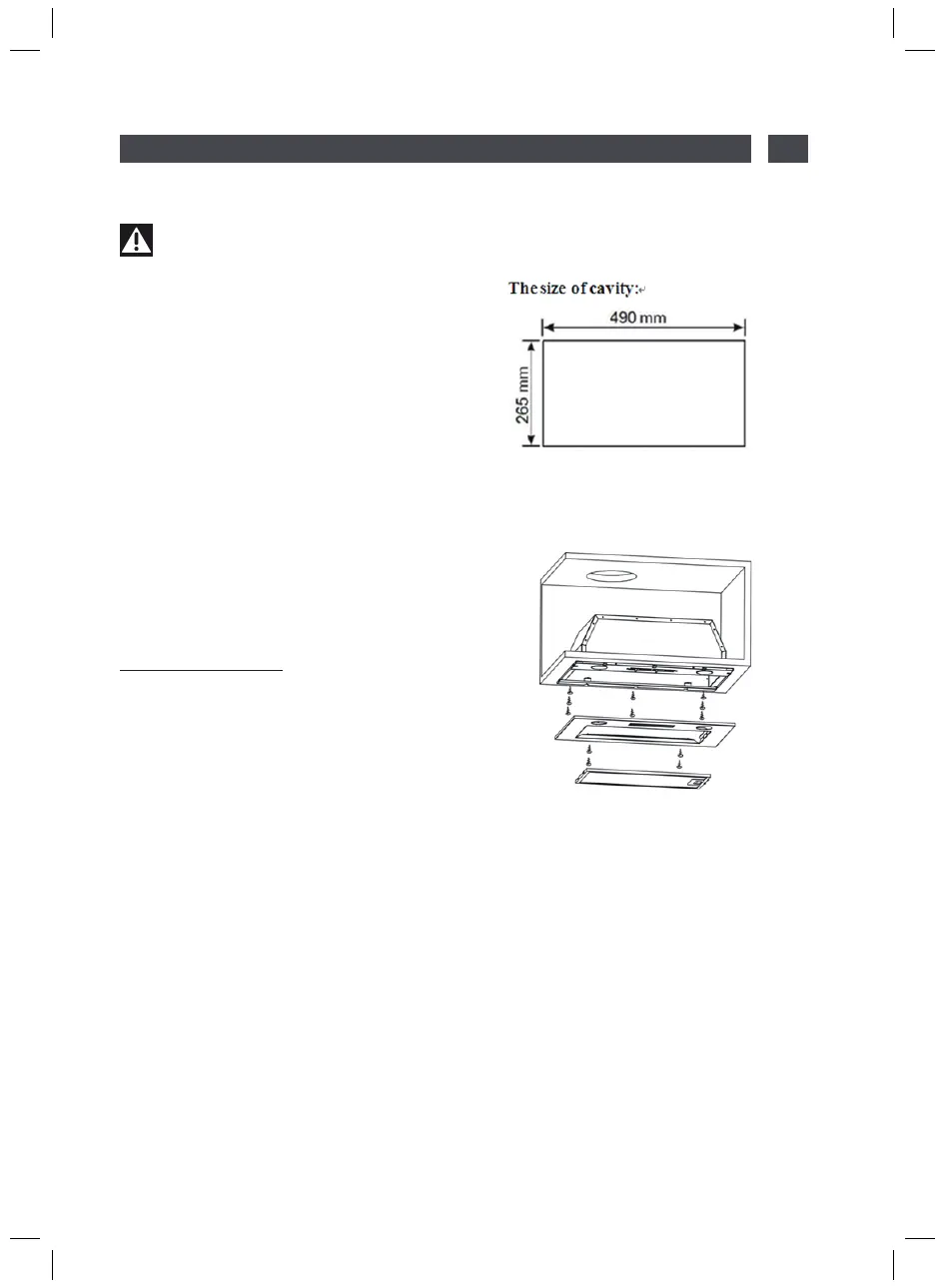

Fixing to the cabinet :
— Drill a hole in the cabinet according to
the size in pic 1. Make sure the distance bet
ween the edge of the hole and the edge of
the cupboard edge is at least 35mm.
— Remove the aluminum lter and remove
the two front panel screws. Disconnect the
LED lights and put the panel aside. pic 2
— Use a screwdriver to secure the screws
to the cabinet.
— Connect the LED lights and xt the front
panel with the two screws and replace the
aluminum lter.
