Diagnostic LEDs

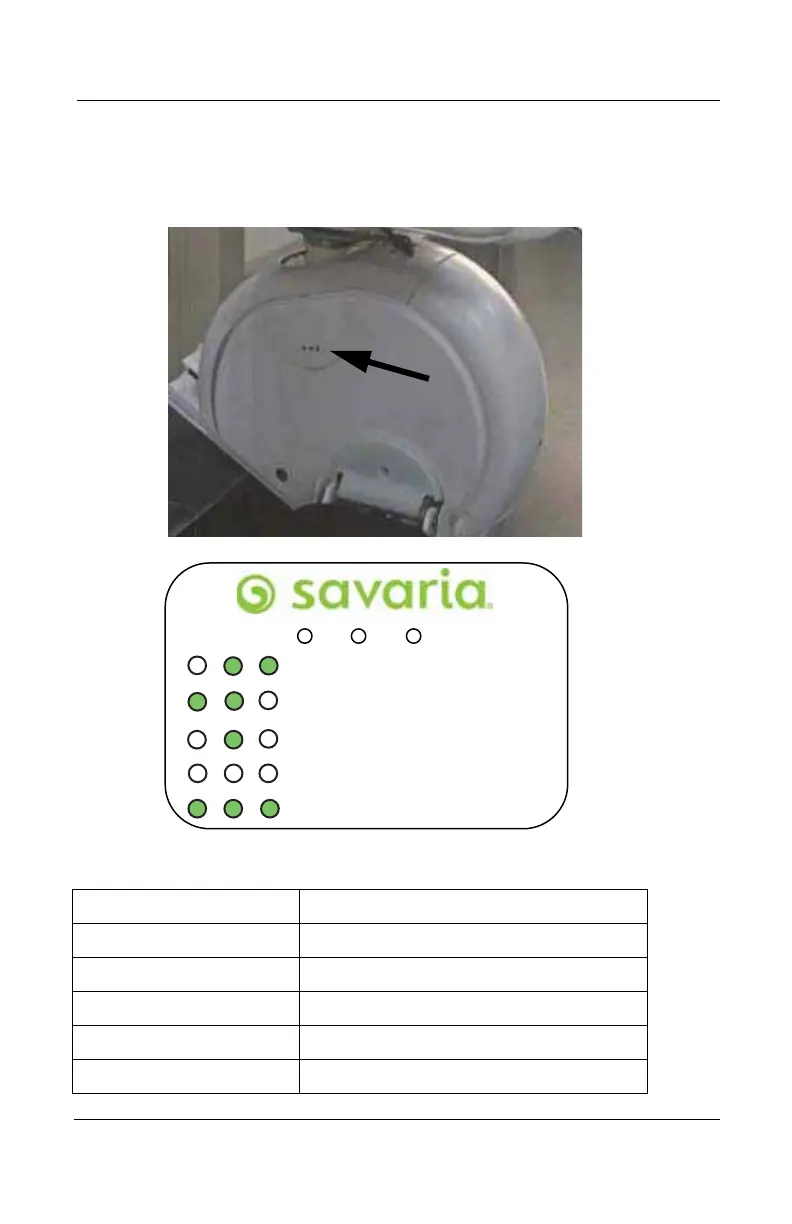

There are three diagnostic LEDs located on the carriage front panel.
Figure 7
LED Status
LEDs Meaning
Middle and right LEDs on Left-hand obstruction (or ready to run right)
Middle and left LEDs on Right-hand obstruction (or ready to run left)
Middle LED on Obstruction, both right-hand and left-hand
All LEDS off Safety circuit fault
All LEDs on Ready to run left or right
SAFETY CIRCUIT FAULT (SEE OWNER’S MANUAL)
LH OBSTRUCTION (OR READY TO RUN RIGHT)
RH OBSTRUCTION (OR READY TO RUN LEFT)
OBSTRUCTION, BOTH RH AND LH
READY TO RUN LEFT OR RIGHT
