Part No. 000790, 01-m06-2011 Multilift (B613) Planning Guide
Site construction details

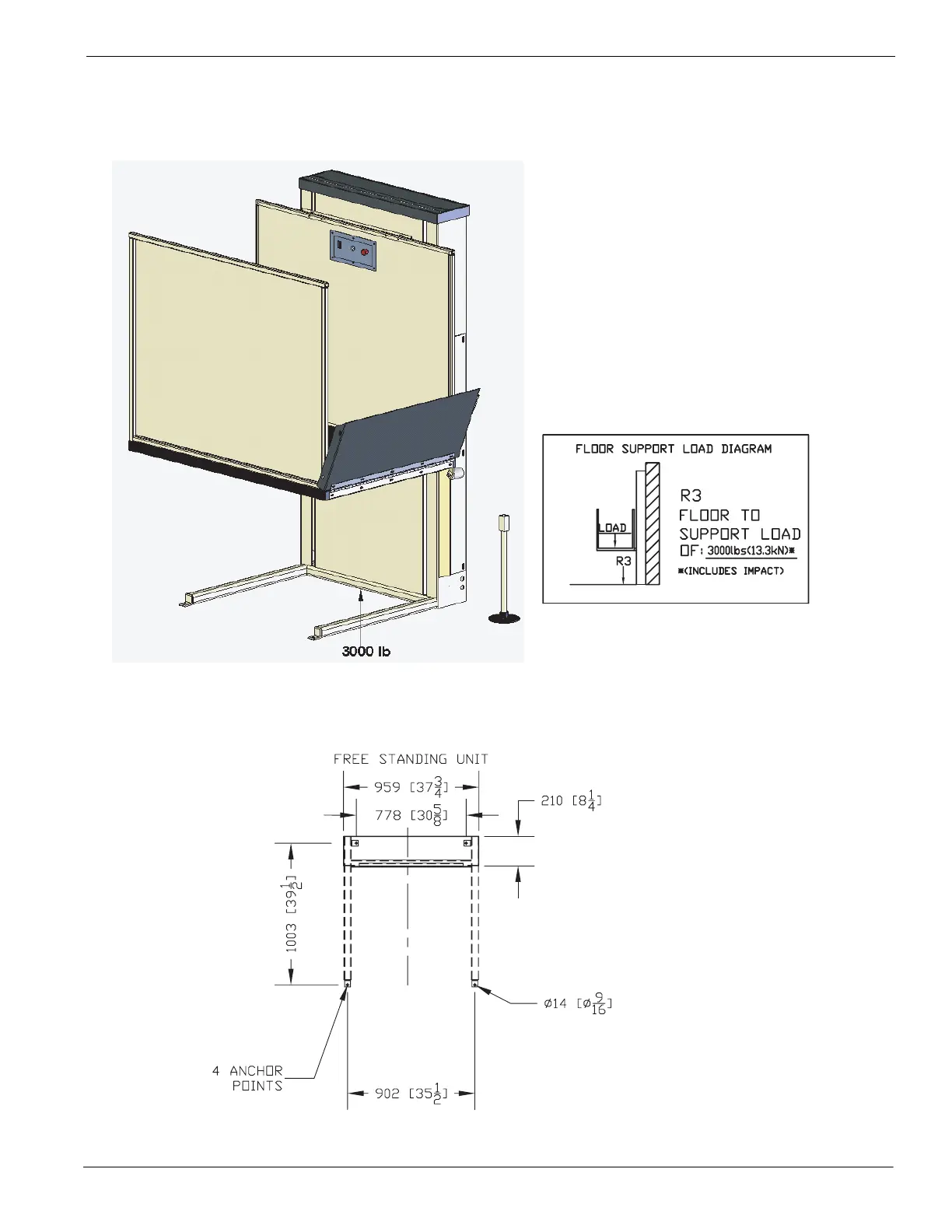

The self-supporting base must be able to support at least 3000 lb (13.3 kN) per Figure 3 and must
be anchored to a concrete slab (or floor) per Figure 4. Make sure the slab (floor) surface is level.
Figure 3: Floor loading diagram
Figure 4: Anchor points
