Scale House ASB30 - Connecting to Cash Registers Lynx and Puma

15
TPR printer power supply
STANDARD
CABLE
POWER SUPPLY
+VP and
+VC
Red and Orange
+V (5V / 5A)
GND
and
GND
Black and Black
-
V
9. CONNECTING TO CASH REGISTERS LYNX AND PUMA

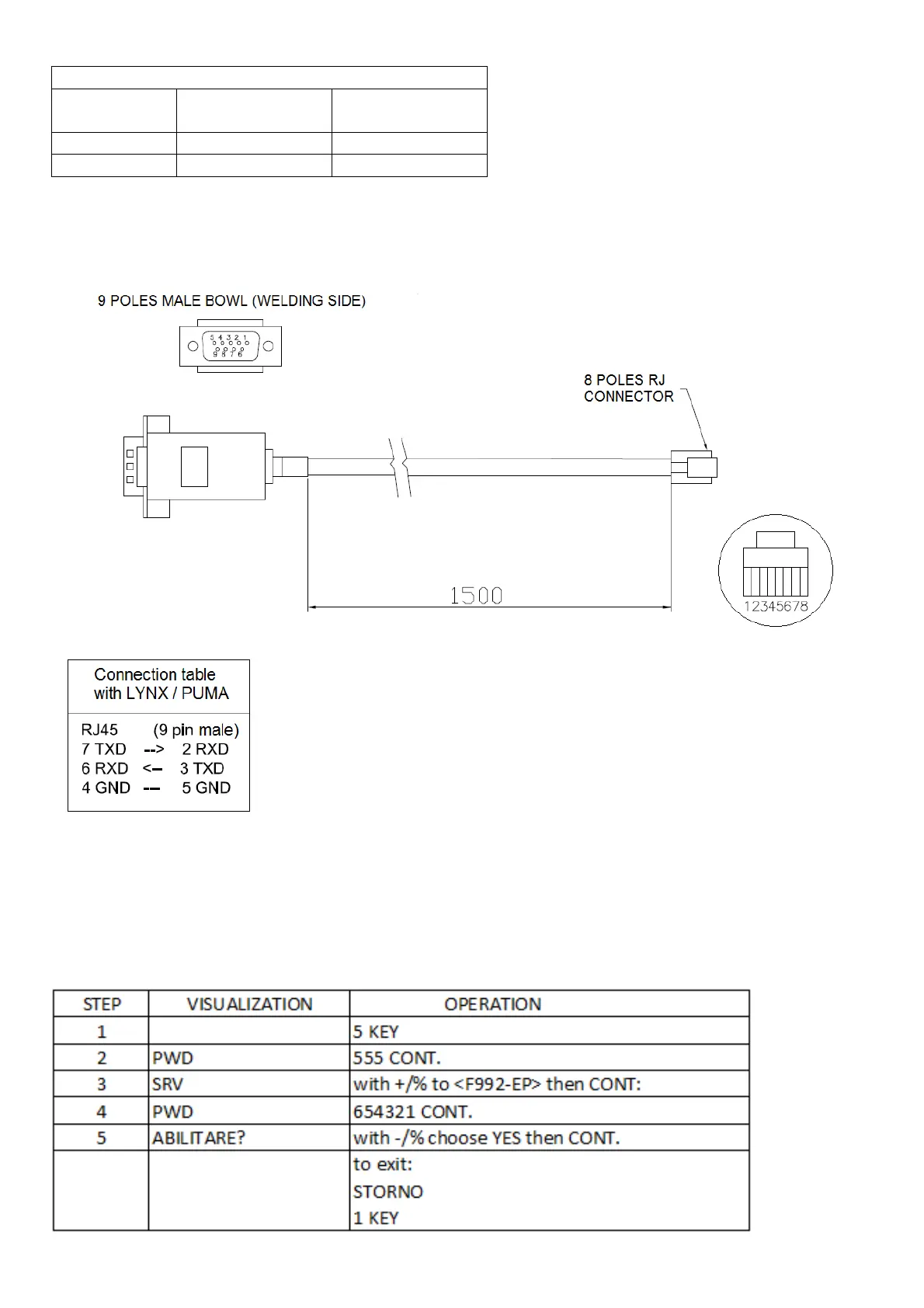

Wiring diagram:
To connect the cash register to the instrument it’s necessary set Baud Rate on 9600 (Setup step “F11”) and totalization on
ECR (Setup step “F13”).
On the cash register it’s necessary to do the following operation (Lynx only):
