5. Settings:

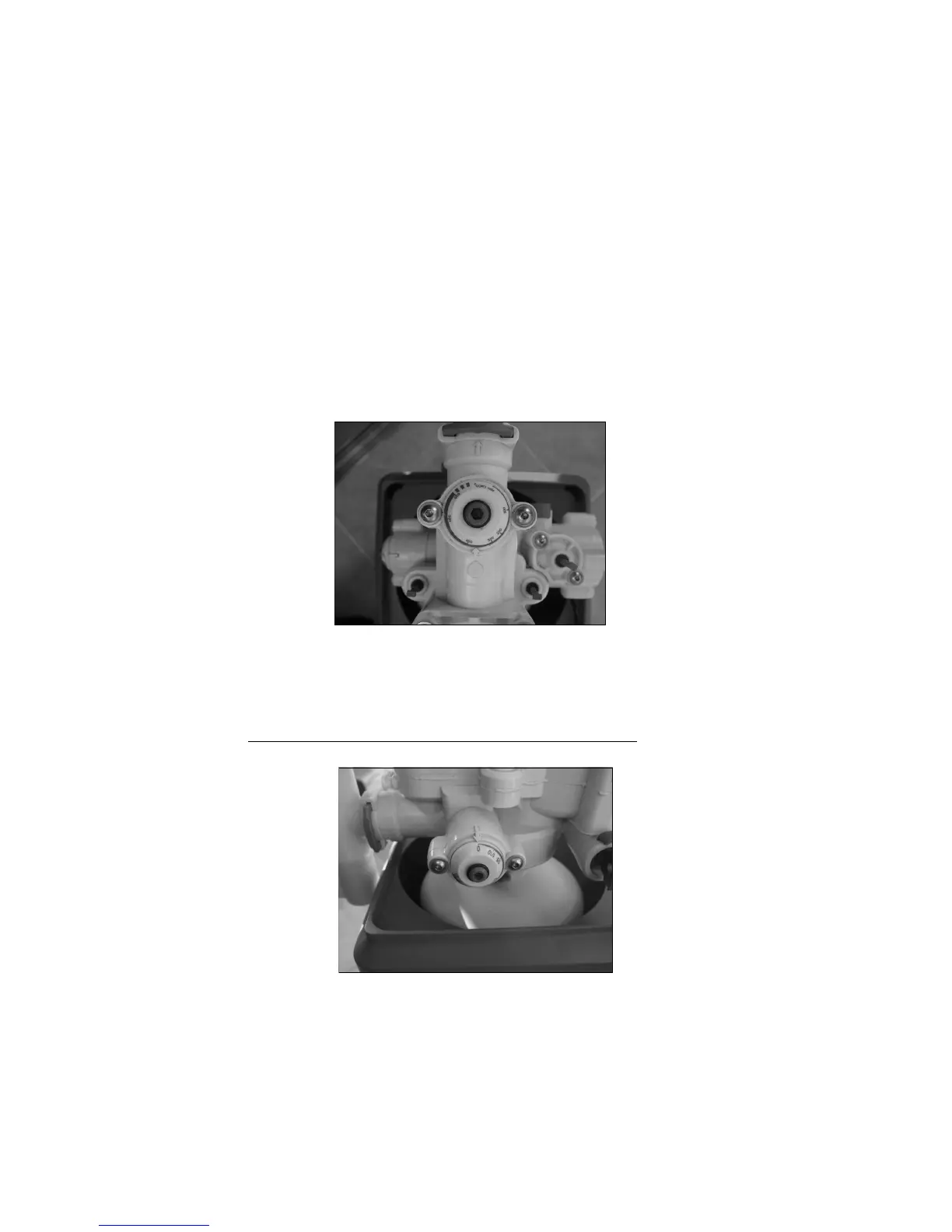

5.1 THE HARDNESS REGULATOR: (Part 9, Page 5).
The hardness regulator is situated on the TOP of the valve unit and has measurements
marked 0 through to 600. Measure the incoming water by means of one of the test strips
provided. (these are on the reverse of the registration card) The Softline units use ppm
(parts per million) settings of CaCO
3.
Adjust the hardness regulator to the measurement value using the 5mm allen key
supplied. If you are unsure contact the Technical Helpline.
5.2: THE BLENDING REGULATOR: (part 8, page5).
The blending regulator is situated on the SIDE of the valve unit and has measurement
markings from 0 through to 1/2 in fraction increments.
THE SETTING OF THE BLENDING REGULATOR SHOULD BE LEFT AT ZERO.
