Scallywag Kids BUNK CONVERSION KIT - Fitting Rails & Slats; Attach Side Rails to Bed Ends; Install Mattress Slat Base; Regular Bolt Checks

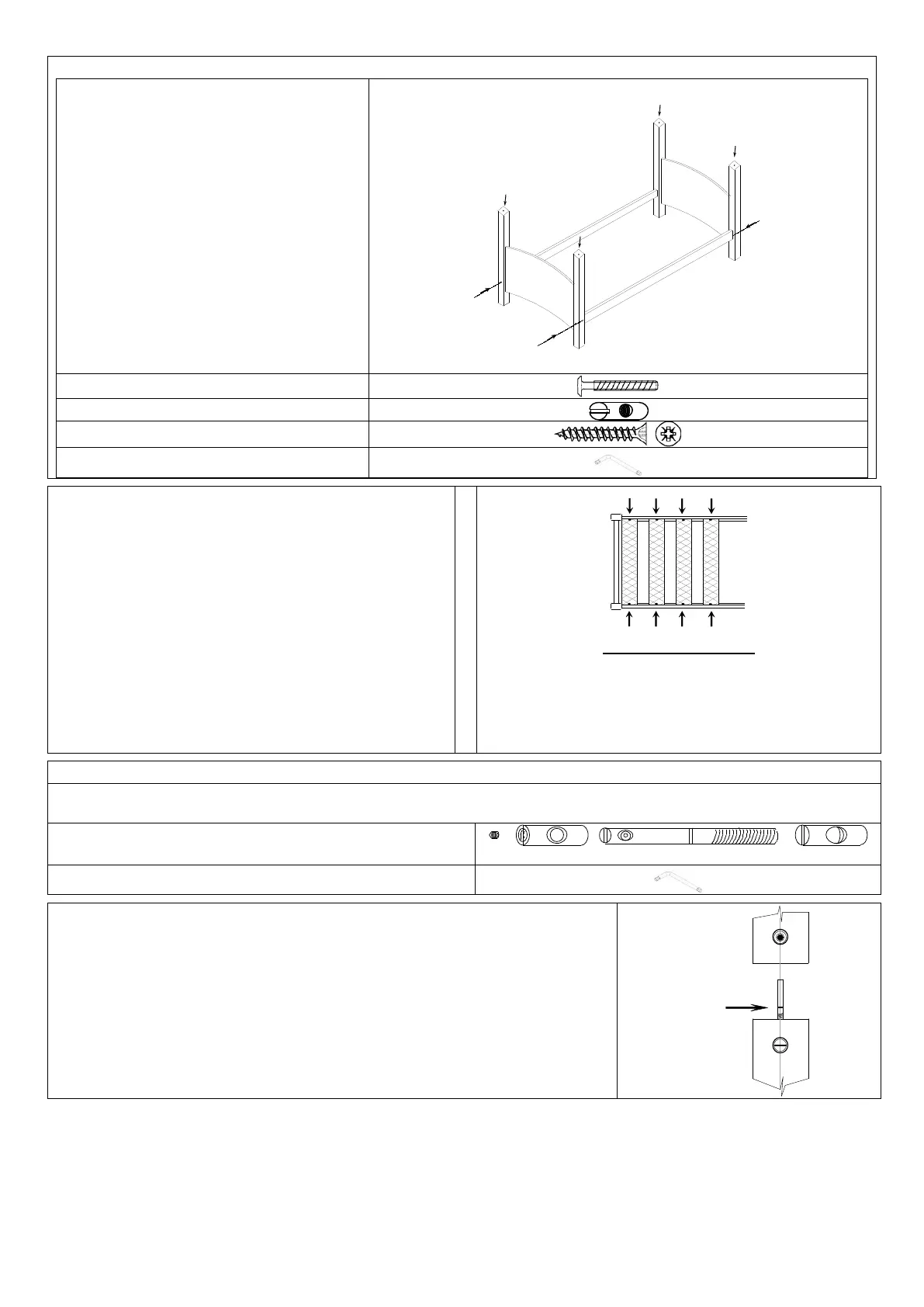

2 – Fitting Rails & Slats
Bed Assembly Components:
Assembled Ends (See Overleaf)
Side Rails From Box 3 & Box 4 (Slats)
Fittings
A
A
A
E
E
E
E
(A) 4 x M6 115mm Bolt
(B) 4 x M6 Barrel Nut
(D) 24 x 38mm Woodscrew
1 x Allen Key (4mm)
1. Locate the 2 side rails into one pre-assembled bed
end with mattress rail rib to the bottom.
2. Fit the other pre-assembled bed end.
3. Secure rails M6 bolt (A) through leg and into barrel
nut (B). Use Allen Key provided to tighten.
4. Secure mattress slats as described opposite.
5. We recommend that bolts are checked & tightened at
regular intervals.
D D D D
D D
D
D
Mattress Slat Base
Spread the slats out across the ribs on the side
rails ensuring the gap between each rail is greater
than 60mm, but no more than 75mm (The webbing
between the slats defines this dimension, when
taught). Fix the slats to the rib using screws(D).
ASSEMBLY GUIDE (Bunk Conversion To Starter Bed)
Insert the threaded nut of fitting E into the long leg, then screw the bar of fitting
E into the threaded nut. It is important to screw the bar into the threaded nut
until the groove is just below the top of the conversion leg. Insert the other nut
into the starter bed and place on top. Secure using grub screw & 5mm allen key
provided.
Groove
3 – Fitting To Starter Bed
Assembly Components:
Fittings Pack & Pre-Assembled Lower Bunk (See 2 – Above)
(E) 4 x Connector Fittings
Grub screw & Nut Steel bar Threaded Nut
1 x 5mm Allen Key (For Connector Fitting)
