Page 10
Note:
Most factory built chimney manufactures make stainless steel chimney liners, either
flexible or rigid. This provides a wide variety of installation options. Make sure to follow the
manufacturer's instructions for installation and support.
NOTE: This installation may be used with a factory built or masonry fireplace. The requirements
in the section "Masonry Fireplace Requirements" must be fulfilled prior to installation.

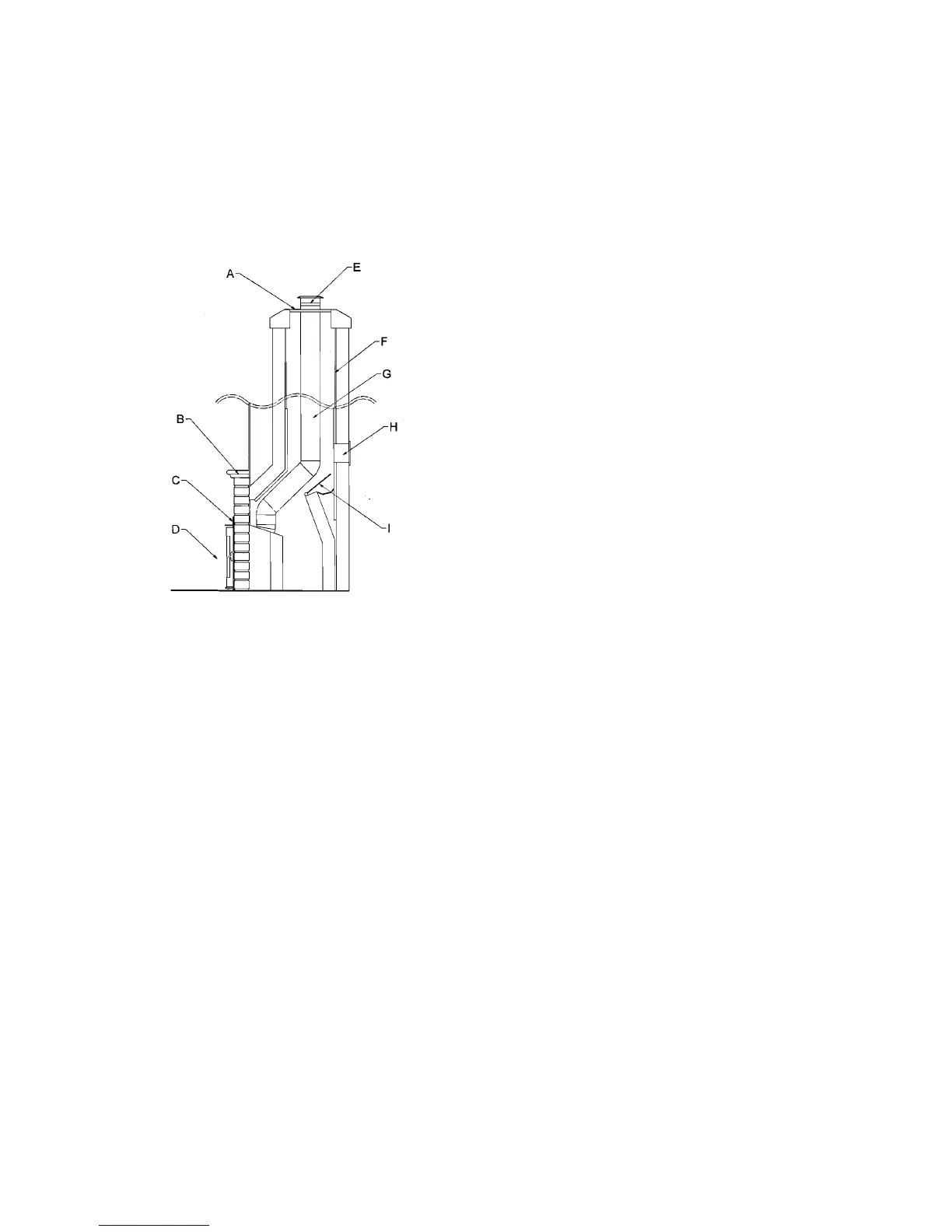

A = Install a non-combustible cover plate to vent water
from entering the chimney.
B = Combustible mantle
C = Surround panels
D = See the section "Insert Placement Requirements"
for minimum clearances and hearth requirement.
E = Cap (prevents water from entering)
F = Flue liner
G = The liner must be stainless steel connec-
tor or flexible vent. Follow the liner
manufacturer's instructions for installa-
tion and support.
H = Airtight insulated clean-out
I = Remove damper or wire it open.
