Scanlab hurrySCAN 10 - Operating and Storage Conditions

hurrySCAN
®
10, digital, 1064 nm, f = 254 mm
Rev. 2.6 e
4 Installation
25
innovators for industry
4.6 Operating and Storage Condi-
tions
For storage, operation and servicing, make sure the
following environmental conditions are met:
• The storage temperature for the scan head should
be between – 35 °C and +60 °C.
• The operating temperature is 25 °C ± 10 °C.
• Protect the scan head from humidity, dust and
corrosive vapors to avoid damage to the mirrors,
optics and electronics.
• Avoid strong electromagnetic fields and static
electricity. These can damage the electronics of
the interface and amplifier boards.
11

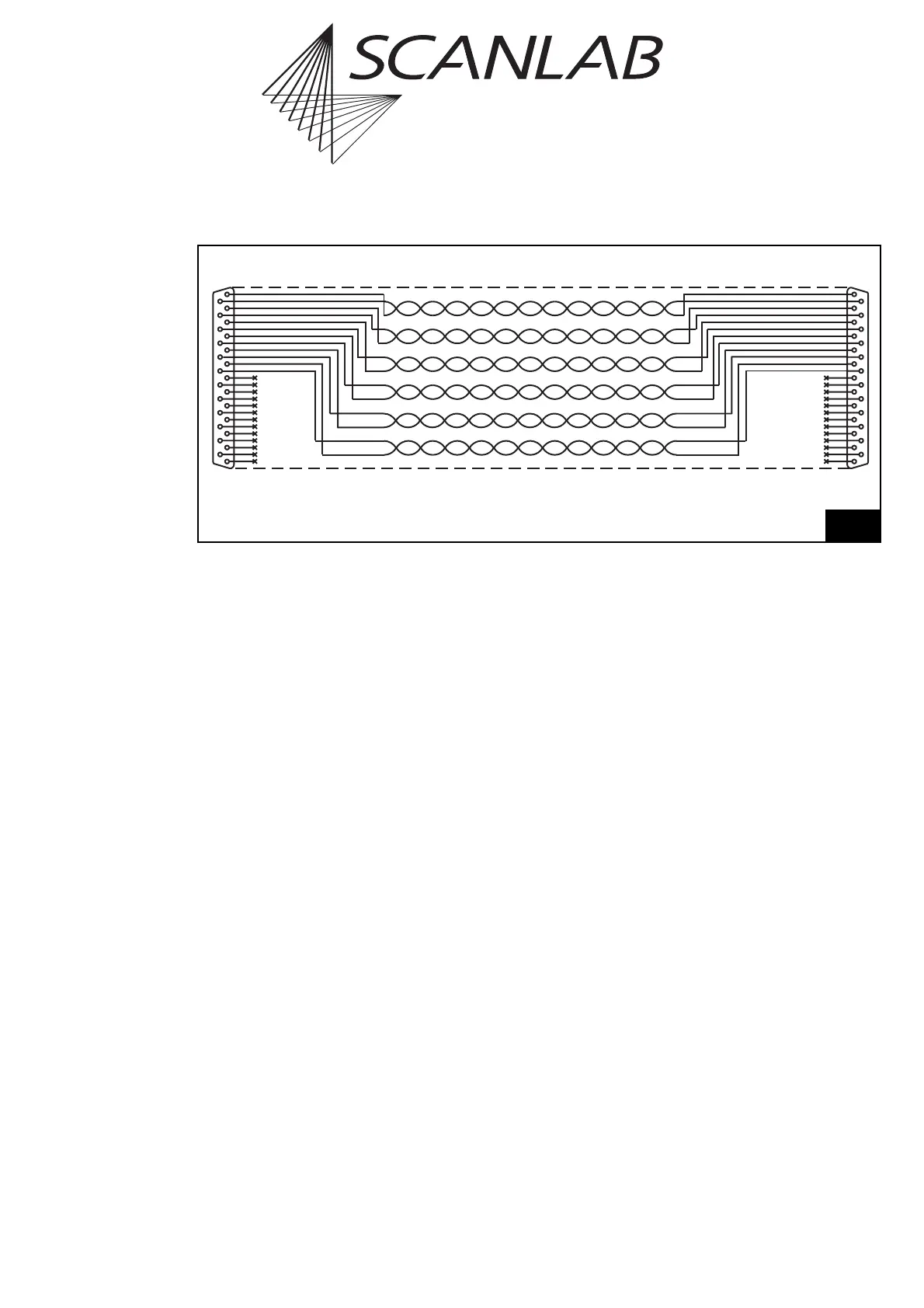

Data cable layout and pin assignments
1
14
2
15
3
16
4
17
5
18
6
19
7
20
8
21
9
22
10
23
11
24
12
25
13
1
14
2
15
3
16
4
17
5
18
6
19
7
20
8
21
9
22
10
23
11
24
12
25
13
CLOCK–
CLOCK+
SYNC–
SYNC+
CHAN1–
CHAN1+
CHAN2–
CHAN2+
CHAN3–
CHAN3+
STATUS–
STATUS+
CLOCK–
CLOCK+
SYNC–
SYNC+
CHAN1–
CHAN1+
CHAN2–
CHAN2+
CHAN3–
CHAN3+
STATUS–
STATUS+
D-SUB
25 pin male
D-SUB
25 pin male
Shielding
