15

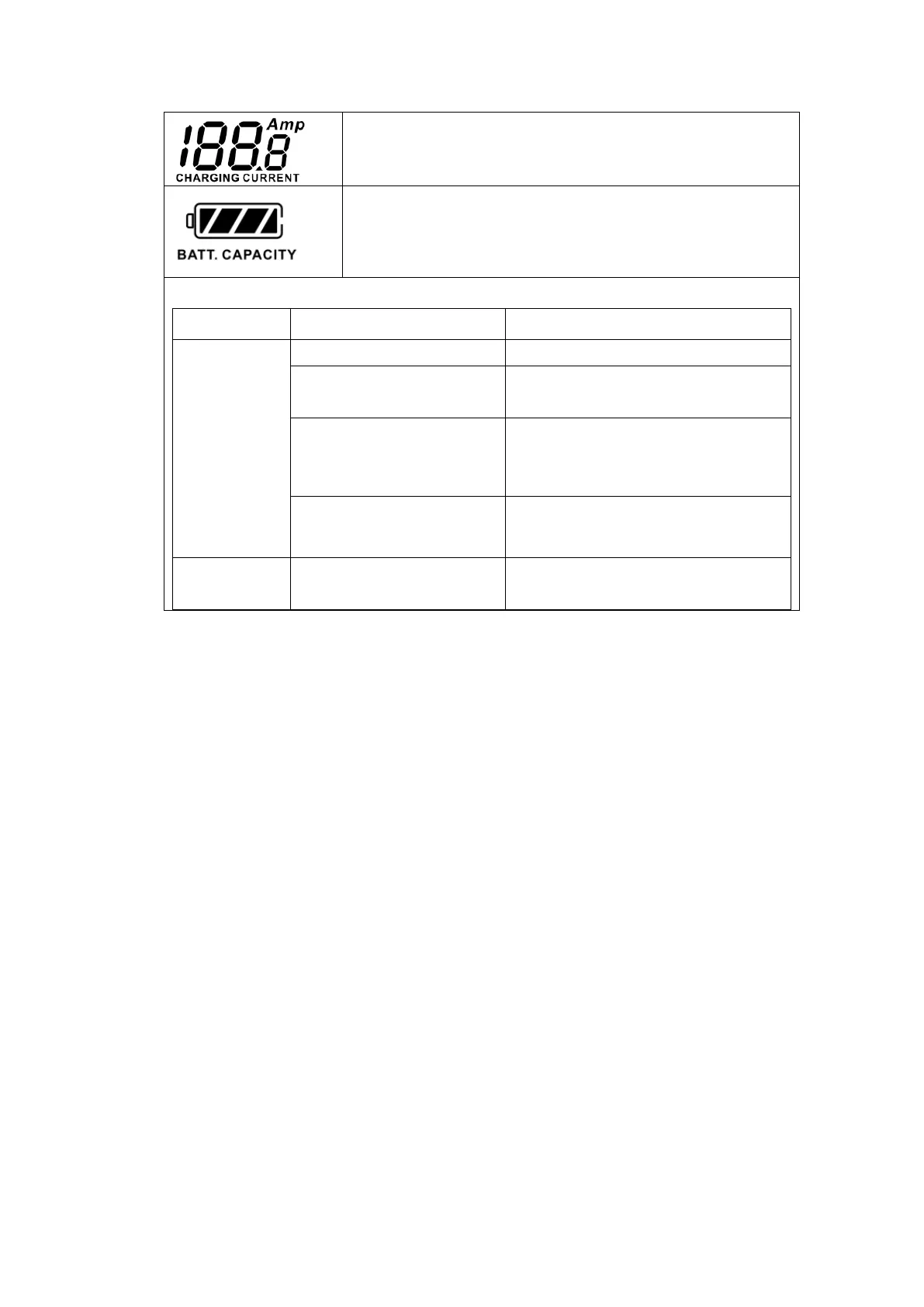

Indicate charging current.
Indicates battery level by 0-24%, 25-49%, 50-74% and
75-100% in battery mode and charging status in line
mode.
Battery Charging Status.
Status
Battery voltage
LCD Display
Constant
Current
mode /
Constant
Voltage
mode
<2V/cell
4 bars will flash in turns.
2 ~ 2.083V/cell
The right bar will be on and the
other three bars will flash in turns.
2.083 ~ 2.167V/cell
The two right bars will be on and
the other two bars will flash in
turns.
> 2.167 V/cell
The three right bars will be on and
the left bar will flash.
Floating
mode
Batteries are fully
charged.
4 bars will be on.
