UMS Series P3

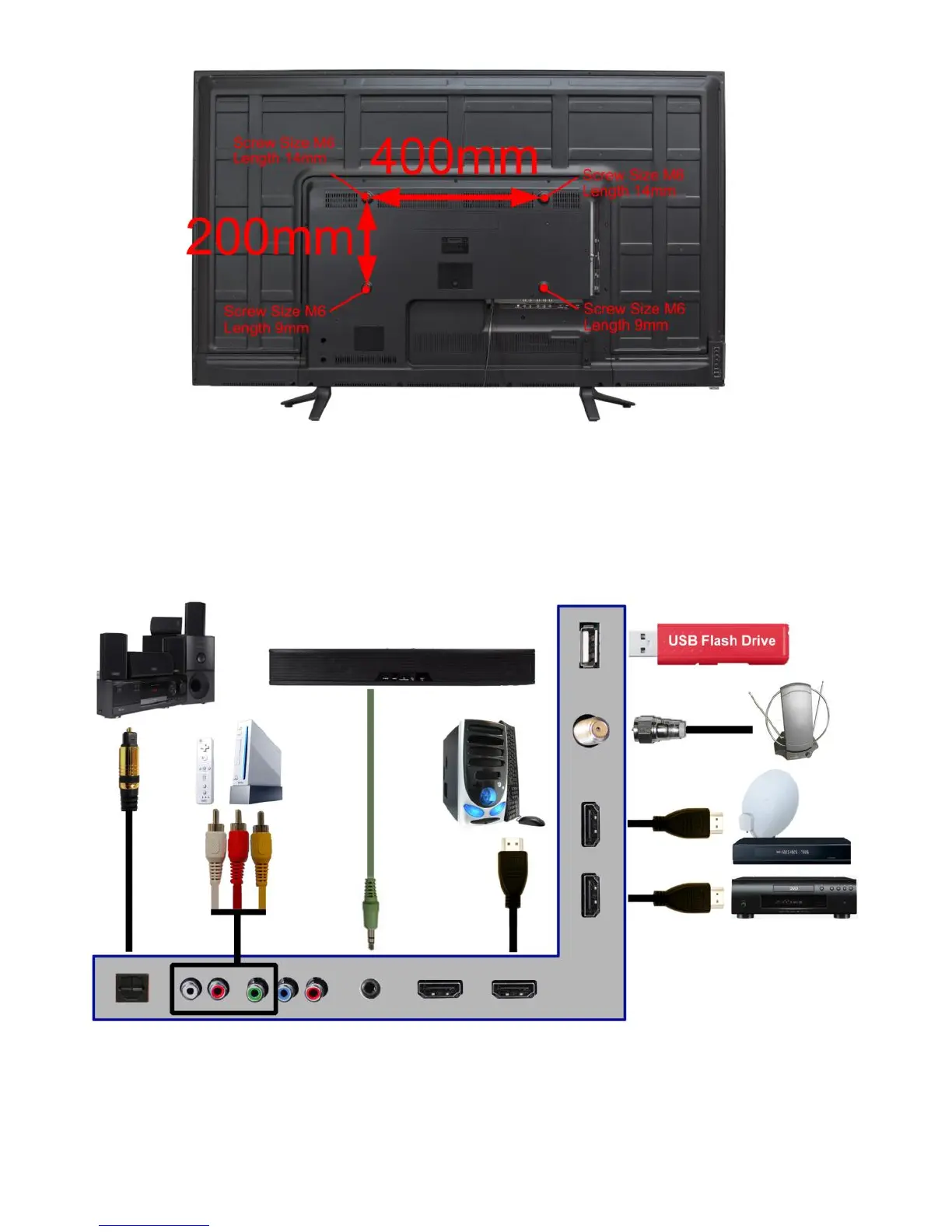

Rear View Mounting Pattern
Mounting Specification: 400mm x 200mm using 4 screws sized at M6 (not included). Top two mounting
holes are 14mm deep and the bottom two mounting holes are 9mm deep.
Connecting Your Cables
The following picture offers a suggestion for connecting most of your audio video equipment.
TV Tuner is optional. It may or may not be equipped in your product. Please check with the authorized seller, authorized distributor
or Sceptre Customer Service for further information.
