SCHABMULLER TSA Series - DC motor Electrical Connection

Operating and maintenance instructions
Electrical connection
Version 1.0 Page 28 of 56
5.3 DC motor
5.3.1 Connection examples to comply with protection class range IP00 – IP54

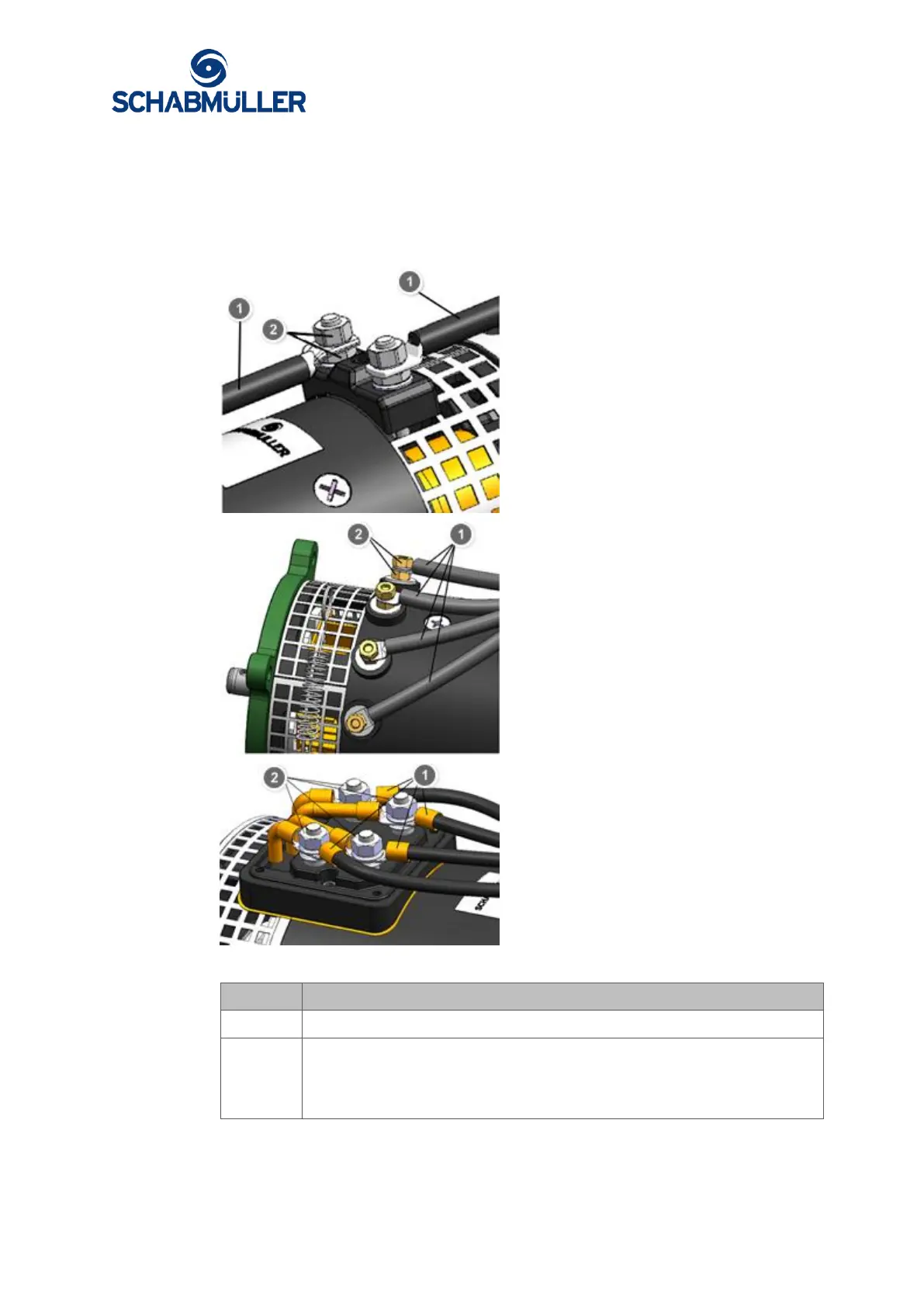

Examples
Item
Designation
1
Possible customer connection
2
Counter nuts against each other, tightening torques:
M6 max. 3.5 Nm
M8 max. 11 Nm
M10 max. 15 Nm
