SCHABMULLER TSA Series - SUMITOMO;SPN 00 E2 Gear Unit Motor Attachment

Operating and maintenance instructions
Installing optional attachments
Version 1.0 Page 41 of 56
6.5.2 Gear manufacturer: SUMITOMO/SPN 00E2
Danger of property damage
 Do not disassemble the gear unit
 Prevent dirt particles from entering the gear unit during installation
 Keep the motor shaft and the clamping ring bore free of oil and grease

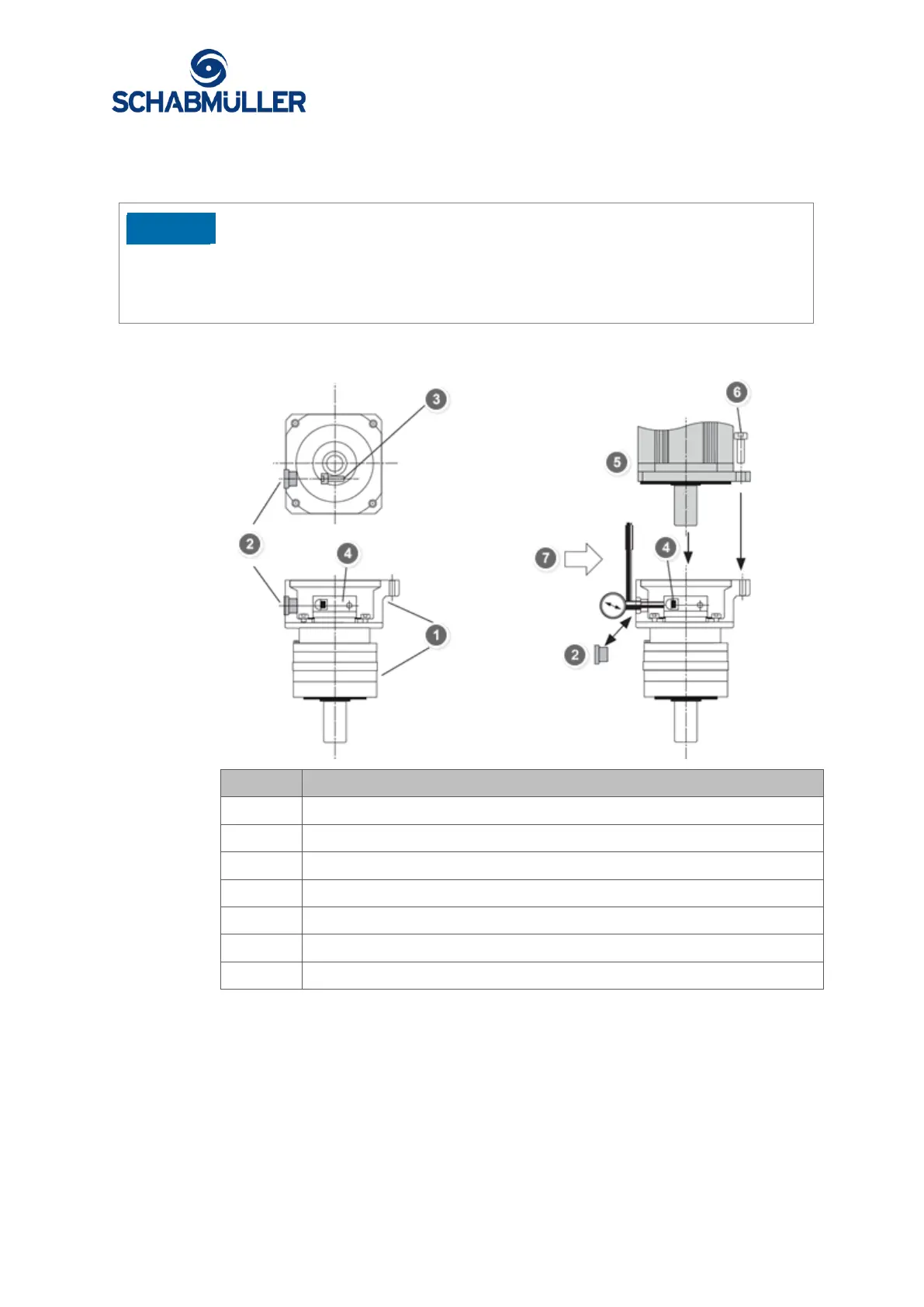

Example
Item
Designation
1
Gearing
2
Mounting opening cover
3
Fixing screw for clamping ring or coupling
4
Clamping ring or coupling
5
Motor
6
Fixing screw for motor
7
Torque wrench.
NOTICE
