Schaudt AD 01 - AD 02 Adapter Layout

Installation instructions for adapter AD 01...03
7
Date: 01.08.2012
822.371 BA / EN
5.2 AD 02
11312111023 456 89 1415 177 16
B4
B1B2 B6
B3
B5
B7- 1
B7- 2
B7- 3
B7- 4

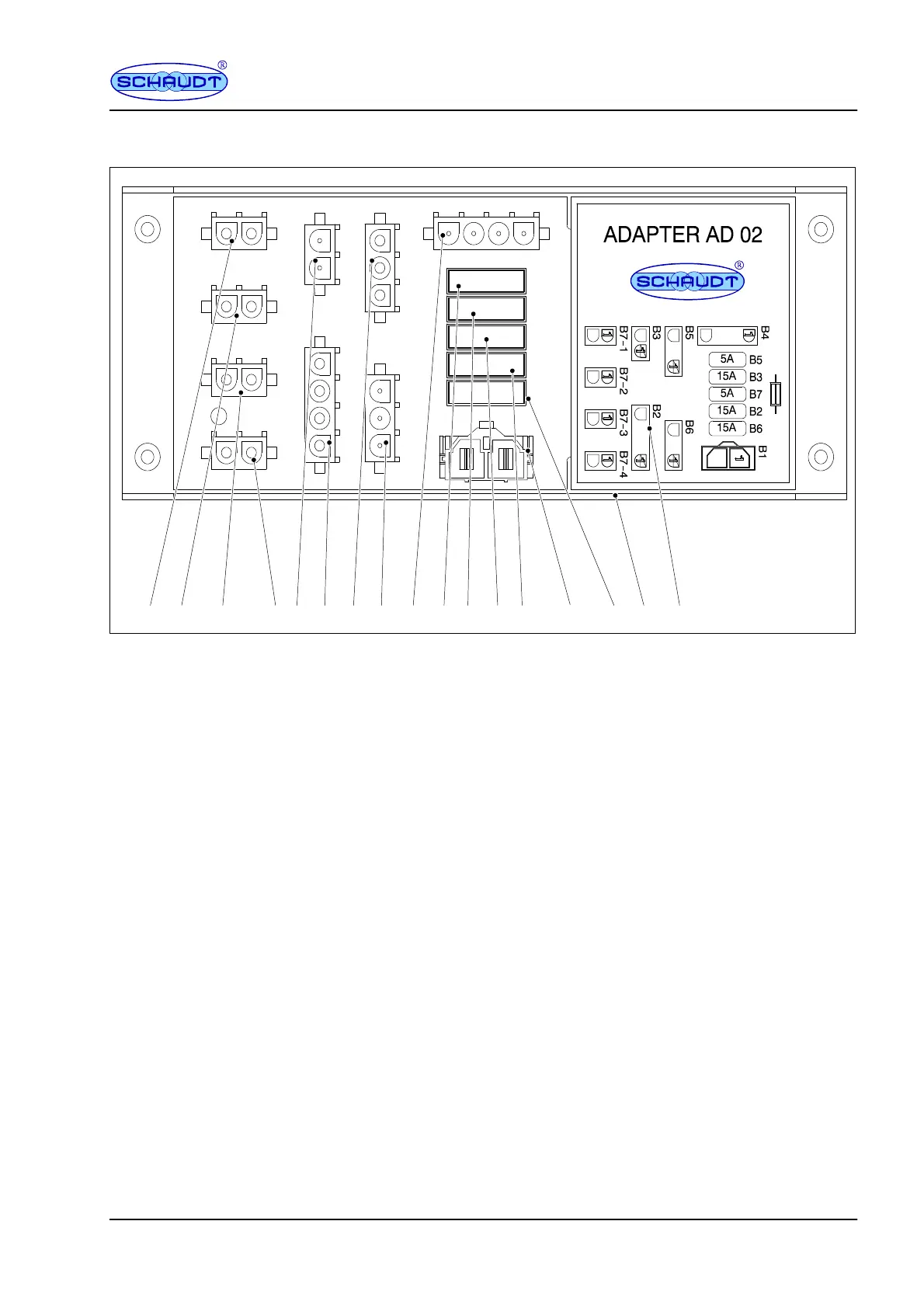

Fig. 3 AD 02 adapter
1 B7-1: Connectors, position light 1
2 B7-1: Connectors, position light 2
3 B7-1: Connectors, position light 3
4 B7-1: Connectors, position light 4
5 B3: 12V for ignition ON
6 B2: 12V, connected from input 1
7 B5: Connectors, fog lights
8 B6: 12V, connected from input 4
9 B4: Connector, vehicle control voltages
10 Flat vehicle fuse, fog lights
11 Flat vehicle fuse, 12V for ignition ON
12 Flat vehicle fuse, position lights
13 Flat vehicle fuse, 12V output 1
14 B14: Connector terminal 15 -- vehicle
15 Flat vehicle fuse, 12V output 4
16 Casing
17 Adhesive label
