Operating manual f o r caravan-charging system CSV 410
6
Date: 20.02.2020 8050102 BA / EN
Y CAUTION!
Total discharge.
Damages the caravan battery/towing vehicle battery:
F Avoid continuous 12V operation. The refrigerator only operates on 12
V when the caravan is hitched to the towing vehicle and the ignition is
switched on.
Maximum permitted charge current 14 A, protected with 15 A
4 Layout
1
1312
1110
2
3
4
5 6 8 9 14 15 16 17 18 19 20 21 22
24
25
26
237

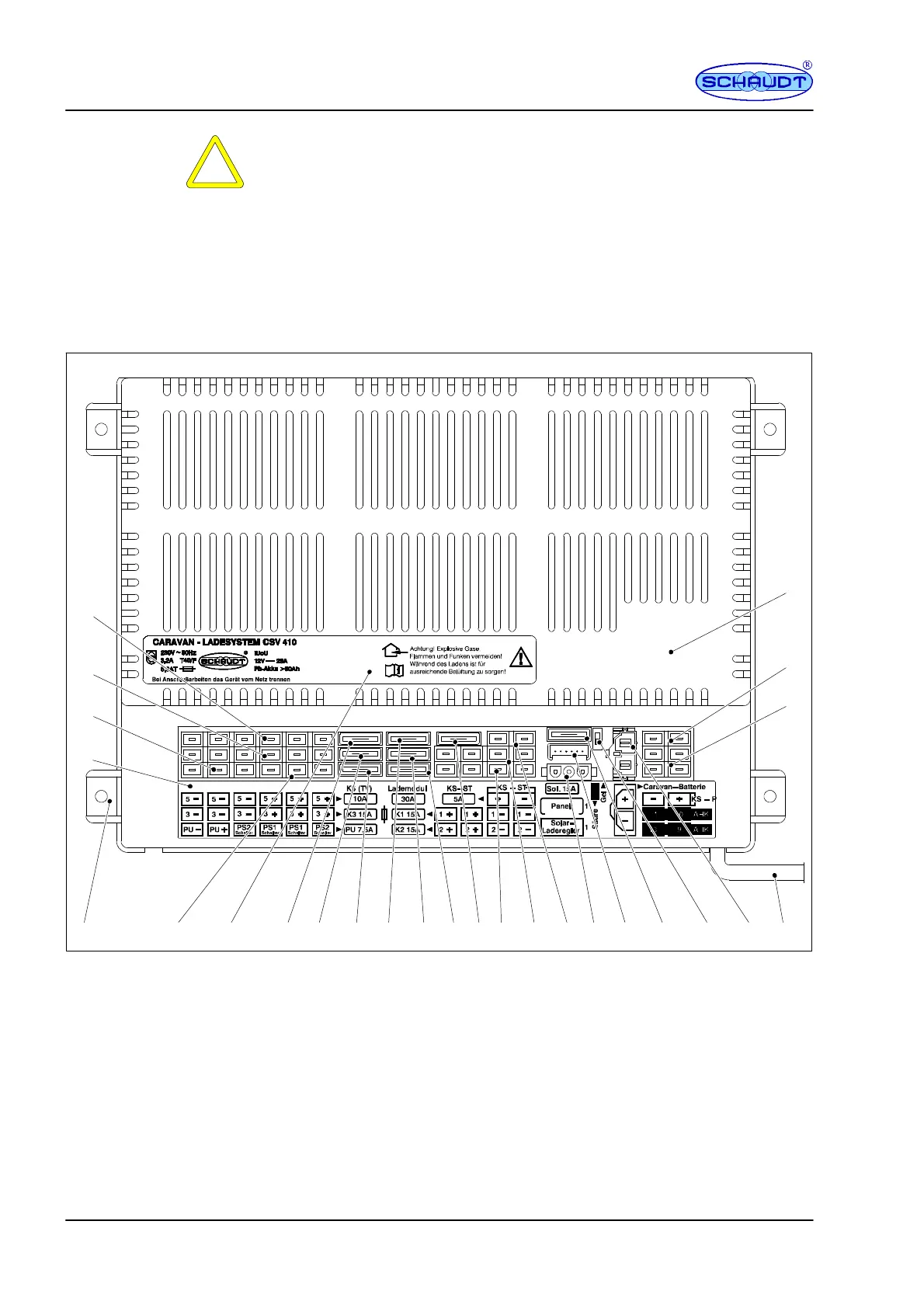

Fig. 2 Front view of CSV 410 caravan charging system
1 Connections for circuit 5 14 Flat vehicle fuse for fridge controller
2 Connections for circuit 3 15 Connections for circuit 2
3 Pump connections 16 Connections for circuit 1
4 Adhesive label 17 Fridge controller connection
5 Bracket with hole 18 Connector for solar charge regulator LR ...
6 Switch 1 and 2 pump connections 19 Indicator and control connections
7 Adhesive label 20 Solar flat fuse
8 Flat vehicle fuse for circuit 5 21 Selector switch for lead/gel/lead-acid battery
9 Flat vehicle fuse for circuit 3 22 Caravan battery connection
10 Flat vehicle fuse for pump 23 Mains cable
11 Flat vehicle fuse for charger module 24 Trailer hitch plugin connection
12 Flat vehicle fuse for circuit 1 25 Refrigerator supply connection
13 Flat vehicle fuse for circuit 2 26 Casing
Battery charging with
solar charging regulator
