3 Layout
12345678
12
9
1311 14
10

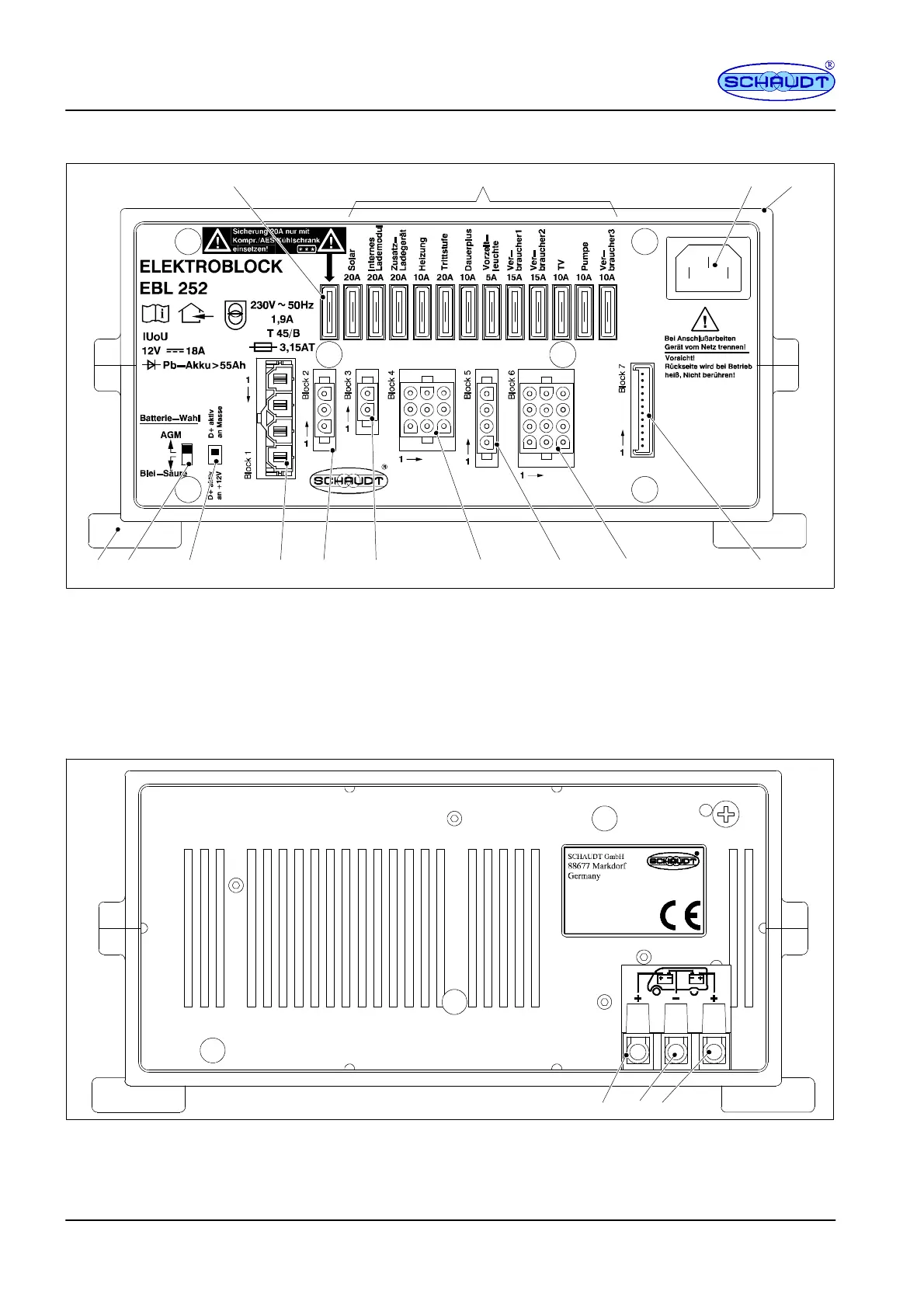

Fig. 2 Layout of the EBL 252 electroblock (front)
1 IT ... / LT ... control and display panel connector
2 Block 6: Output D+, consumer connected*
3 Block 5: Input D+, battery sensor*
4 Block 4: Spare, consumer not connected*
5 Block 3: Auxiliary charger*
6 Block 2: Solar regulator*
7 Block 1: Refrigerator *
* Also see the block diagram (page 12)
8 D+ signal changeover switch
9 Lead-acid/AGM battery selector switch
10 Installation feet
11 Compressor refrigerator fuse
12 Flat vehicle fuses
13 230VAC mains connection
14 Housing
123
Fig. 3 Layout of the EBL 252 electroblock (rear)
1 + connector, leisure battery
2 Earth connector
3 + connector, starter battery
