Instruction Manual for Electroblock EBL 271
13
Date: 14.02.2011
811.523 BA / EN
E Design
12345678
12
9
13
11
14
10

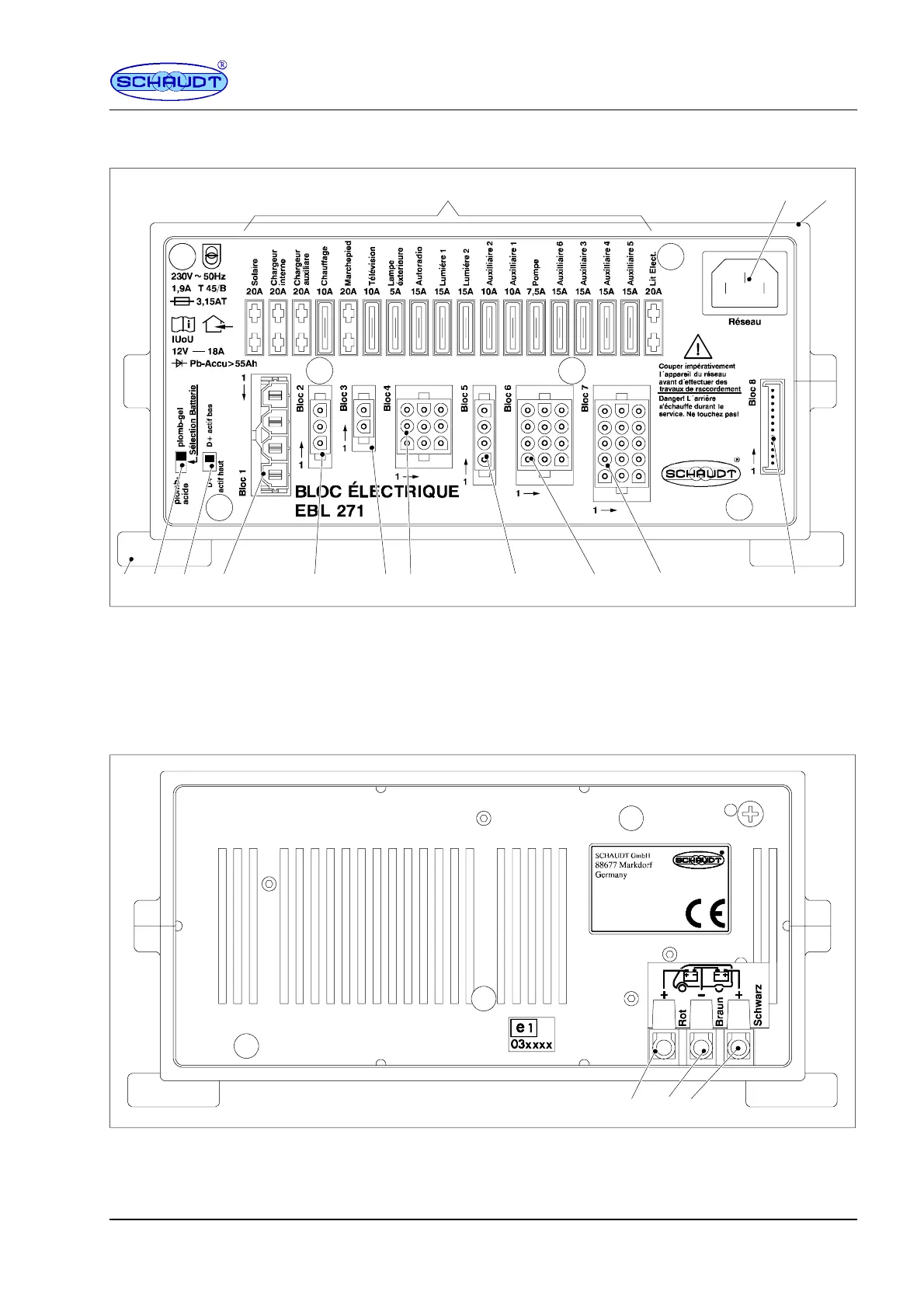

Fig. 3 Layout of the EBL 271 electroblock (front)
1 Block 8: IT ... / LT ... control and switch panel
2 Block 7: Aux 3...6, fold-away bed, marker lights
3 Block 6: Aux 1, 2, lighting, continual positive for radio
4 Block 5: D+ (input, output), battery sensor
5 Block 4: Consumers, not connected
6 Block 3: Additional charger
7 Block 2: Solar regulator
8 Block 1: Refrigerator
9 D+ signal changeover switch
10 Selector switch for acid/gel battery
11 Assembly flaps
12 Flat vehicle fuses
13 Mains connector
14 Housing
123
Fig. 4 Layout of EBL 271 electroblock (rear)
1 Connector for living area battery
2 Ground connector
3 Connector for starter battery
