Schauer CM6A - Charge Modes Explained; Battery Types and Capacity

6
During ECO mode, the power drawn is less than 0.7W, equal to power consumption of
0.02kWh per day; after the battery is fully charged and during long term maintenance stage,
the total power consumption is around 0.06kWh per day.
RAPID CHARGE / SILENT CHARGE (NIGHT MODE) AND MAINTENANCE:
Rapid charge mode: Uses the rated maximum charging current to ensure the fastest
charging time, the fan of the unit will turn on to ensure the maximum charging current.
Silent charge mode (Night mode): Charges at a slightly reduced charge rate for some
quiet application such as used on Caravan at night, the cooling fan of the unit is not
required.
Maintenance mode: Ideal and recommended for long term battery maintenance.

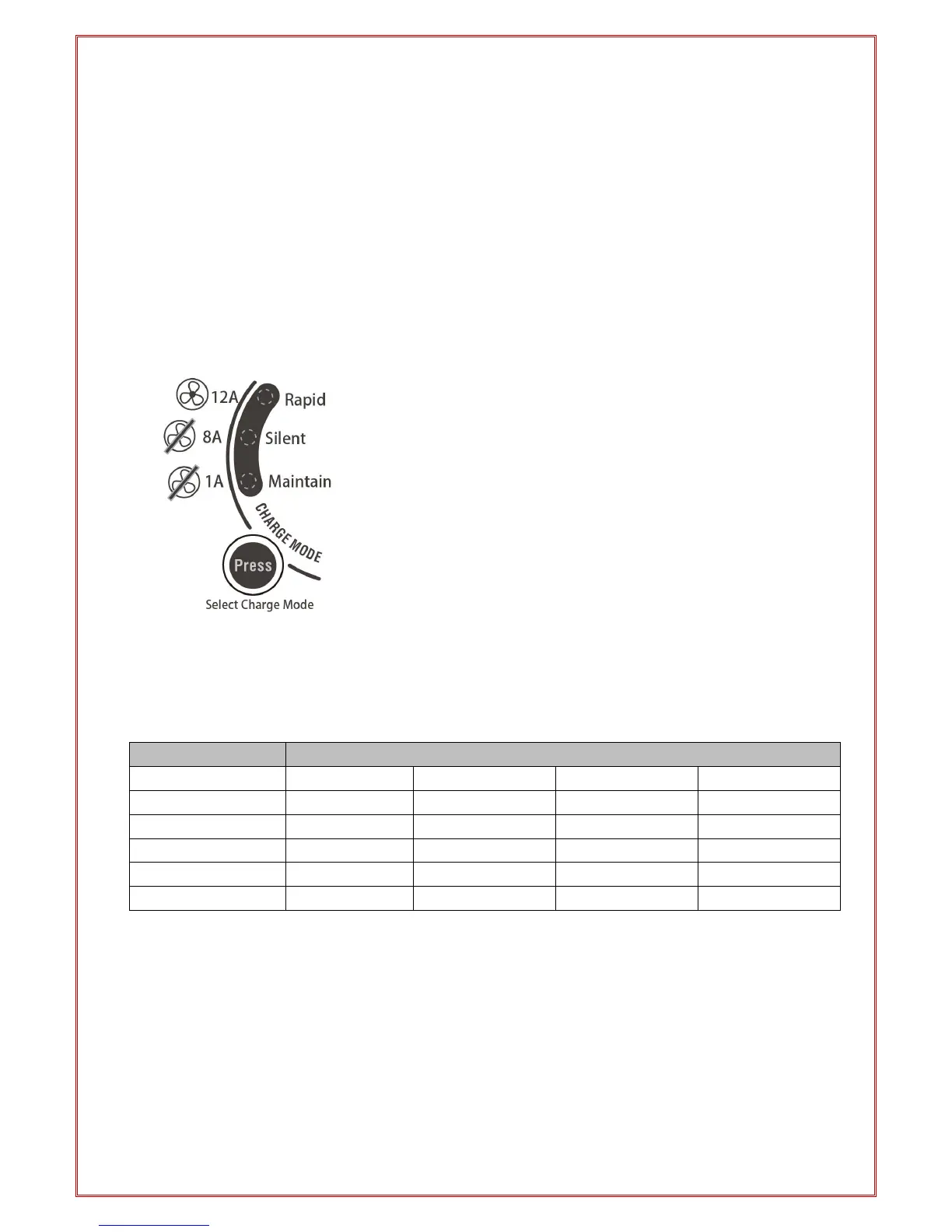

Rapid charge mode: Uses the rated maximum
charging current to ensure the fastest charging time,
the fan of the unit will turn on to ensure the maximum
charging current.
Silent charge mode (Night mode): Charges at a
slightly reduced charge rate for some quiet application
such as used on Caravan at night, the cooling fan of the
unit is not required.
Maintenance mode: Ideal and recommended for long
term battery maintenance.
Note: Image shows 12A model
BATTERY TYPES & CAPACITY:
 Suits all Lead Acid Type Batteries. (GEL, WET, AGM, Calcium)
 Adjustable charge rate: 12V volt battery
CHARGE RATE
BATTERY SIZE (12V)
Deep cycle (AH)
Automotive (CCA)
Marine (MCA)
Time (Hours)
2Amp
14-40
80-240
110-330
7-24
4Amp
30-80
180-480
250-650
7-24
6Amp
40-120
240-720
330-1000
7-24
8Amp
60-160
360-1000
500-1300
7-24
12Amp
80-240
480-1440
660-2000
7-24
Some batteries may be able to handle a higher Charge Current; Check with the battery
Manufacturer when charging batteries with small capacity.
ELECTRICAL PARTS:
Delivered with:
 A.C Power Cord:
o 6 feet with UL 2pin Plug
 Output Lead:
o 4 feet with Trailer Connector
 Extension Cord:
