m Warning!
Never run the engine without the air lter element
installed.
Care of the guide rail
Turn the rail around every time you have the chain
sharpened or replaced. This will avoid a one-sided wear
of the rail, especially at the top and bottom.

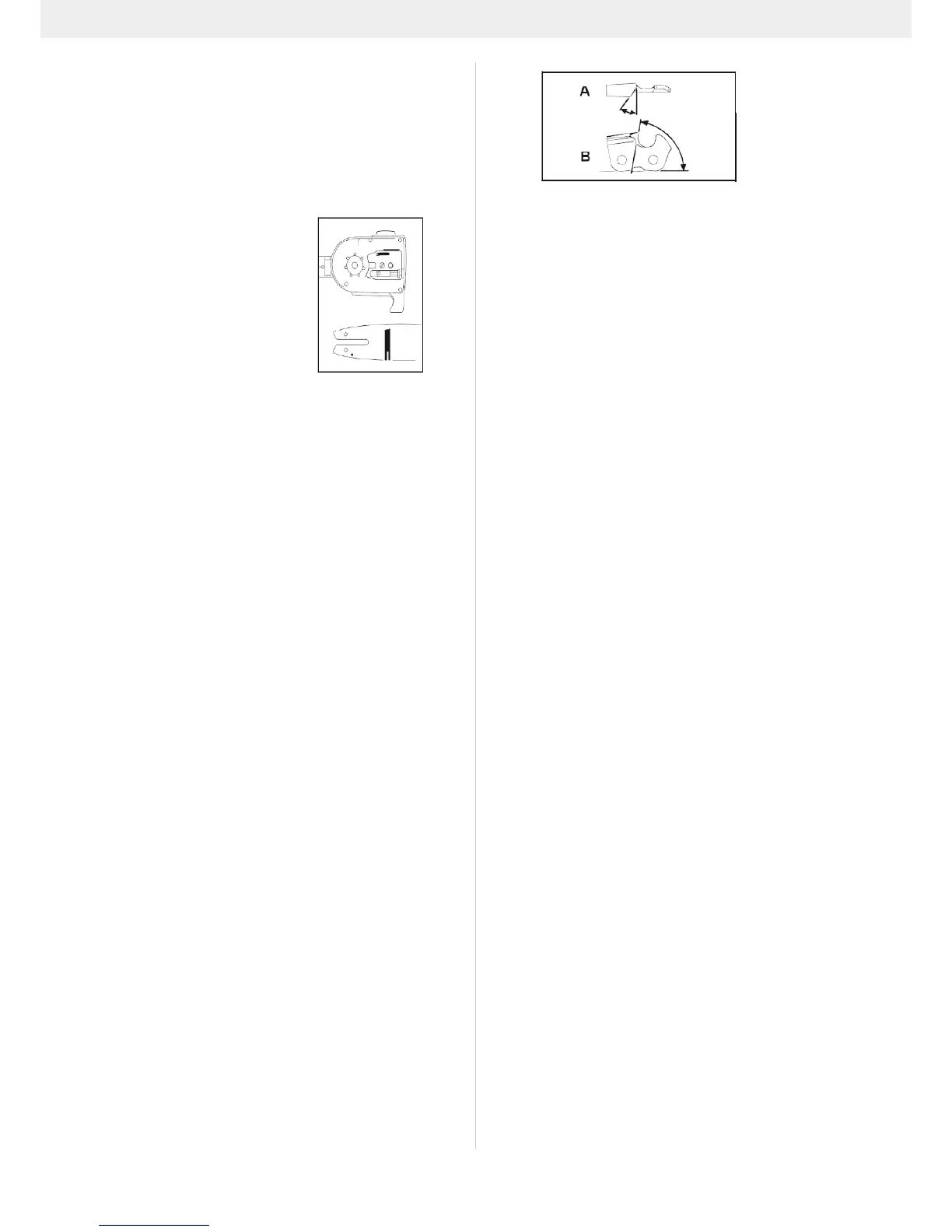

Regularly clean
1 = the opening for the oil supply
2 = the oil passage
3 = the raceway groove of the rai
Servicing and sharpening of saw chain
The correct sharpened chain
Working effectively with the chainsaw is only possible if
the chain is in good condition and
sharp. This also reduces the risk of kickback. The chain
can be re-sharpened by any dealer. Do not attempt
to sharpen the chain yourself unless you have the
necessary special tools and experience. A properly
sharpened chain goes way through the wood and it
requires very little pressure. Do not work with a dull or
damaged chain. It increases physical exertion, increase
the vibrations and leads to unsatisfactory results and
higher wear.
• Clean the chain.
• Check it.
• Replace damaged or worn parts with matching spare
parts they are in the shape and size of the original
parts as necessary.
• Sharpening a chain should be performed only by
experienced users!
Notice. Below the angle and dimensions If the chain
is not properly sharpened or the depth is too small,
there is a higher risk of reversion effects and resulting
injuries! The chain cannot be xed on the guide rail. It
is therefore best to remove the chain from the rail and
then sharpen.
• Select the appropriate tools for the chain pitch
sharpening tool. See "Specications" for the allowed
chain pitches.
The chain pitch (for example 3/8 ") is highlighted in the
depth of each blade. Use only special les for chainsaws!
Other les have the wrong shape and the wrong cut.
Select the le according to the diameter of your chain
pitch. Make sure to observe the following angle when
sharpening the chain diameter.
3
2
1
A = ling angle
B = the angle of the side plate
The angle must also be maintained for all knives.
For irregular angles, the chain is run irregularly, wear
quickly and break down prematurely.
Since these requirements can only be met with sufcient
and regular exercise:
• A File Holder must be used when sharpening the saw
chain by hand. The correct ling angle marked on it.
• Hold the le horizontally (at a right angle to the guide
rail) and le according to the angle mark on the le
holder. Support the le holder on the top plate and
depth gauge.
• File down. The knife is always from the inside to the
outside
• The le sharpens only in forward motion. Lift it off in
the backward motion.
• Do not touch the dynamic links with the le.
• Turn the le regularly continue to avoid a onesided
wear.
• Remove to remove a piece of hard wood, bones raw
edges.
All knives must have the same length, otherwise they
will also vary. As a result, the chain is irregular and it
increases the risk of going broke.
Check the hedge trimmer for obvious faults such as:
– loose attachments
– worn or damaged components
– bent, broken or damaged cutting tools
– correctly attached and working covers and safety
devices
– wear, in particular, cutting tool play
Immediately replace damaged or blunt cutting tools,
even in the event of minor damage.
Oiling the gears
Oil the gears every 10 to 20 operating hours.
1 Position the grease gun at the lubricating nipples (10).
2 Insert some grease.
Oil the cutting tools and the angle adjustment with
environmentally friendly lubricant.
Setting the idle speed Fig. 50
If the cutting tool is still moving when the device is in idle,
change the idle speed.
1. Let the motor warm up for 3-5 minutes
(not at high speed!).
2. Turn the adjusting screw (S): clockwise
-- The idle speed will increase (+)
anti-clockwise
