ODOR ALERT!
Do not install air
gap on outlet side
of interceptor.
ODOR ALERT!
Interceptor is not a sewer gas trap.
All upstream fixtures must be trapped

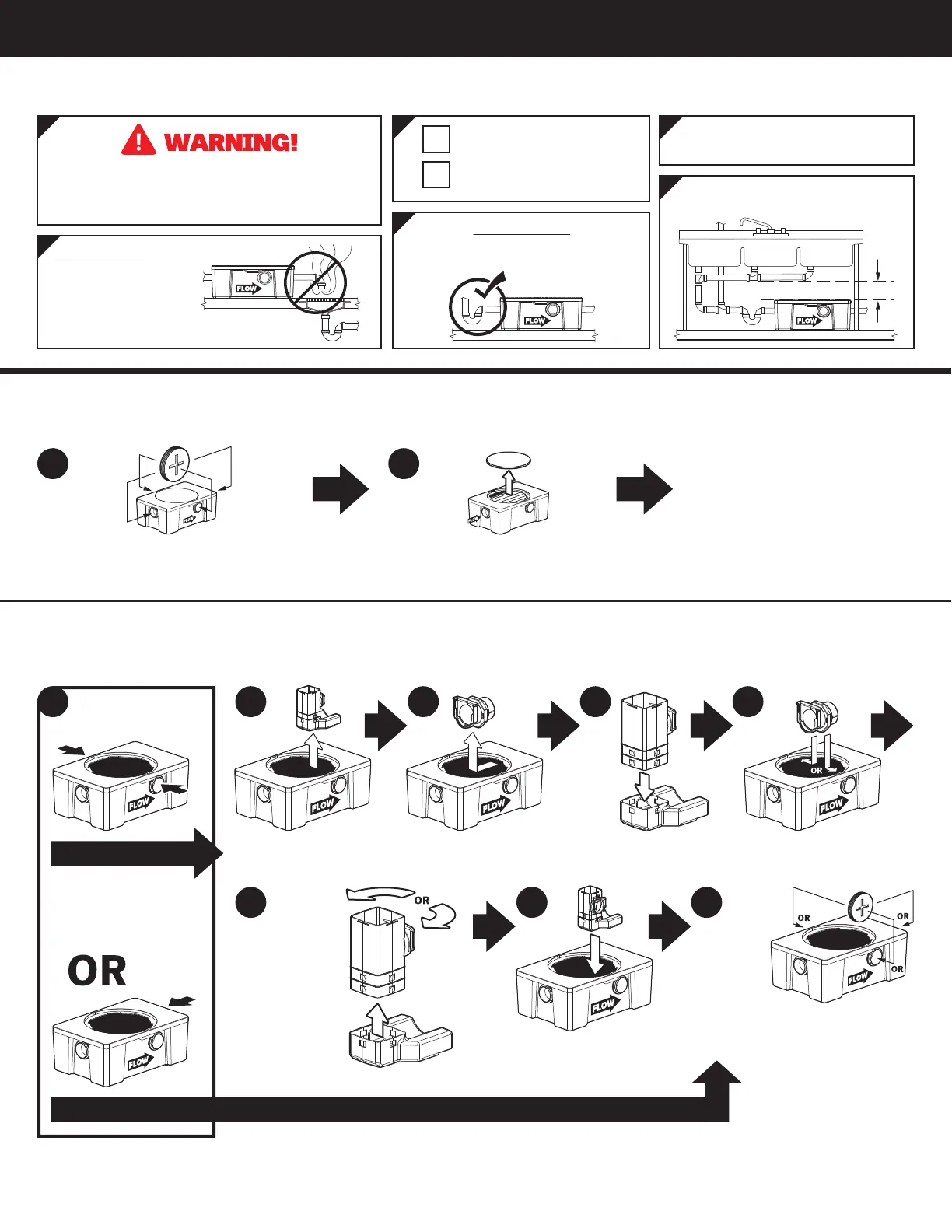

ON THE FLOOR INSTALLATION
Special Precautions
Read all instructions
before installation
Install in conformance
with all local codes
Install interceptor as close as
possible to fixtures being served
DO NOT AIR TEST UNIT OR RISER SYSTEM!
Doing so may result in property damage,
personal injury or death.
1 2 3
4
5
Provide at least 5-1/2" clearance
above unit for routine maintenance.
5-1/2" min.
5-1/2" min.
5-1/2" min.
6
Page 4 of 9
GB2 Installation Guide
Cap all connection points with 4" cleanout
plugs using pipe thread sealant or tape
approved for use with plastics.
Remove cover and fill unit completely
with water. Inspect for leaks.
1a 1b
Leak? Call customer
care at 913-951-3300
8a – 5p M – F CST
1 Test tank for water tightness
2 Configure outlet diffuser and install cleanout plugs
2h
Remove diffuser
from saddle.
Side outlet
Straight-through
Remove
saddle adapter.
Remove
diffuser foot.
2b 2c 2d2a
Install saddle adapter
on desired outlet.
2e
Install
cleanout
plugs into
unused outlet
connections using
pipe thread sealant or tape
approved for use with plastics.
2f
Seat diffuser firmly
into saddle.
2g
Choose outlet
location.
Rotate diffuser
top toward
desired outlet,
while ensuring
foot is pointed
toward the
back wall of the
unit. Reaach
to foot.
