BURIED INSTALLATION
Special Precautions
DO NOT AIR TEST UNIT
OR RISER SYSTEM!
Doing so may result in
property damage,
personal injury or death.
Read all
instructions
before installation
Install in
conformance
with all local codes
Install
interceptor
as close as
possible to
fixtures
being served
2 Risers (25") Max
Max Water Level
Risers are not designed
to retain water
1 2 3 4 5
Page 7 of 9
GB2 Installation Guide
Cap all connection points with 4" cleanout
plugs using pipe thread sealant or tape
approved for use with plastics.
Remove cover and fill unit completely
with water. Inspect for leaks.
1a 1b
Leak? Call customer
care at 913-951-3300
8a – 5p M – F CST

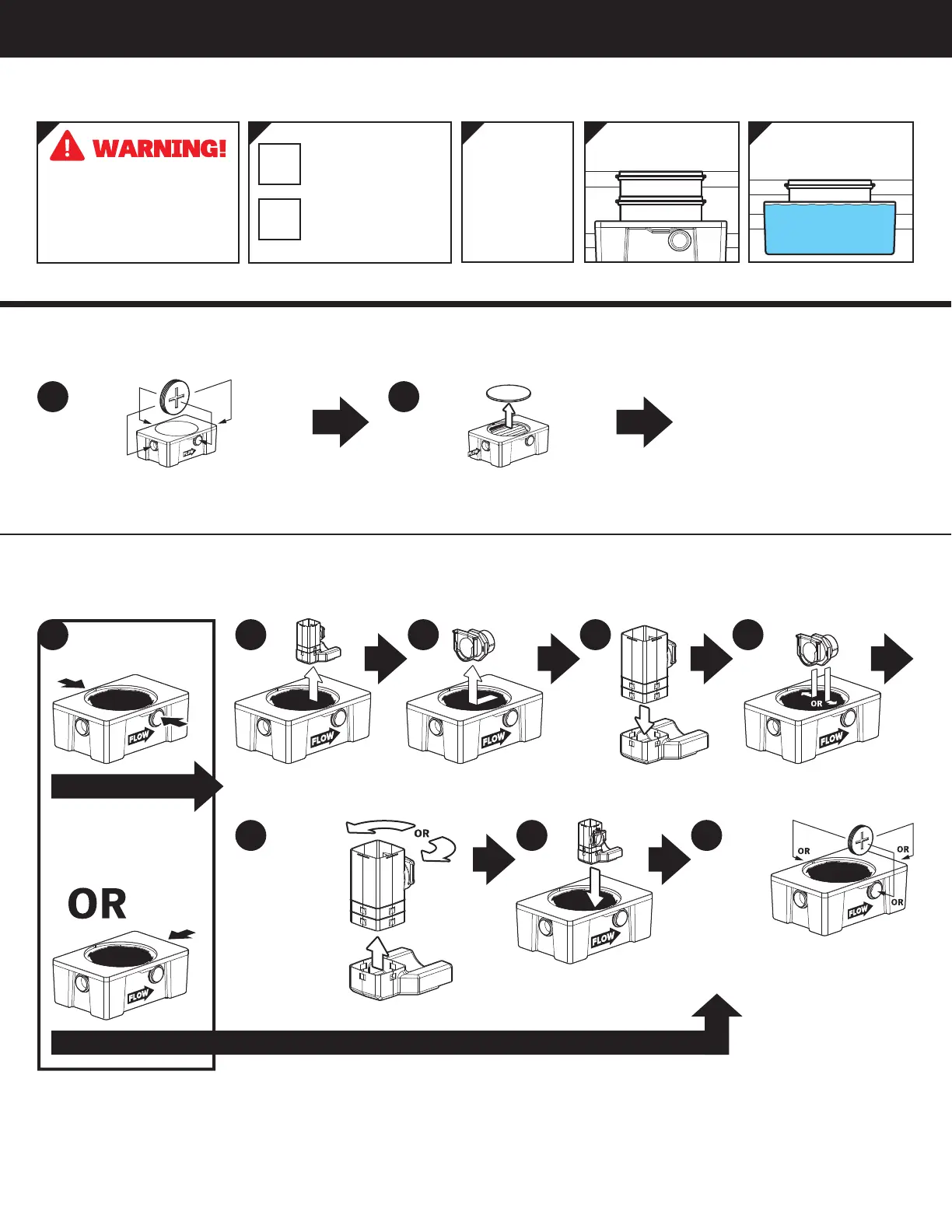

1 Test tank for water tightness
2 Configure outlet diffuser and install cleanout plugs
2h
Remove diffuser
from saddle.
Side outlet
Straight-through
Remove
saddle adapter.
Remove
diffuser foot.
2b 2c 2d2a
Install saddle adapter
on desired outlet.
2e
Install
cleanout
plugs into
unused outlet
connections using
pipe thread sealant or tape
approved for use with plastics.
2f
Seat diffuser firmly
into saddle.
2g
Choose outlet
location.
Rotate diffuser
top toward
desired outlet,
while ensuring
foot is pointed
toward the
back wall of the
unit. Reaach
to foot.
