Schier GB2 - Connecting Inlet and Outlet Piping; Piping System Wet or Air Testing

ON THE FLOOR INSTALLATION

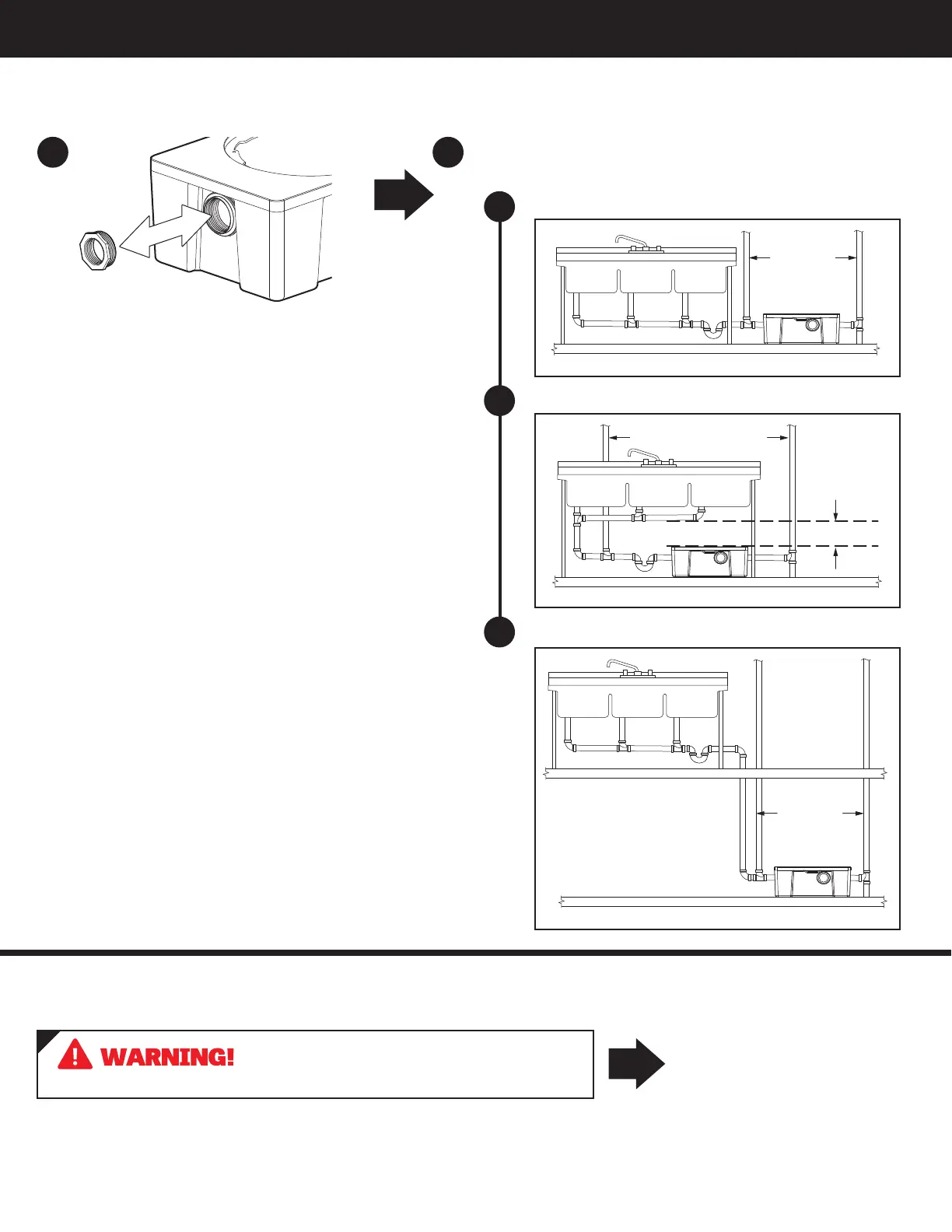

Choose inlet and outlet fiings (included)
based on pipe size.
4a
4b
3" FPT
4" FPT
4" FPT
4" FPT
Connect piping using pipe thread sealant or tape approved
for use with plastics. Ensure all upstream fixtures are
trapped. Vent per local code.
OR
OR
OR
OR
OR
OR
4b2
4b3
Page 6 of 9
4 Connect Piping
GB2 Installation Guide
vent per
local code
Next to Sink
5-1/2" min.
vent per local code
Under Sink
vent per
local code
Floor Below
4b1
5 Wet or Air Test Piping Per Local Code
Doing so may result in property damage, personal injury or death.
DO NOT AIR TEST UNIT OR RISER SYSTEM!
1
Leak? Call customer care at
913-951-3300
8a – 5p M – F CST
