Extra information for ...Max – size M

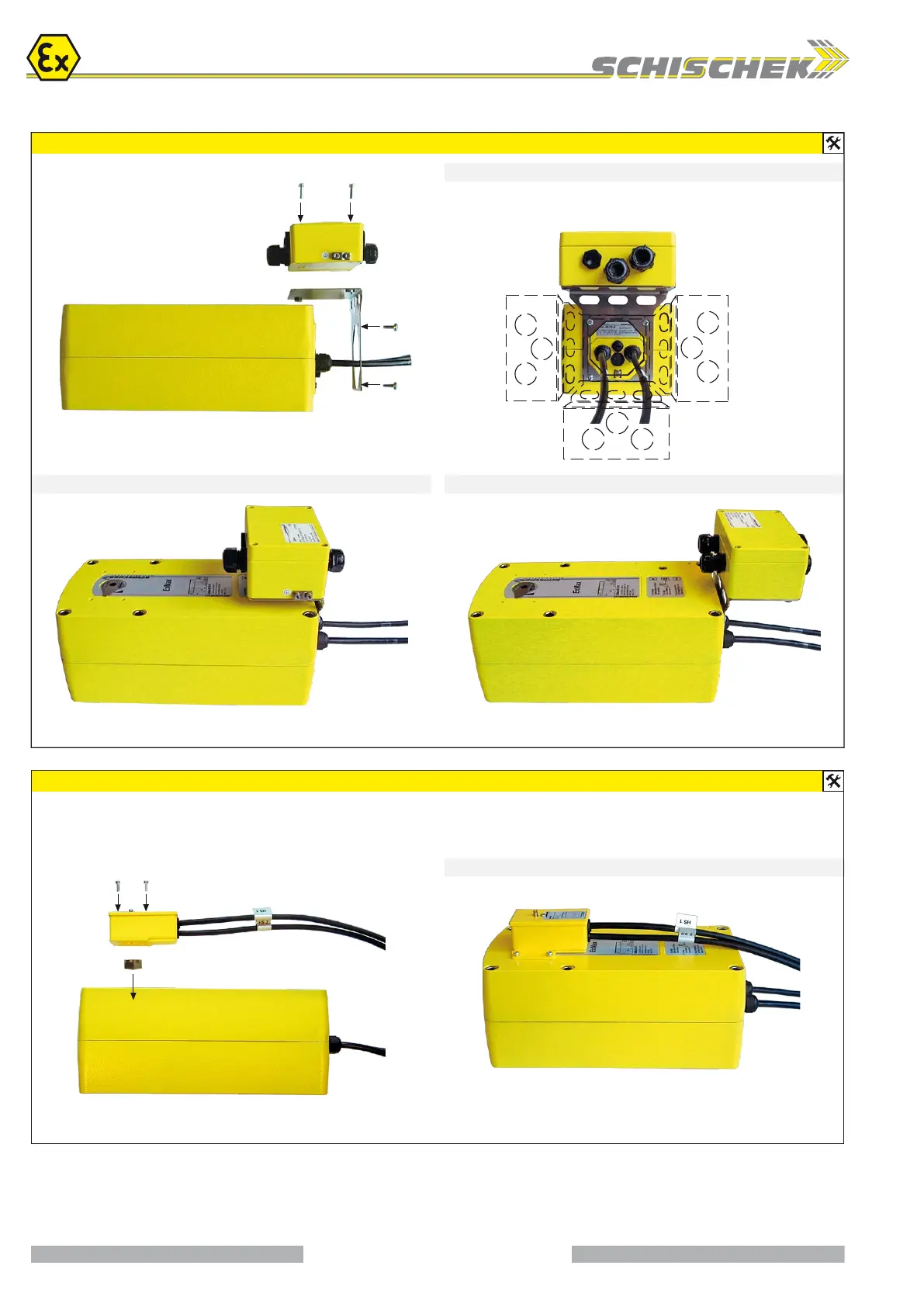

A) Screw mounting bracket MKK-M with
4 screws to actuator
B) Screw terminal box to mounting bracket
► Mounting of terminal boxes ...Box to actuator via mounting bracket MKK-M (accessory)
Terminal box mounted above the actuator Terminal box mounted beside the actuator
Mounting bracket can be mounted every 90°
A) Place square connection part on actuator’s shaft
B) Mount ...Switch and fix it with screws
► Mounting of auxiliary switch ...Switch to actuator
...Max with mounted ...Switch
