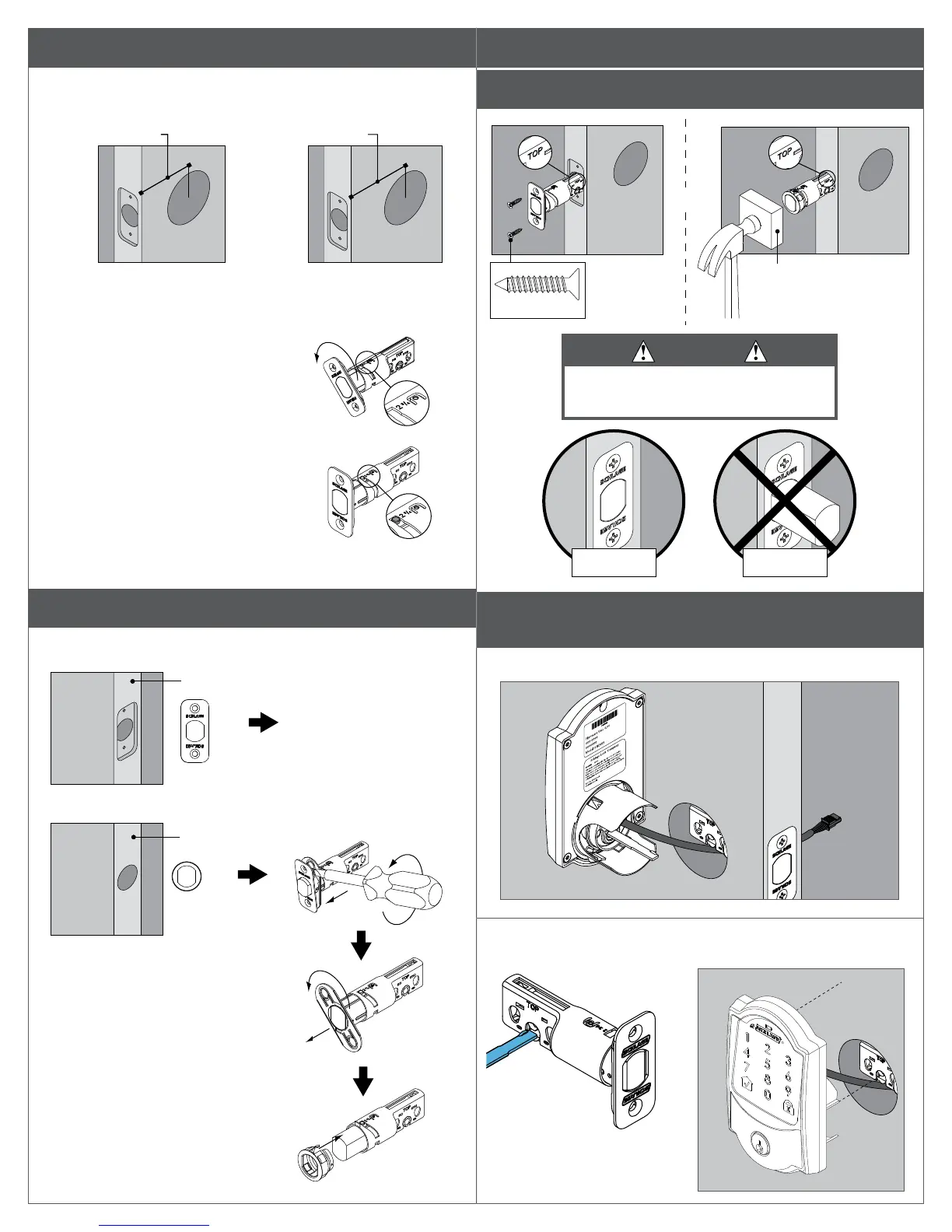

C Adjust bolt length, if necessary.
Measure the dimension shown. If the measurement is 2C\v” (70
mm), extend the bolt.
2³⁄₈" (60 mm)
OR
2C\v" (70 mm)
No adjustment needed. Rotate faceplate
180° to extend.
Extended
D Change faceplate, if necessary.
Choose the drawing that matches your door edge.
Door Edge
No change necessary.
OR
Door Edge
Install Lock
1 Install the bolt.
OR
Wood Block
(Not Included)
Actual Size
CAUTION
Bolt must remain retracted
throughout installation!
Retracted Extended
2 Install the touchscreen on the outside of the
door.
2a Route wire under the bolt.
2b Align tailpiece to slot in deadbolt. Push assembly
until secure on door.
The bump on the tailpiece
aligns with slot on bolt.
To Next Page
