Schlage L9080 - L-Series (except L9060;LV9060 Outside); L-Series L9060;LV9060 Outside; Other Straight Cam Applications

L Service Manual
108
Full Size Interchangeable Cores

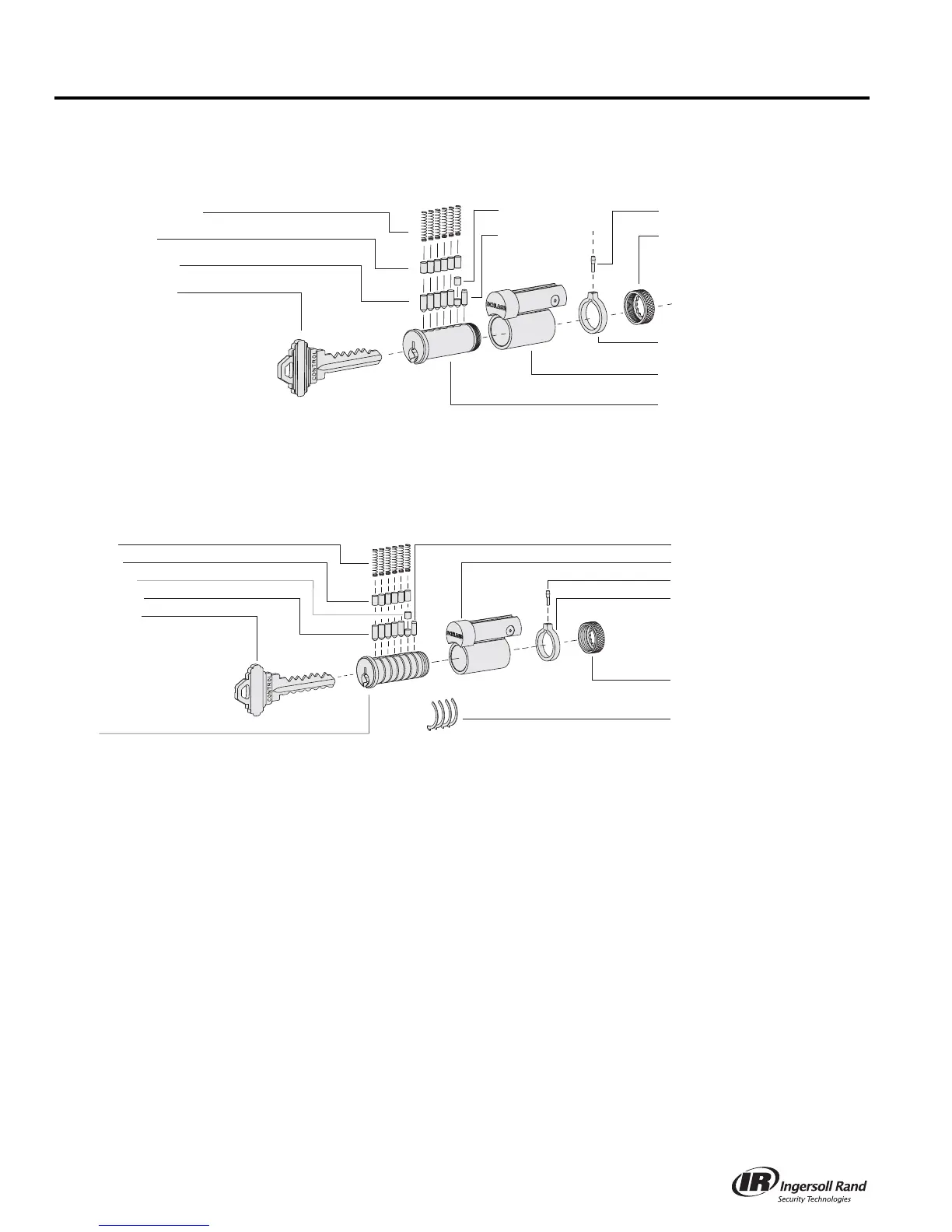

Exploded View – Full Size Classic
Exploded View – Full Size Hotel Classic
Tumbler springs
Top pins
Bottom pins
Control key
Master pins
Control pin
Actuating pin
Retainer cap
Actuating ring
Shell
Plug
Assembled with retainer cap
pin and cap pin spring
Control pin
Shell
Actuating pin
Actuating ring
Retainer cap
Stop rings (4)
Shown for right hand (RH) doors.
Springs
Top pins
Master pin
Bottom pins
Control key
Notched to bypass stop rings.
Plug
Assembled with retainer cap pin
and cap pin spring.
