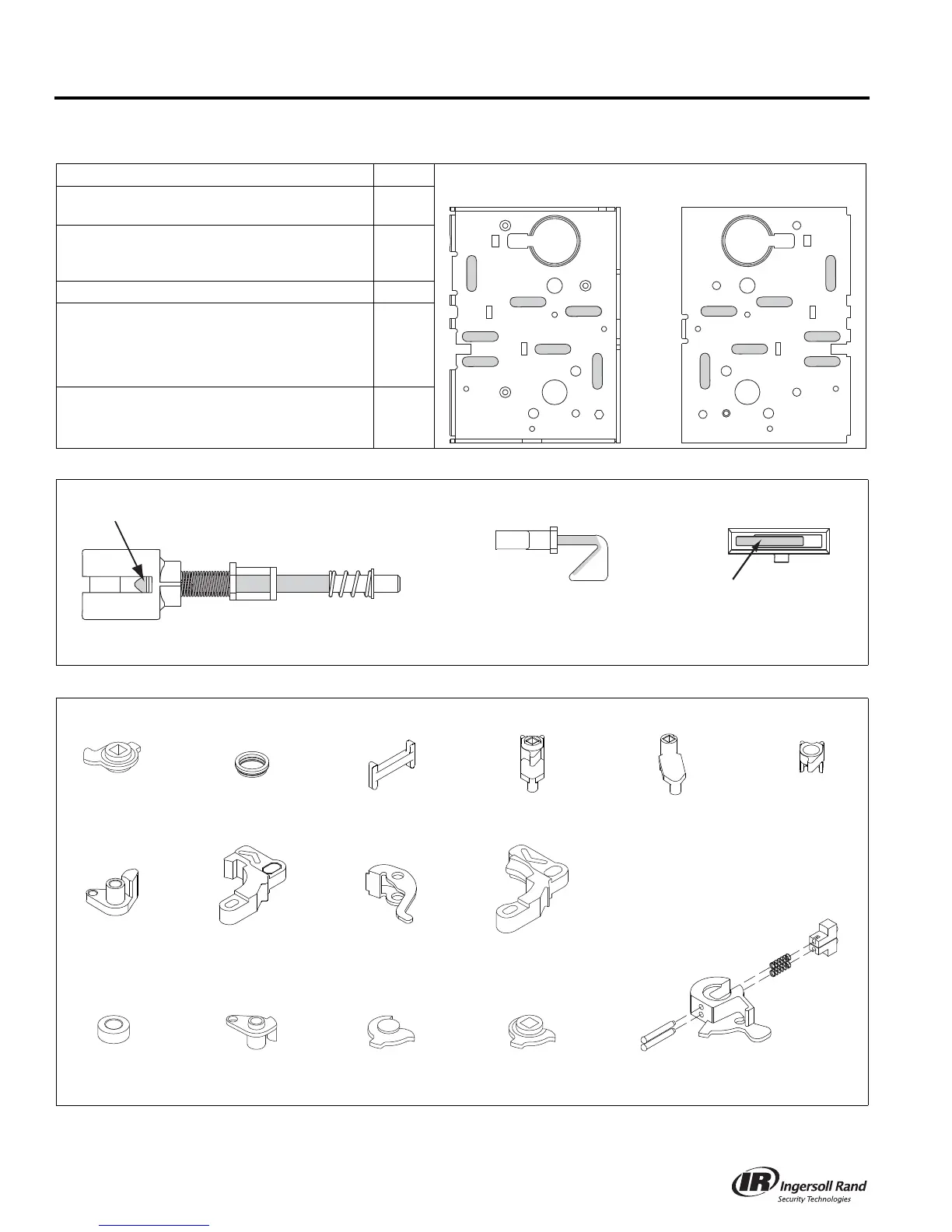

Lubrication Specifications
Lock Function Area Case and Cover: 150 Milligrams minimum in each area A, B and C
L9010
L9080
LV9080
L9082
LV9082 A
L460
L462
L463
L480
L496
L9460
L9462
L9463
L9464
B
L9465 L9466 L9473 A, B
L9040
LV9040
L9050
LV9050
L9060
LV9060
L9071
LV9071
L9076
LV9076
L9077
LV9077
L9080
LV9080
L9080EL
LV9080EL
L9080EU
LV9080EU
L9082EL
L9082EU
A, C
L9440
LV9440
L9444
LV9444
L9453
LV9453
L9456
LV9456
L9457
LV9457
L9485
LV9485
L9486
LV9486
A, B, C
Latchbolt: 100 milligrams minimum at E, 50 milligrams at F Aux latchbolt: 100 milligrams at G Holdback dog: 150 milligrams
at H (viewed from bottom)
L583-019 L583-020 L583-024 L583-029 L583-030 L583-031
L583-025 L583-045 L583-051 L583-345
L583-346 L583-383 L583-386 L583-3787 L283-147 Assembly
NOTE: Parts shown above must be barrel lubricated to obtain an approximate .3 millimeter film thickness prior to assembly.
B
B
A
C
C
C
A
A
A
A
A
C
C
C
F
E
G
H
