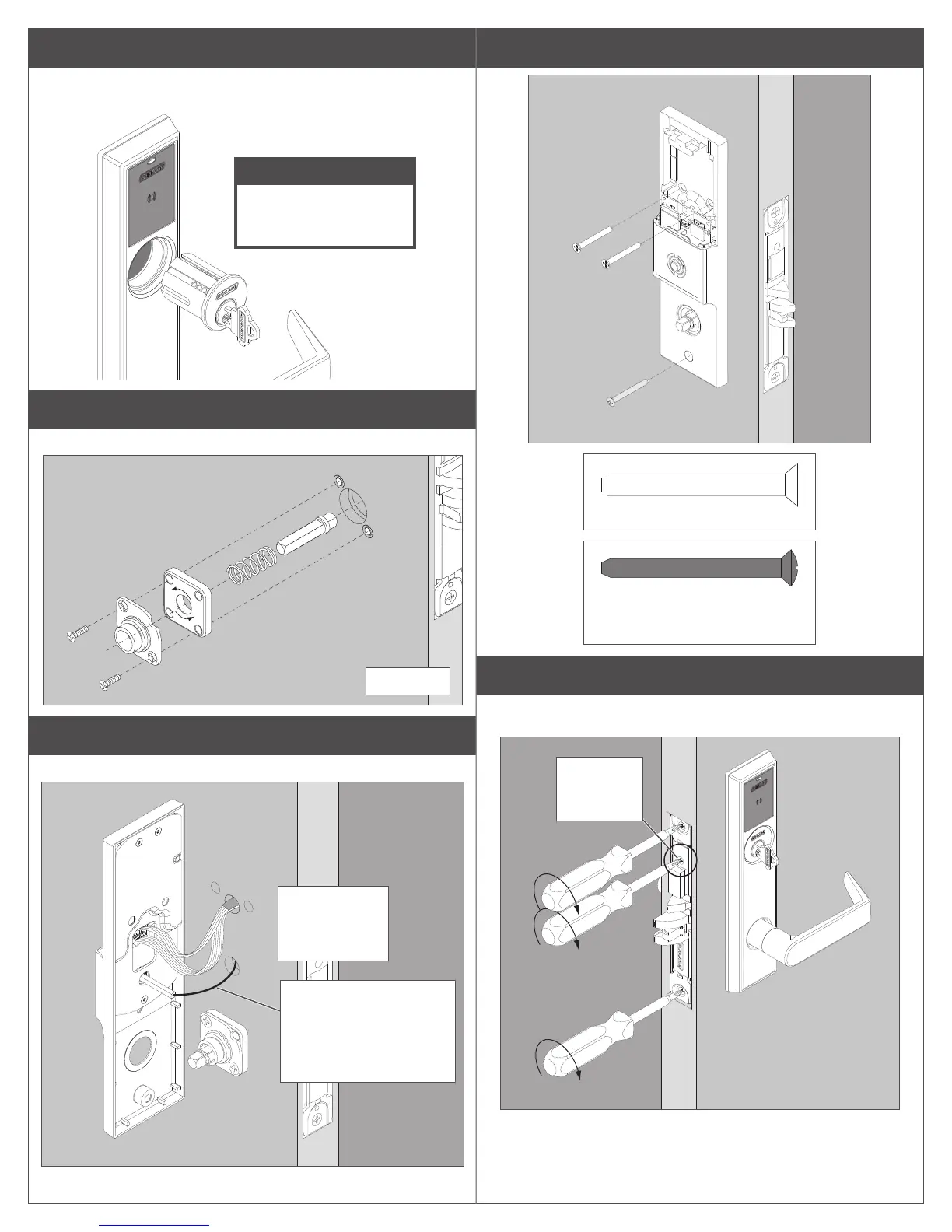

5 Partly install the key cylinder.
Turn key cylinder into the chassis. Tighten just enough to secure outside
trim. Insert key, then pull out one notch to aid with turning.
NOTICE
Do not tighten more than
six full turns! Tighten
fully at step 9!
6 Install inside spindle, spring cage, and mounting plate.
Arrows on the spring cage point in direction of lever down rotation.
INTERIOR
7 Connect the cables to the inside assembly
There are two cables that need to be connected.
Cable slack
should
be folded
downward.
For deadbolt only:
Align driver bar into the
chassis. Thumbturn must
be vertical when deadbolt
is retracted.
8 Install the inside assembly.
Actual Size (2 mounting screws)
Actual Size (bottom screw)
Phillips or T-25 security screw
Black nish
9 Fully tighten the key cylinder and chassis screws.
The cylinder face needs to be ush to the outside escutcheon. Tighten
the cylinder mounting screw.
Cylinder
mounting
screw
