SCHLAPPI ENGINEERING Angle Grinder - Page 7

GRIND - OSCILLATE
GRIND OUT
NO SLIDERS UP
GRIND OUT
ONLY FIRST SLIDER UP
GRIND OUT
FIRST TWO SLIDERS UP
GRIND OUT
FIRST THREE SLIDERS UP
GRIND OUT
ALL FOUR SLIDERS UP

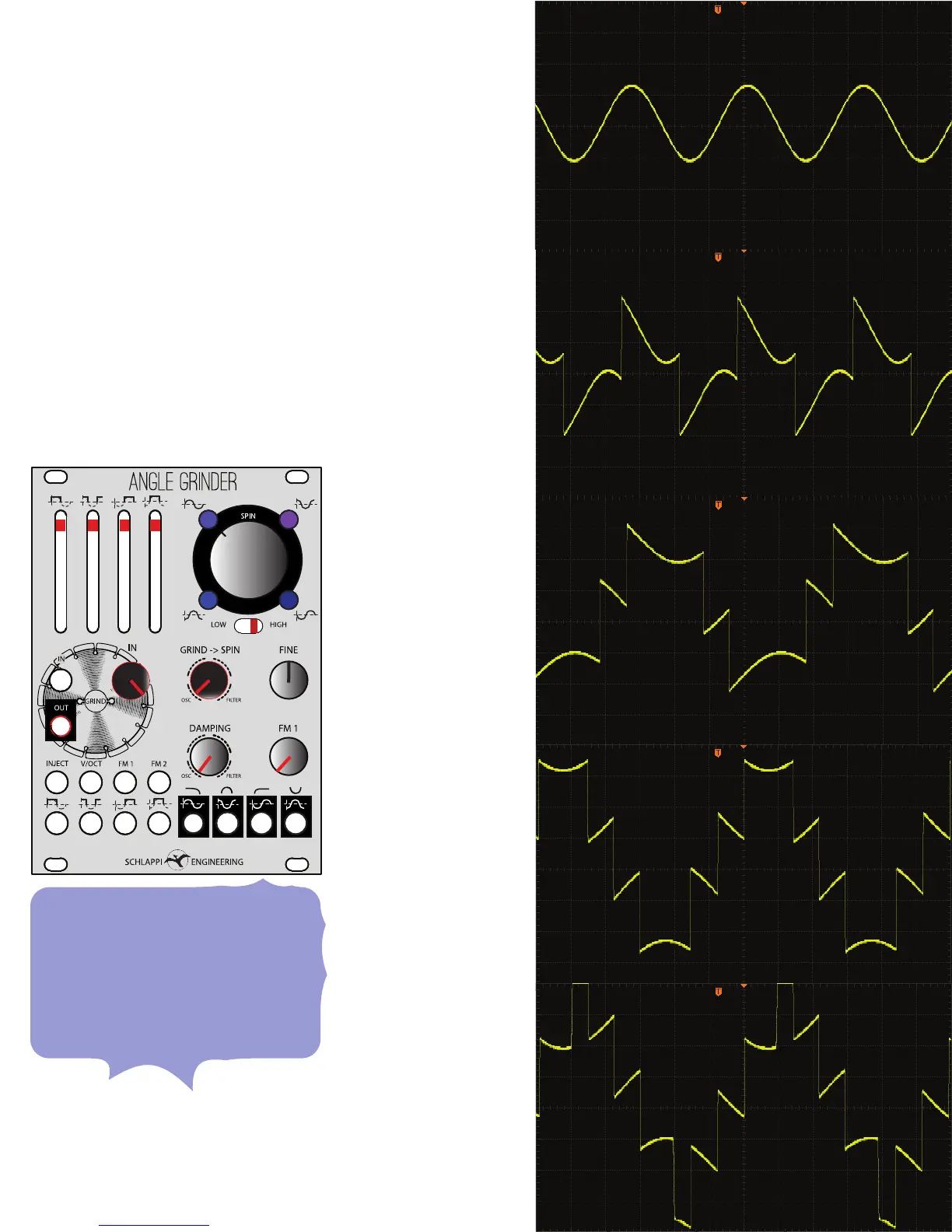

-Same patch as previous page but raising
more than one slider at a time
-Notice how the “one slider up” waveform
is dierent than the one on the previous
page?
-This is because these shots were taken at
a dierent frequency
-As more sliders are brought up we
converge on a pyramidal shape
OSCILLATE
KNOB POSITIONS
IN FULL CW
GRIND -> SPIN FULL CCW
DAMPING FULL CCW
FM 1 FULL CCW
