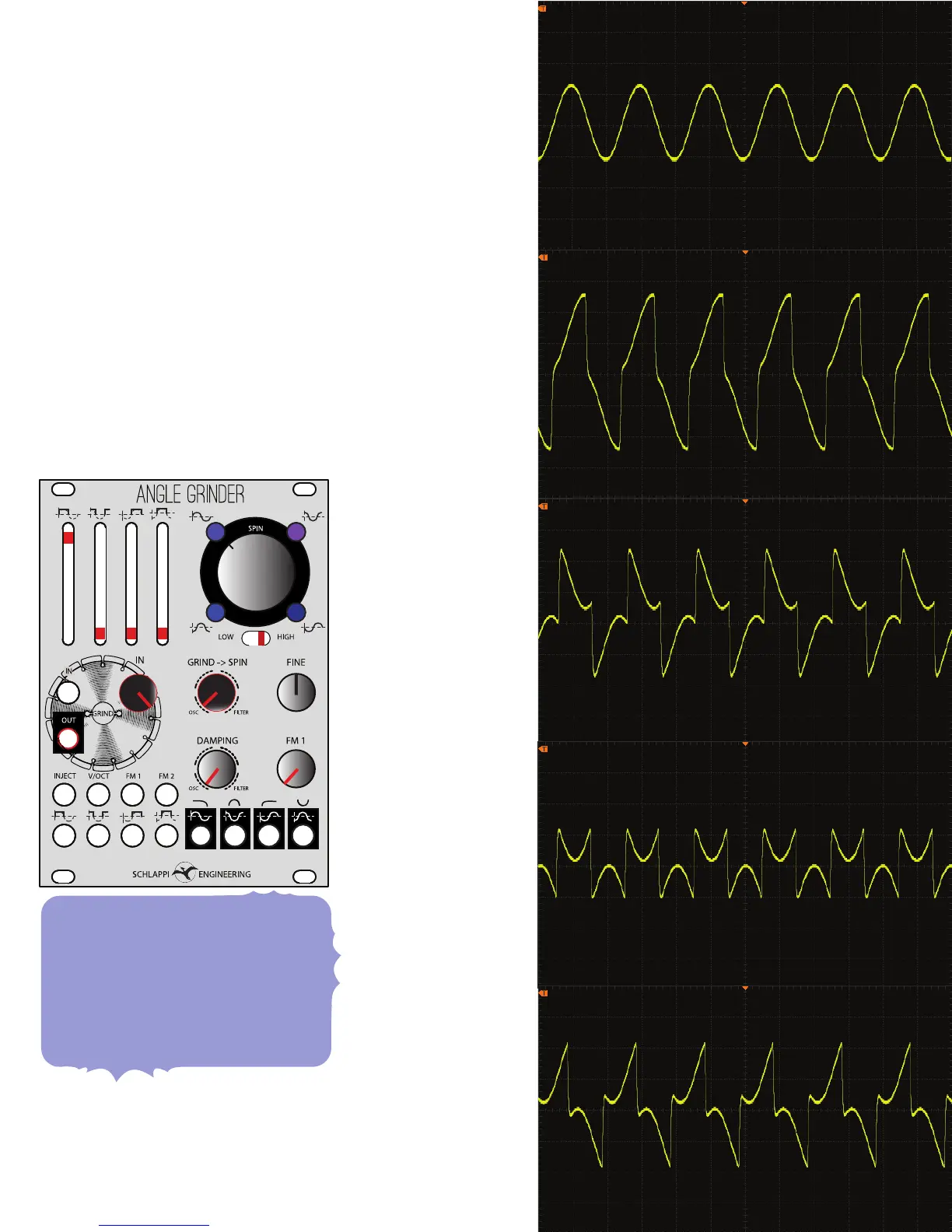

GRIND - OSCILLATE
GRIND OUT
NO SLIDERS UP
GRIND OUT
ONLY FIRST SLIDER UP
GRIND OUT
ONLY SECOND SLIDER UP
GRIND OUT
ONLY THIRD SLIDER UP
GRIND OUT
ONLY FOURTH SLIDER UP
-With GRIND->SPIN and DAMPING fully CCW
-With nothing plugged into the input*
-Turn GRIND IN clockwise to feed the SPIN
section into the GRIND section
-Try listening to the GRIND OUT
and exploring the sliders one at a time
-The 90° output is normalled through an ALL
PASS (phase shift) lter to the GRIND IN
-These oscilloscope traces were taken at 1kHz
but the wave shapes will vary by frequency
-These traces are representative of the
waveforms that you can nd as the outputs
are compared against and subtracted from
the input
OSCILLATE
KNOB POSITIONS
IN FULL CW
GRIND -> SPIN FULL CCW
DAMPING FULL CCW
FM 1 FULL CCW
*you must turn up the GRIND IN
to get any signal out of the GRIND section
