Schmalenberger GmbH + Co. KG
D-72072 Tübingen / Germany
Control box Control NT
Version: 27248 - C
8
Subject to technical changes

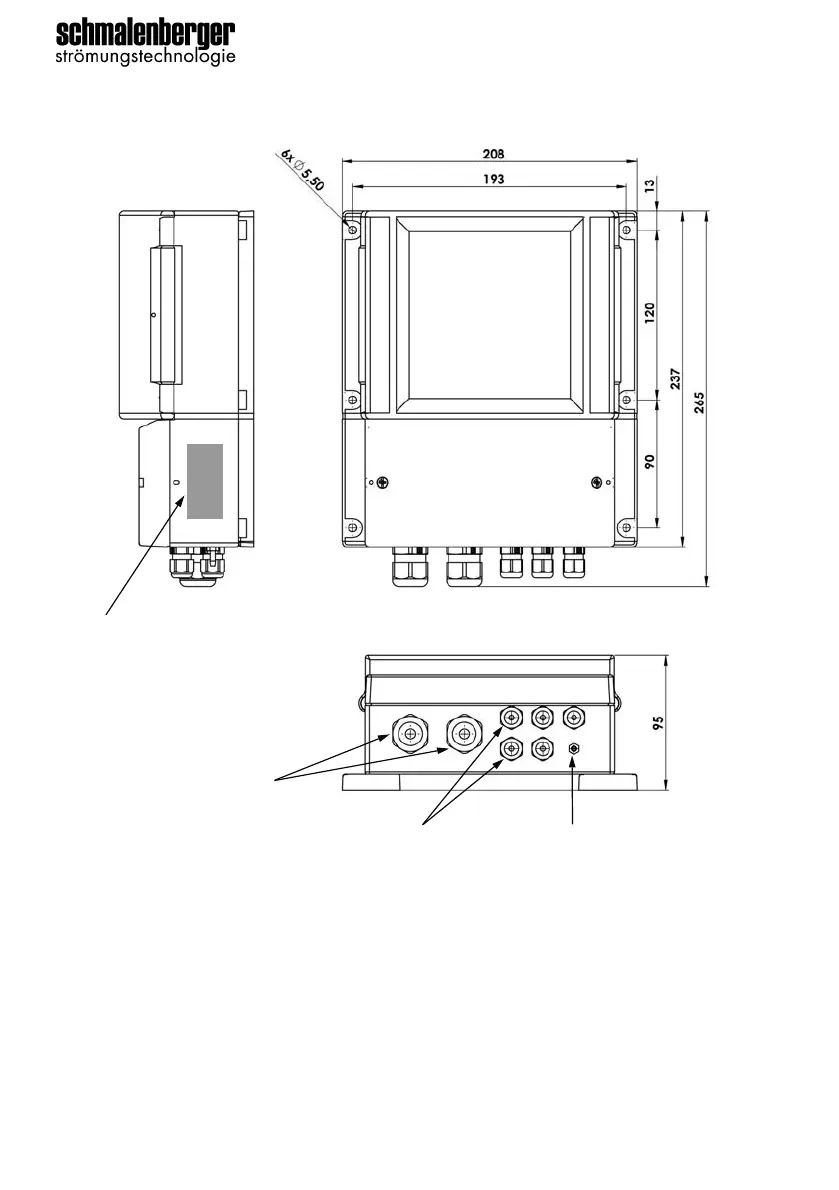

3 Wall Installation with Dimensions
Nameplate
2x cable screw connection
Supply line Mains / Pump
cable ø7-13mm
5x cable screw connection
Feedback and Control line
cable ø3,5-7mm
Plug nippel ø3,6mm
Hose connection
