Elevator positioning system USP 30 / 100

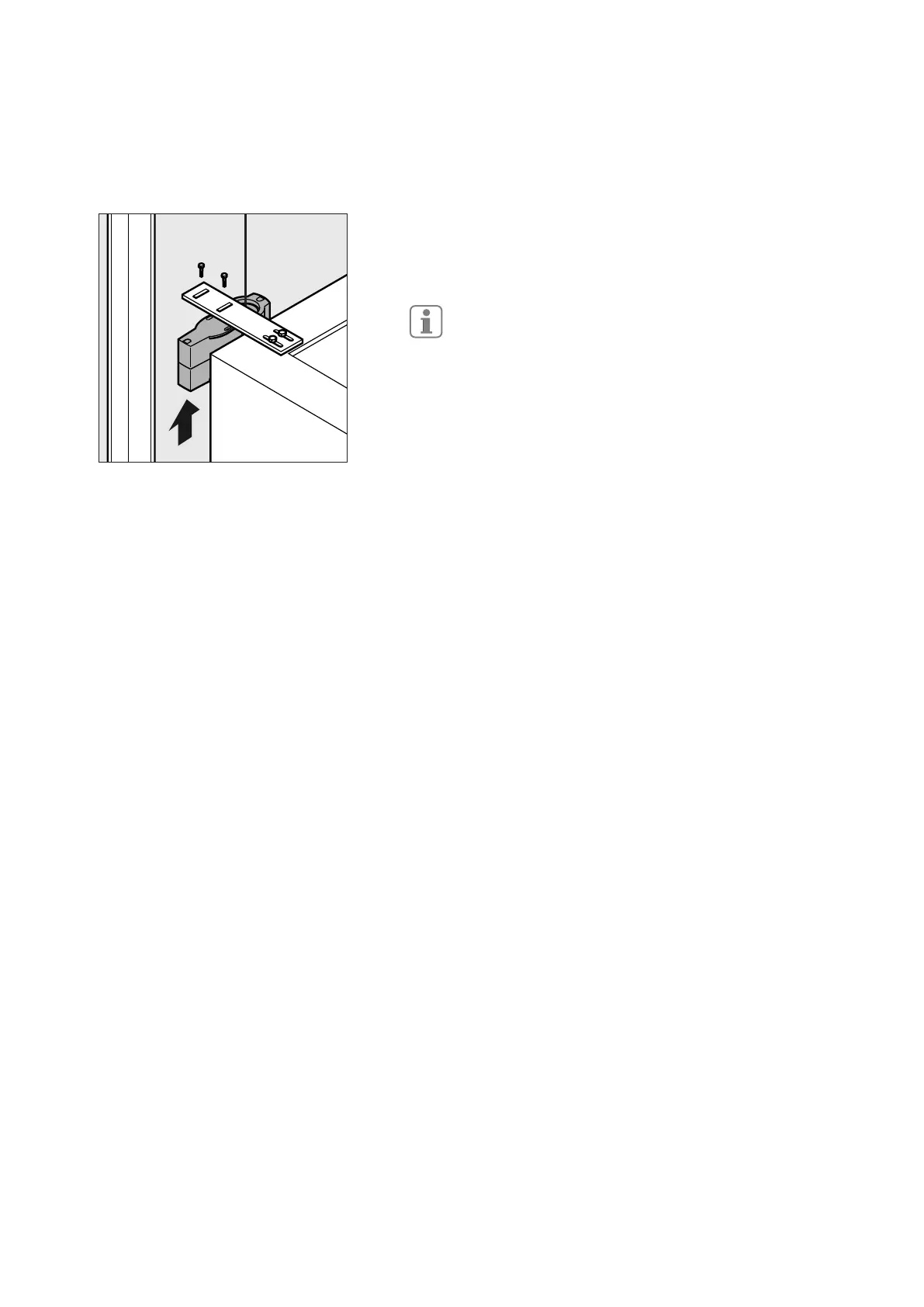

Fix the sender from top or bottom to the retainer. Adjust the
sender in a way that the signal wire finds its way to the middle
of the sender coil.
Connect the round M-12-plug to the sender and apply the sen-
der wire in the termination box to the trailing cable.
The technical data provides the pin assignment
of the plug.
16
