Elevator positioning system USP 30 / 100

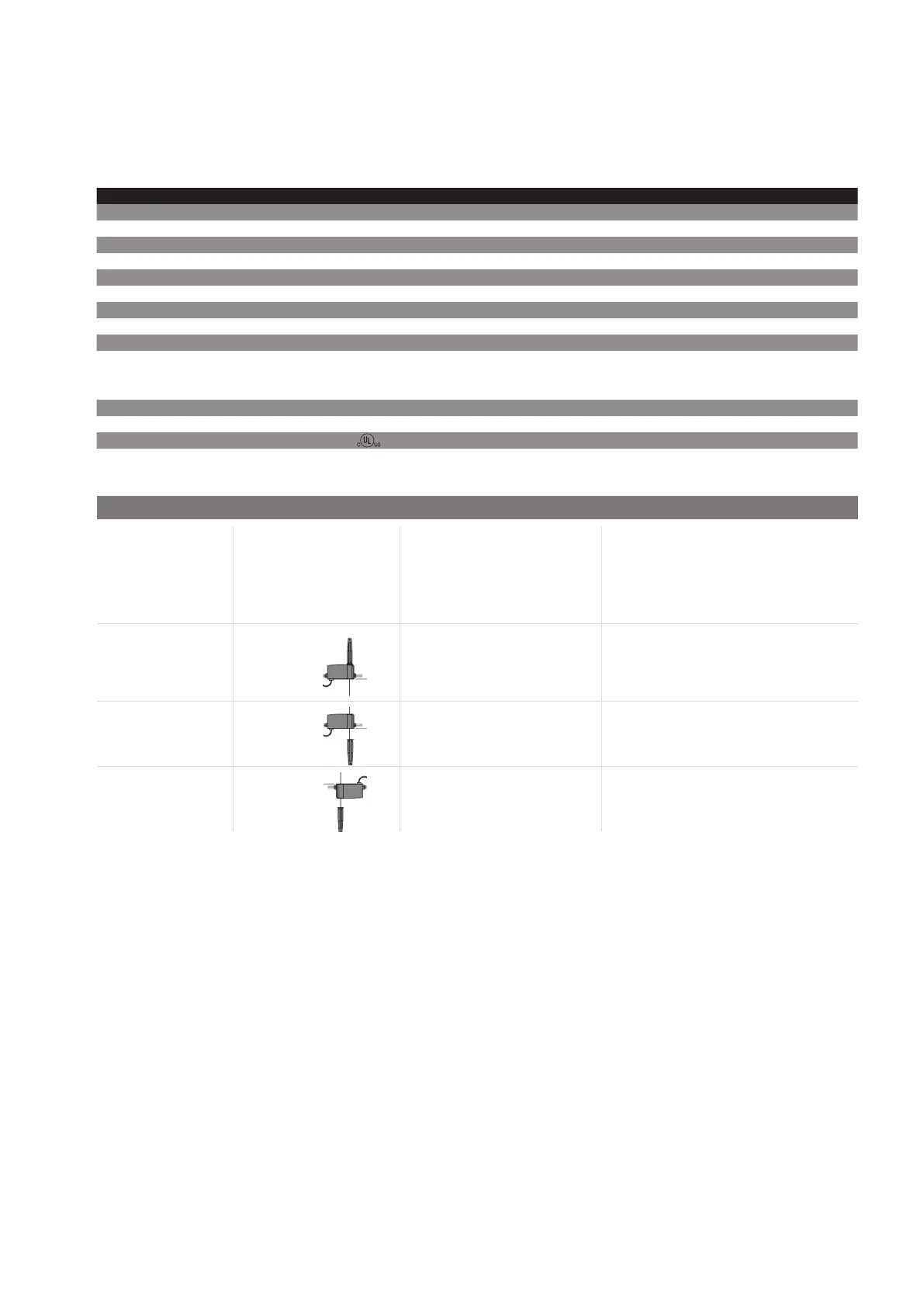

Technical data
Technical data USP 30 USP 100
Repeatability under
normal shaft conditions: +/– 3 mm +/– 1 mm
Repeatability at calibration
temperature: +/– 1 mm +/– 1 mm
Ambient temperature:
–10 °C ... +50 °C –20 °C ... + 60 °C
Maximum travel height: 30 m 130 m
Maximum travel velocity: 2 m/s 8 m/s
Operating voltage: 24 VDC +15 % / –10 %
Rated current: 180 mA
Protection class:
IP40; IP54 with USP-receiver cable IP65.
Please see table “USP overall system protection class” below.
(beware installation position of the SUB-D plug)
EMC emission:
EN 50081-2, EN 12015
EMC immunity: IEC 61000-6-2, EN 12016
Approvals:
USP overall system protection class
location of receiver position of socket USP receiver cable
Standard
Kollmorgen
NEW
Böhnke + Partner
Weber Lifttechnik
USP receiver cable
Standard IP65
Standard IP65 UL
shaft head bottom
IP43 IP54
shaft pit bottom IP43 IP54
shaft pit top IP40 IP54
