6 Connectors and Cables
6.1 DSL Interface
6.1.1 Connector
Connector Type RJ45-8
1 8
Front View

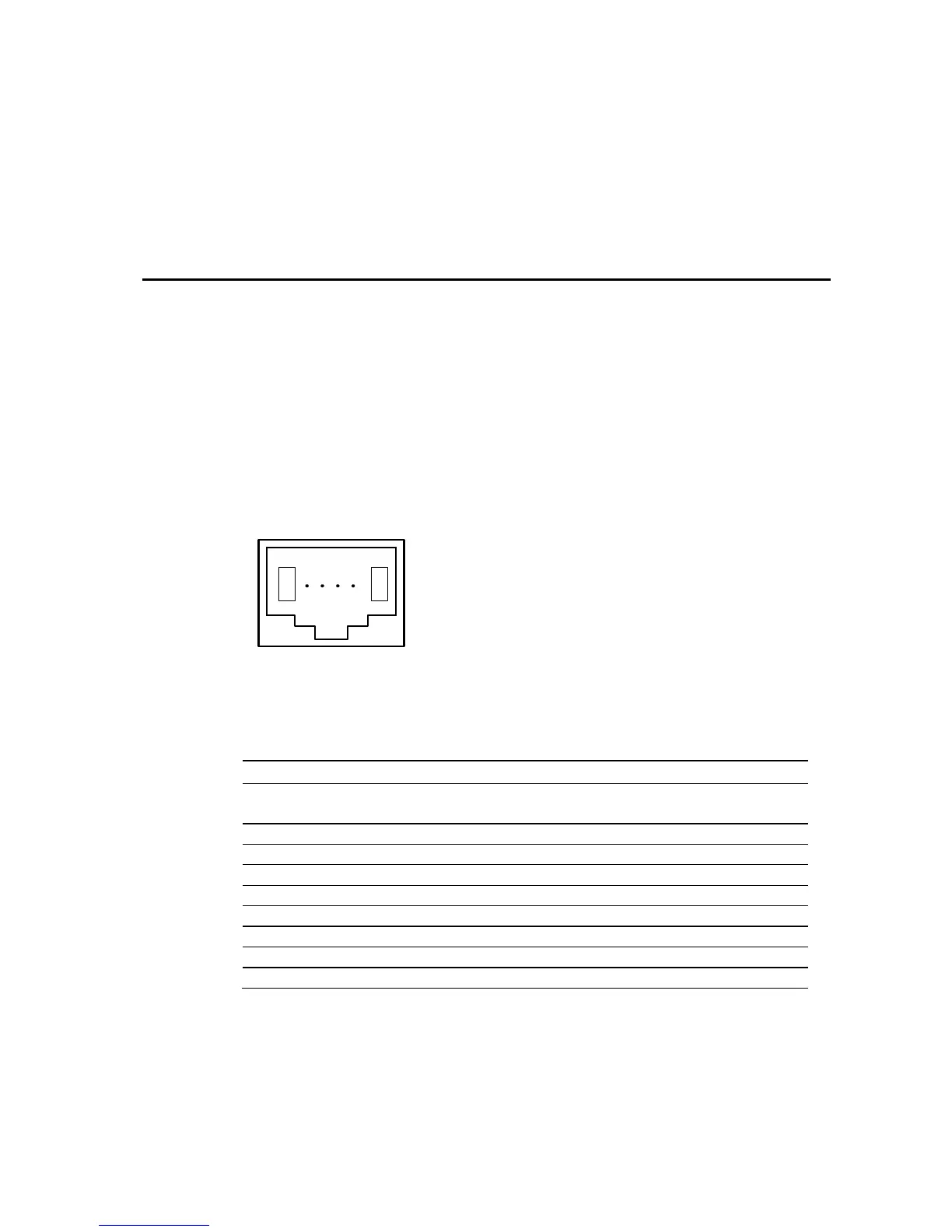

Figure 6-1: DSL Connector
The connector pin assignment is as shown below:
SZ.441.V400 SZ.441.V800
Pin DSL
Port
Sig-
nal
Description DSL
Port
Sig-
nal
Description
1 - - 4 d1 Wire pair d, tip
2 - - 4 d2 Wire pair d, ring
3 2 b1 Wire pair b, tip 2 b1 Wire pair b, tip
4 1 a1 Wire pair a, tip 1 a1 Wire pair a, tip
5 1 a2 Wire pair a, ring 1 a2 Wire pair a, ring
6 2 b2 Wire pair b, ring 2 b2 Wire pair b, ring
7 - - 3 c1 Wire pair c, tip
8 - - 3 c2 Wire pair c, ring
Table 6-1: DSL connector pin assignment
