Instructions for Use – SCHMIDT

®

Flow Sensor SS 20.600 Page 36

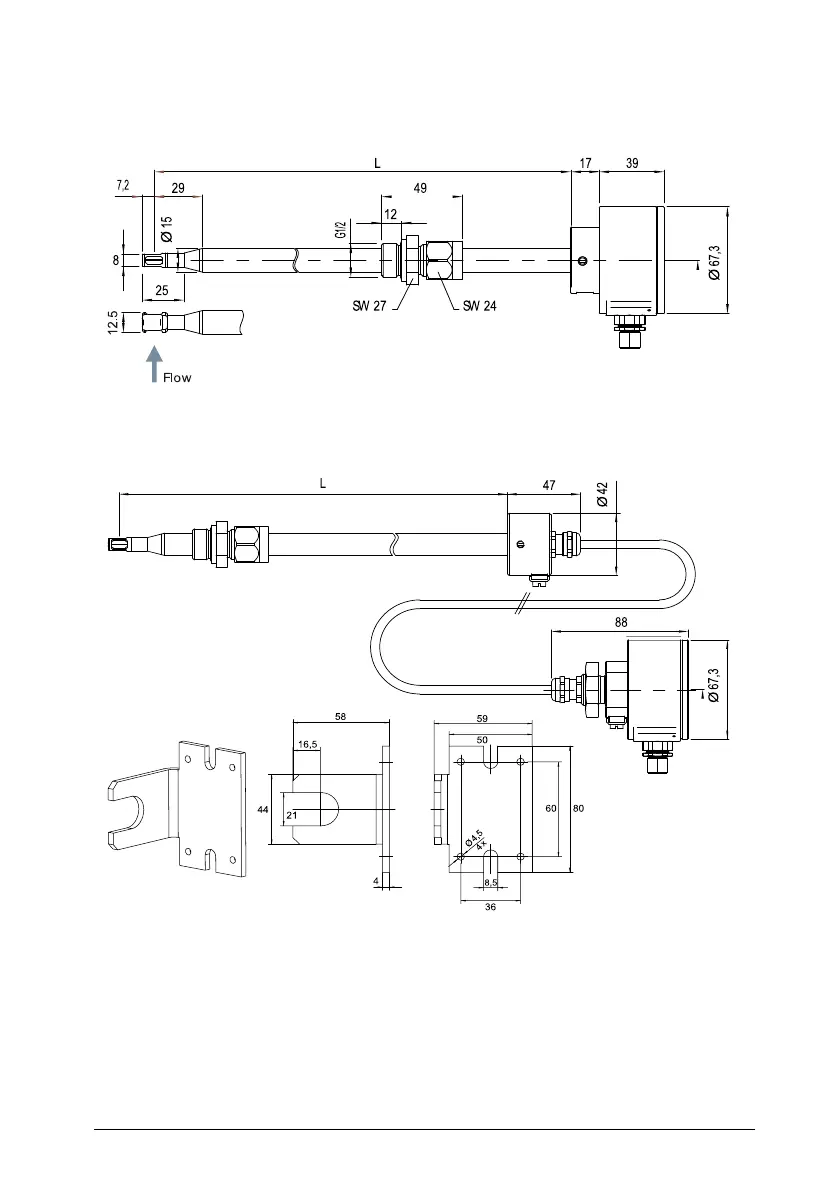

9 Dimensions

Compact sensor

Figure 9-1

Remote sensor including wall mounting bracket

Figure 9-2
