Scholl 27100 - Circuit Diagram Heating Bridge 2-Tier with 6 Heat Lamps

GBA B 1010 0 E
BA Page 28 of 34 April 15, 2016
Last revised 04-2016 Rev. 0
Scholl Apparatebau GmbH & Co.
KG

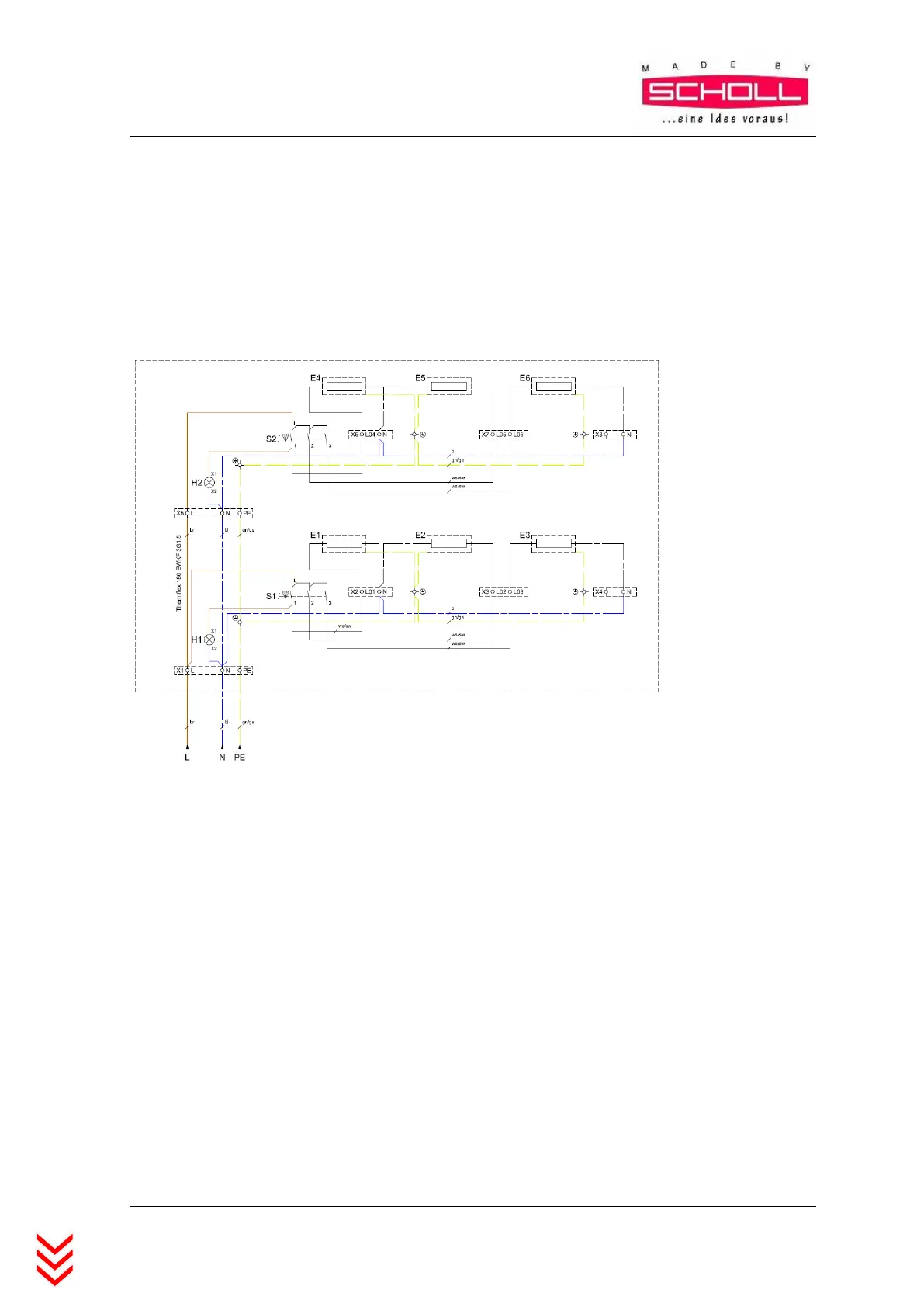

8.3.6 CIRCUIT DIAGRAM HEATING BRIDGE 2-TIER WITH 6 HEAT LAMPS
Model-No. Art. No.
27120/D, /D/HS B 1034, B 1036
27130/D, /D/HS B 1044, B 1046
27140/D, /D/HS B 1054, B 1056
Key:
S1-S2 Step switch
H1-H2 Indicator light
E1-E6 IRK-Halogen-infrared-quartz-radiator
