Installing your appliance
5
GB

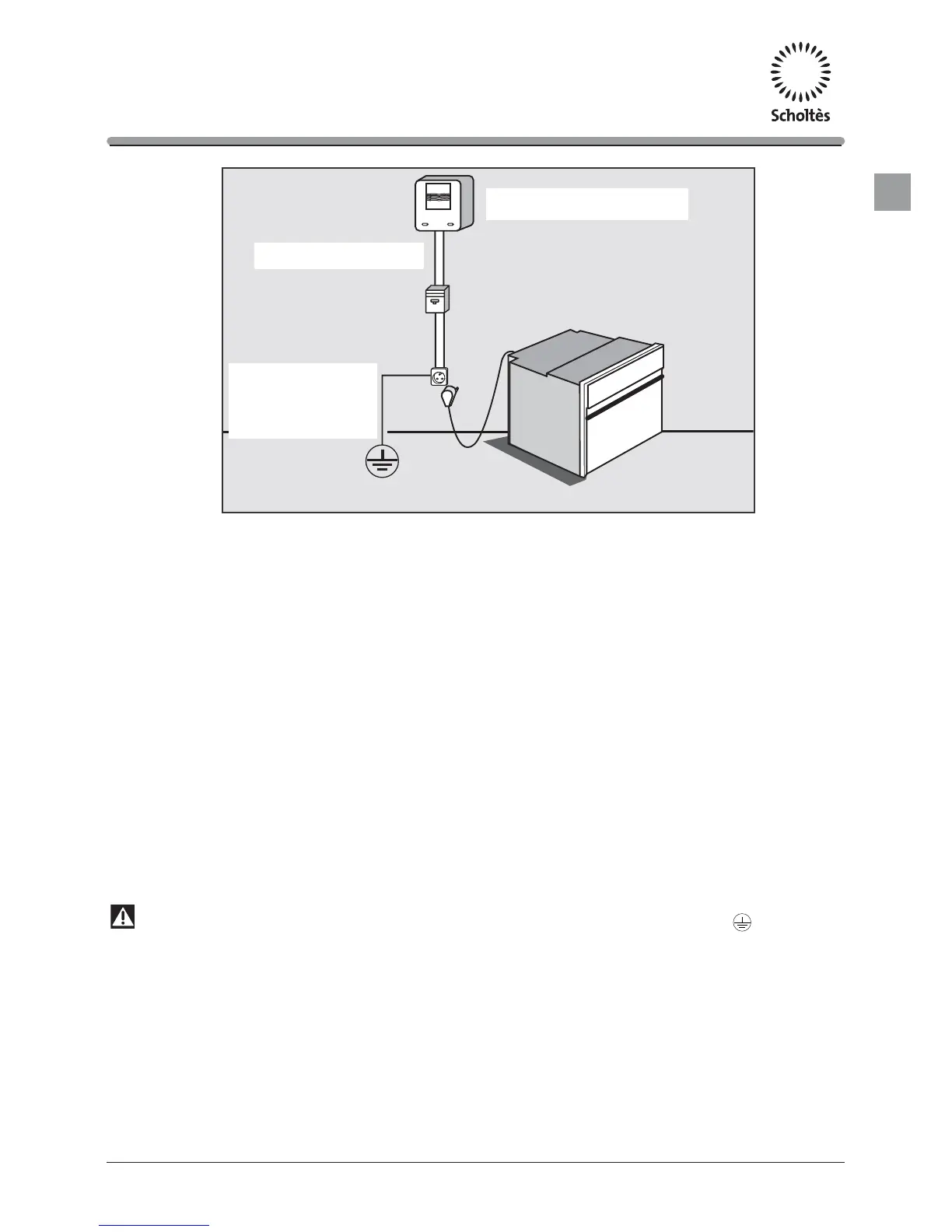

Electrical outlet
2 prong receptacle +earth
CEI Standard 60083
Monophase line 220-240 V
~
Power
supply cable
length 1.50 m approx.
16A fuse or differential
circuit breaker
Electrical safety must be ensured by a correct build-in. During fitting and maintenance oper-
ations, the appliance must be unplugged from the electrical grid; fuses must be switched off
or removed.
The electrical connection should be performed before the appliance is installed in the
cabinet.
Ensure that:
- the electrical installation has sufficient voltage,
- the electrical wires are in good condition
- the diameter of the wires complies with the installation requirements.
Your oven must be connected with a (standardised) power cable with 3 conductors of
1.5mm2 (1 live + 1 neutral + earth) which must be connected to a 220-240V
~
single-phase
grid via the intermediary of a 1 live + 1 neutral + earth CEI 60083 standardised power sock-
et or via an all-pole cut-off device or in compliance with the installation rules.
Warning
The safety wire (green-yellow) is connected to the appliance’s terminal and must
be connected to the ground lead of the electrical set-up.
In the case of connection to an electric wall socket, it must remain accessible after
installation.
The fuse in your set-up must be 16 amperes.
If the power cable is damaged, it must be replaced by the manufacturer, its After-Sales
Service Department or a similarly qualified person to avoid danger.
It must be possible to disconnect the appliance from the power supply, either using a
plug or by fitting a switch on the fixed wiring system in accordance with installation
rules.
ELECTRIC CONNECTION
Monophase 20A Counter
220-240V
~
50Hz
