SCC Fault Isolation Manual 6/03/2020
Page 3 of 11 Rev. 01 9/20/2021

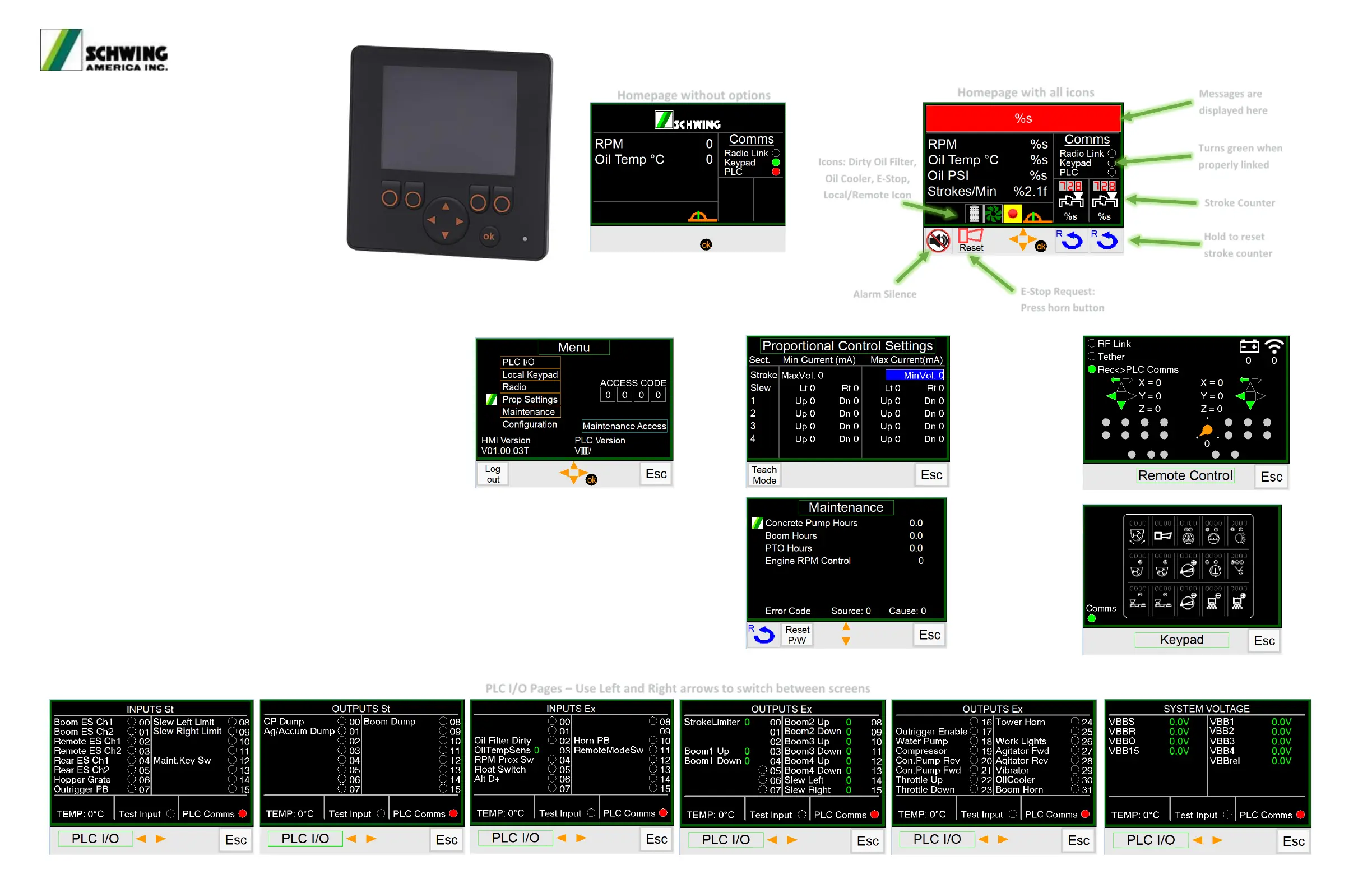

2.8” Display:
• Displays all CPC3 information
• Simple M12 connection behind display
• Turns on with PTO.
• This MUST be programmed before shipping.
Views:
• Home Page
o RPM: Driveshift Speed
o Oil Temp
o Oil PSI (Option)
o Strokes/Min (Option)
o Messages and Errors are displayed at the top
o Comms sections displays link statuses
o Two Stroke Counters with individual resets
• Menu Screen
o Default password is “1234”
• Proportional Control Settings: (See teach mode section below)
o Enables Teach Mode and can reset min/max values to factory reset.
o Viewable without password entered.
• Remote Control Status Screen
• Keypad Status Screen
• Maintenance Screen
o Displays Error messages at the bottom
o Allows resetting of hour meters
• I/O Screen
o Show troubleshooting information for the system
o Shows current voltages and I/O statuses
• Configuration Screen
o Only available at the Factory.
