12
Note: Your machine may not match the image. For reference only.

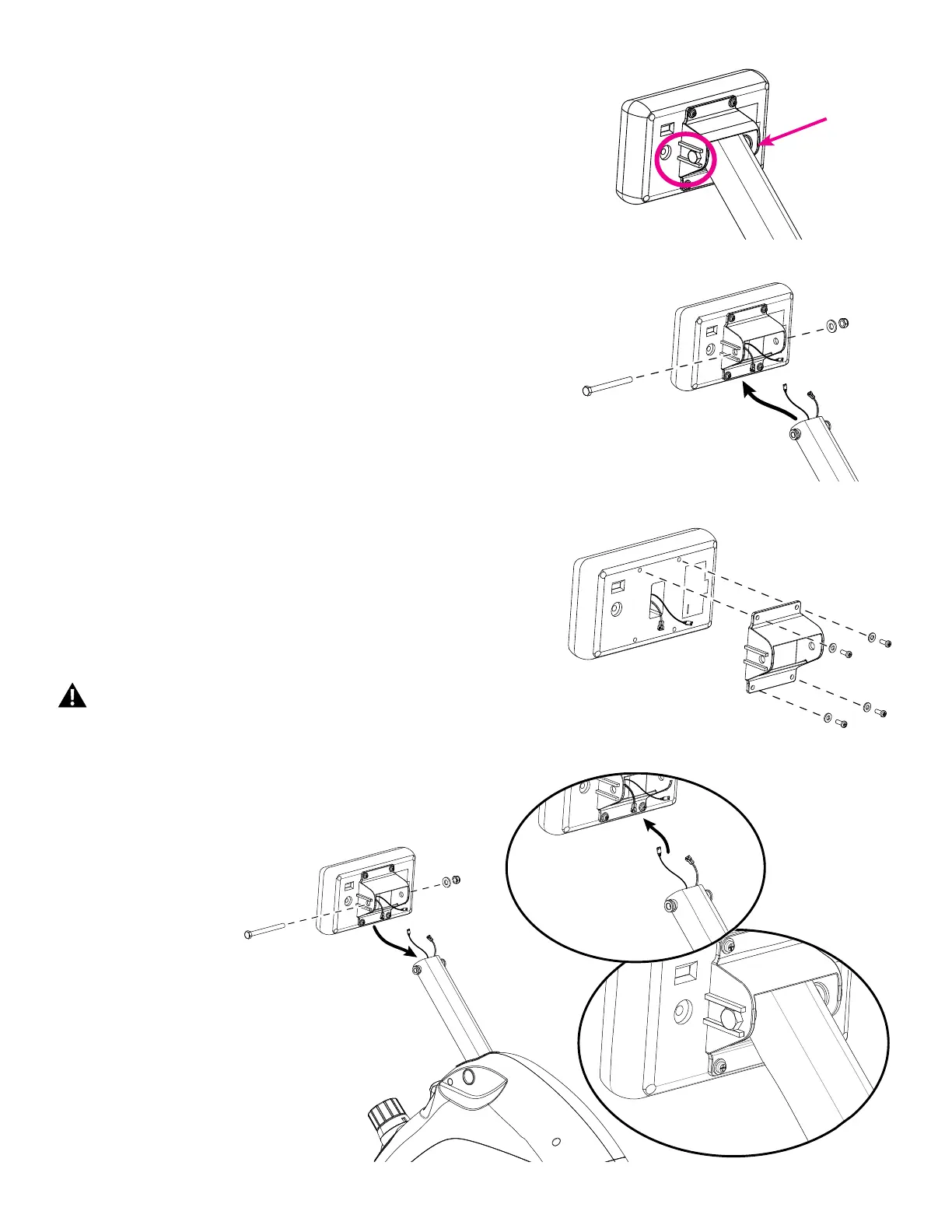

1. Remove hardware (indicated) that attaches Console to the Mast.
Carefully lift the Console off the Mast. Set the hardware safely aside for
reassembly.
2. Disconnect the Data Cable and Heart Rate Cable from the back of the
Console.
Note: Do not let the cables fall down inside the Mast. This step may require
two people.
3. Remove screws that attach Console to the Console Bracket. Carefully
remove the Console Bracket and set it safely aside. Discard the Console
and screws.
NOTICE: Do not crimp the cables.
4. Installation is the reverse procedure.
Note: Be sure the 2 ribs on the Console Bracket are on the right side so
that the opening points downward. Insert the bolt through the hole
betweentheribssothattheatsidesoftheboltheadarealigned
with the ribst.
NOTICE: Do not crimp the cables.
5. Inspect your machine to ensure that all hardware is tight and
components are properly assembled.
Do not use until the machine has been fully assembled and
inspected for correct performance in accordance with the
Owner’s Manual.
