14

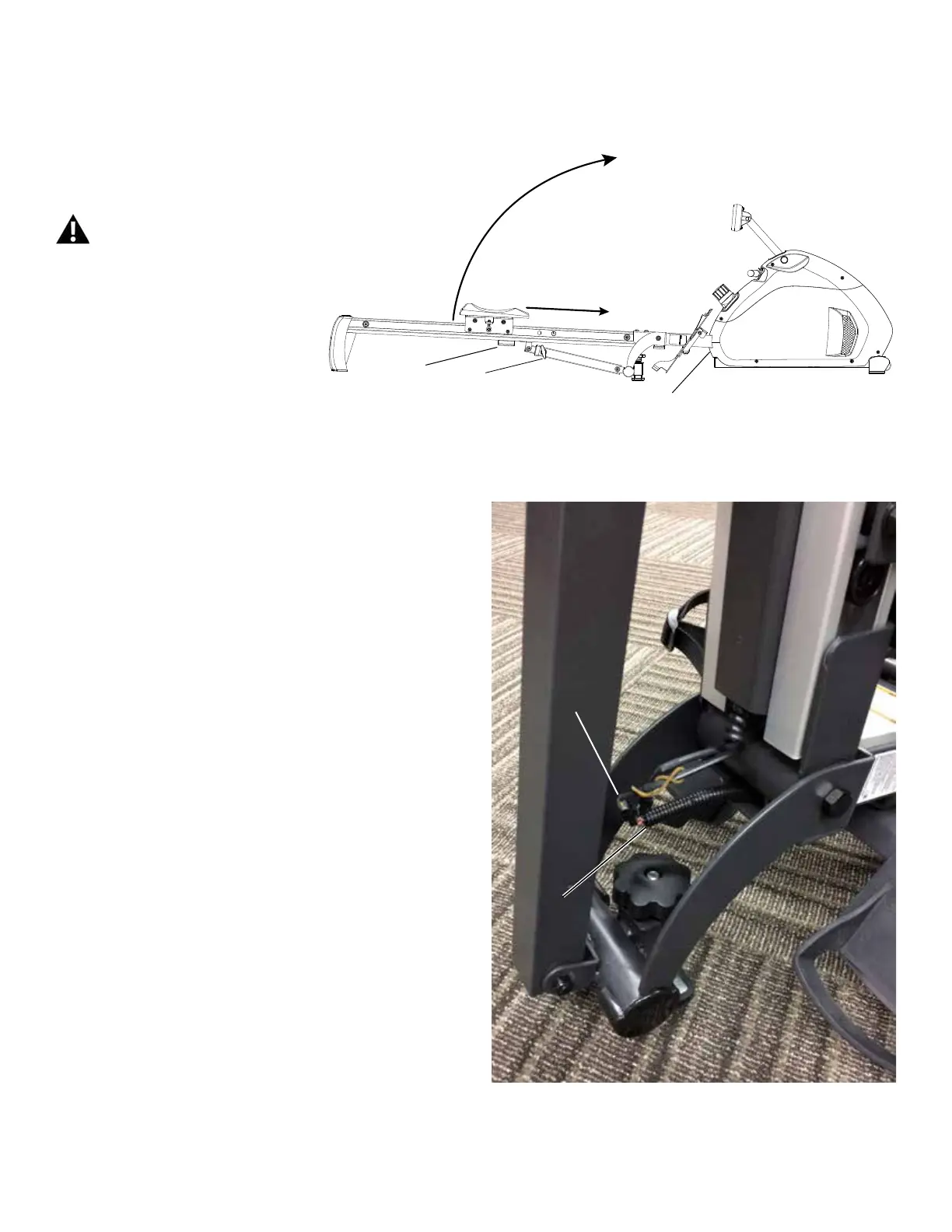

Note: Your machine may not match the image. For reference only.
1. Move the Seat to the front of the Seat Rail.
2. Pull the Seat Rail Locking Pin (M) to release and raise the Seat Rail
Assembly to the folded position. Make sure that you have a secure
grip when raising the Seat Rail Assembly.
Stay clear of the movement path of the Seat Rail
Assembly.
3. Release the Seat Rail Locking Pin (M) to engage the support tube.
You will hear an audible clicking noise. Be sure that the Seat Rail
Locking Pin is fully engaged. If it is not fully engaged, injury to the
user can occur.
4. Observe the cable routing from the Heart Rate (HR) Receiver (A)
to the cables from the Rower Engine (B) on your machine. Carefully
disconnect the HR Receiver cables (C).
NOTICE: Do not crimp any cables.
Tie a string to the end of the cable from the HR Receiver.
M
A
B
C
C
To Next Page
