Note: Your machine may not match the image. For reference only.

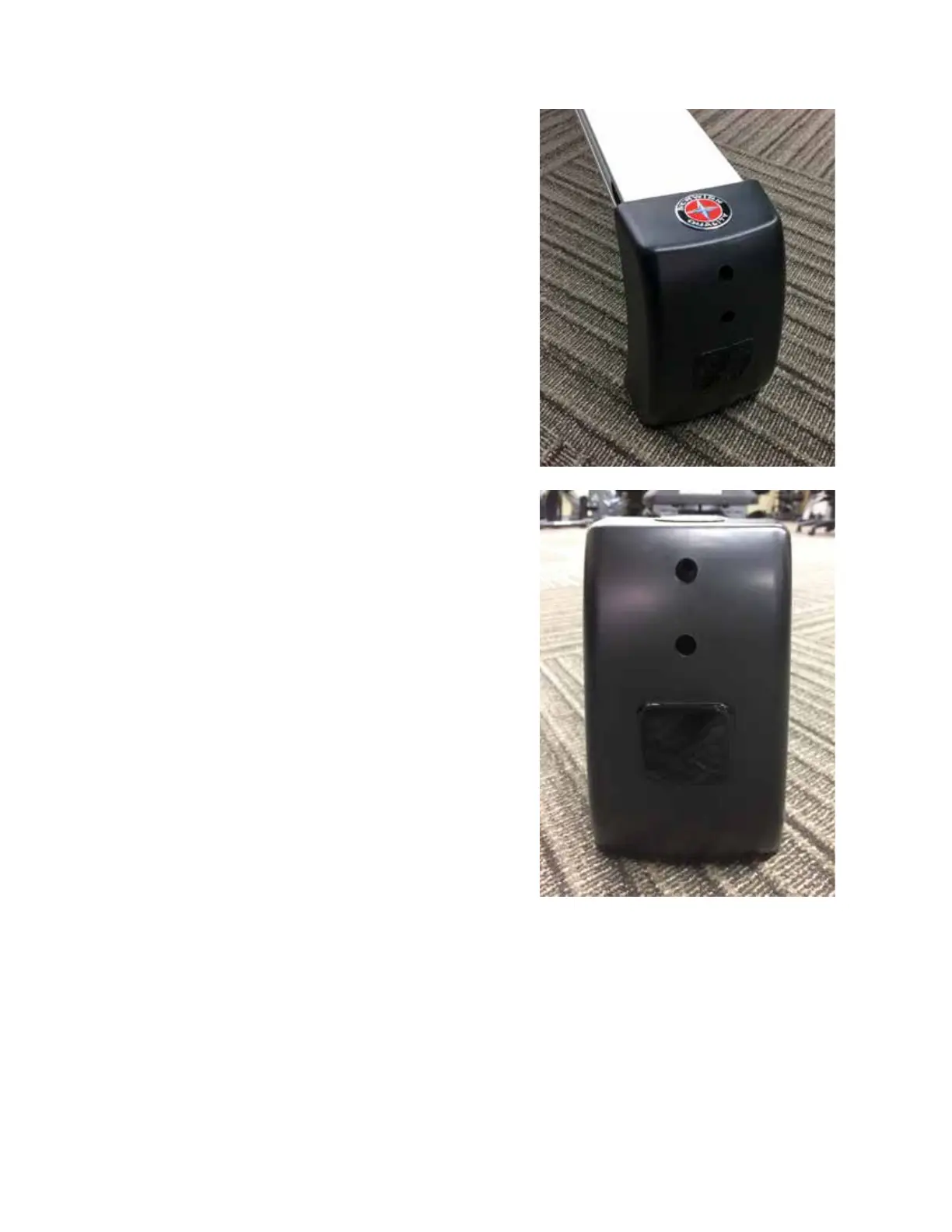

1. Remove the Schwinn
™
Quality Seal sticker on the Rear Cover to ex-
pose the top screw. Remove the screw and set it safely aside.
2. Remove the 2 end screws from the Rear Cover. Set them safely aside.
