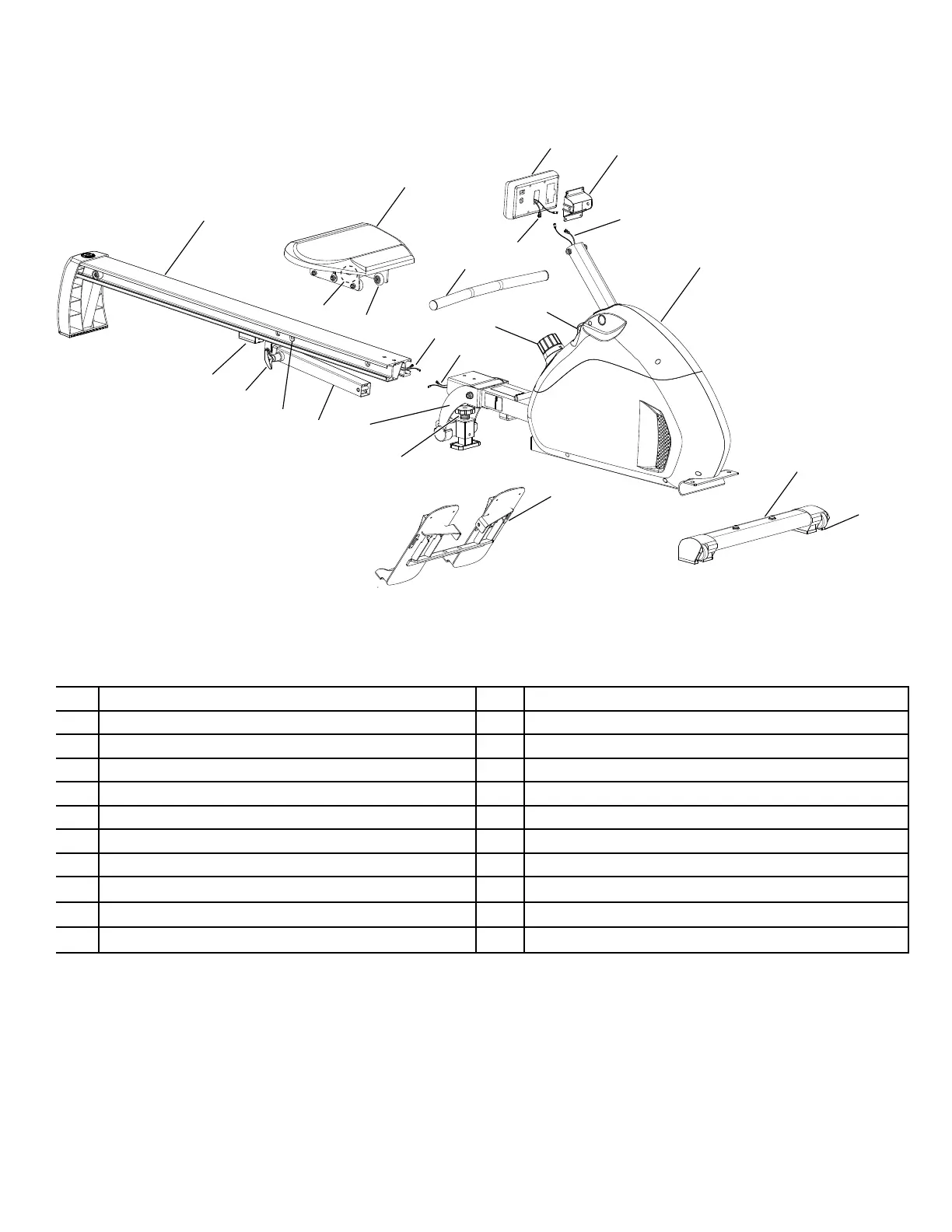

Schwinn Crewmaster - Parts Identification; Component List

7
Maintenance Parts
A Console L Storage Support Tube (Lift Handle)
B Console cables M Seat Rail Locking Pin
C Data Cables, Main Unit N Foot Plate
D Rower engine O Seat Assembly
E Stabilizer, Front P Seat Rollers
F Transport Wheel Q RPM Sensor Magnet
G Pull Strap R RPM Sensor Assembly
H Handle S Data Cables, Seat Rail
I Resistance Adjustment Knob T Console Bracket
J Level Adjustment Knob U Telemetric Heart Rate (HR) Receiver
K Seat Rail Assembly V Support Plates
D
E
N
K
O
A
T
H
M
R
L
Q
P
V
C
F
G
I
S
C
B
U
J
